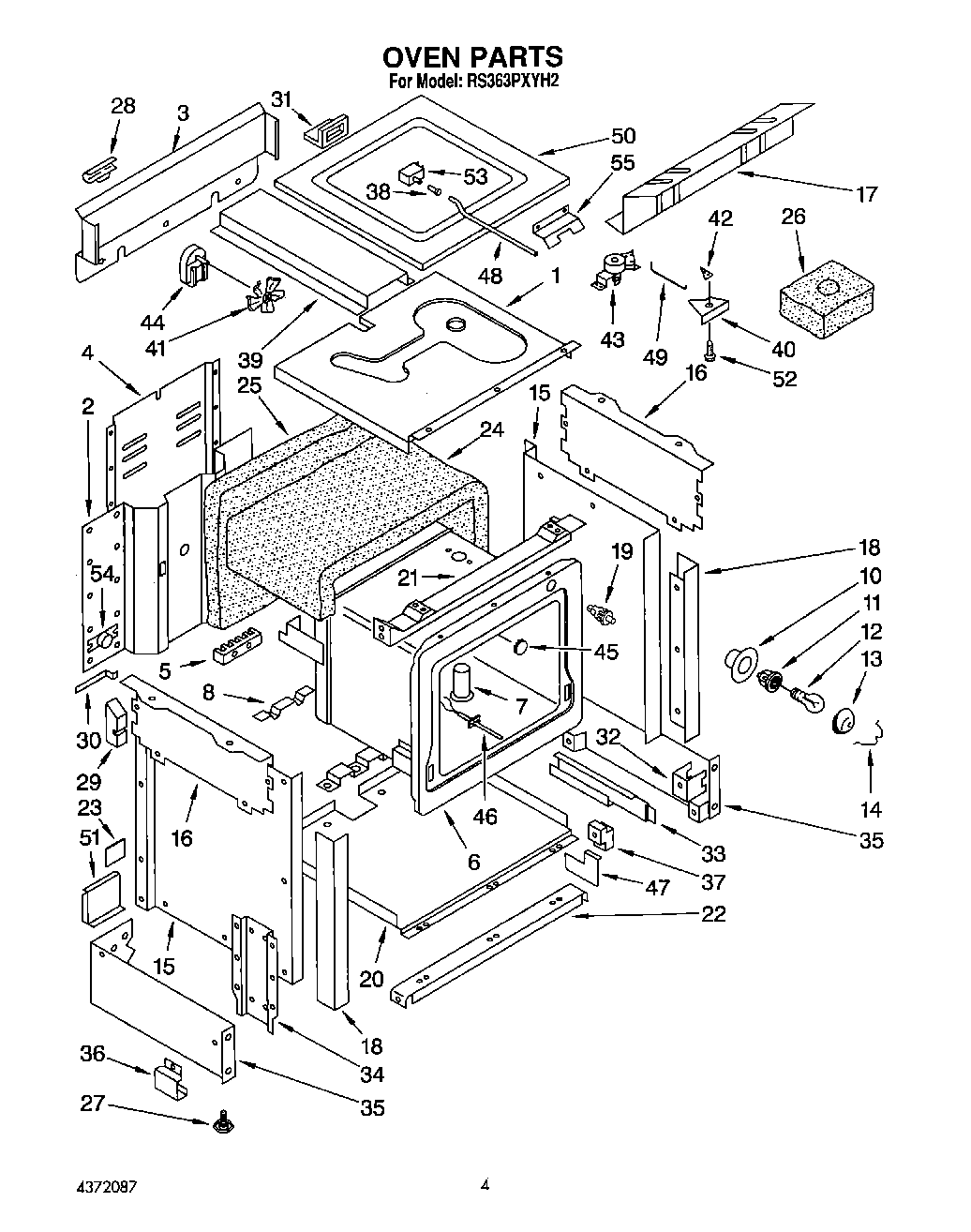

| 1 | Retainer, Top |
| 2 | Panel, Rear (lower) |
| 3 | Panel, Rear (upper) |
| 4 | Cover, Back |
| 5 | WP8203546 Whirlpool Terminal Block |
| 6 | Liner, Oven |
| 7 | Tube, Vent |
| 8 | Panel, Bottom |
| 10 | Housing, Oven Light |
| 11 | W10856866 Whirlpool Light Socket |
| 12 | RANGE ONLY 40W 120V APPL BULB |
| 13 | Lens, Light |
| 14 | Retainer, Lens |
| 15 | Retainer, Insulation (2) |
| 16 | Panel, Side (2) |
| 17 | Shield, Wire |
| 18 | Trim, Oven Front (2) |
| 19 | Switch, Door |
| 20 | Shield, Bottom Insulation |
| 21 | Bracket, Cooktop |
| 22 | Channel, Oven |
| 23 | Plate, Filler (2) |
| 24 | Insulation, Oven Wrap |
| 25 | Insulation, Oven Back |
| 26 | Insulation, Baffle |
| 27 | Screw, Leveling (4) |
| 28 | Bracket, Hinge Support |
| 29 | Counterweight (2) |
| 30 | Retainer, Weight |
| 31 | Bracket, Latch |
| 32 | Spacer (2) |
| 33 | Rail, Drawer (R.H.) |
| 33 | Rail, Drawer (L.H.) |
| 34 | Support, Front (2) |
| 35 | Panel, Lower Side (L.H.) |
| 35 | Panel, Lower Side (R.H.) |
| 36 | Shield, Toe |
| 37 | Guide, Front (2) |
| 38 | Cap, Push Rod |
| 39 | Channel, Duct |
| 40 | Base, Latch Motor |
| 41 | Blade, Fan |
| 42 | Lever, Lock |
| 43 | Motor, Latch |
| 44 | Motor, Fan |
| 45 | Button, Plug 3/4`` (2) |
| 46 | Probe, 3`` |
| 47 | Retainer, Door |
| 48 | Rod, Push |
| 49 | Bar, Tie |
| 50 | Panel, Sub-Top |
| 51 | WPL 4371333 |
| 52 | Stud, Latch |
| 53 | WP8283288 Whirlpool Door Switch |
| 54 | Switch, Thermo Cut-Off |
| 55 | Shield, Heat |
| 55 | Anti-tip Kit |
