RS363PXYH2 04 – SECTION

Products

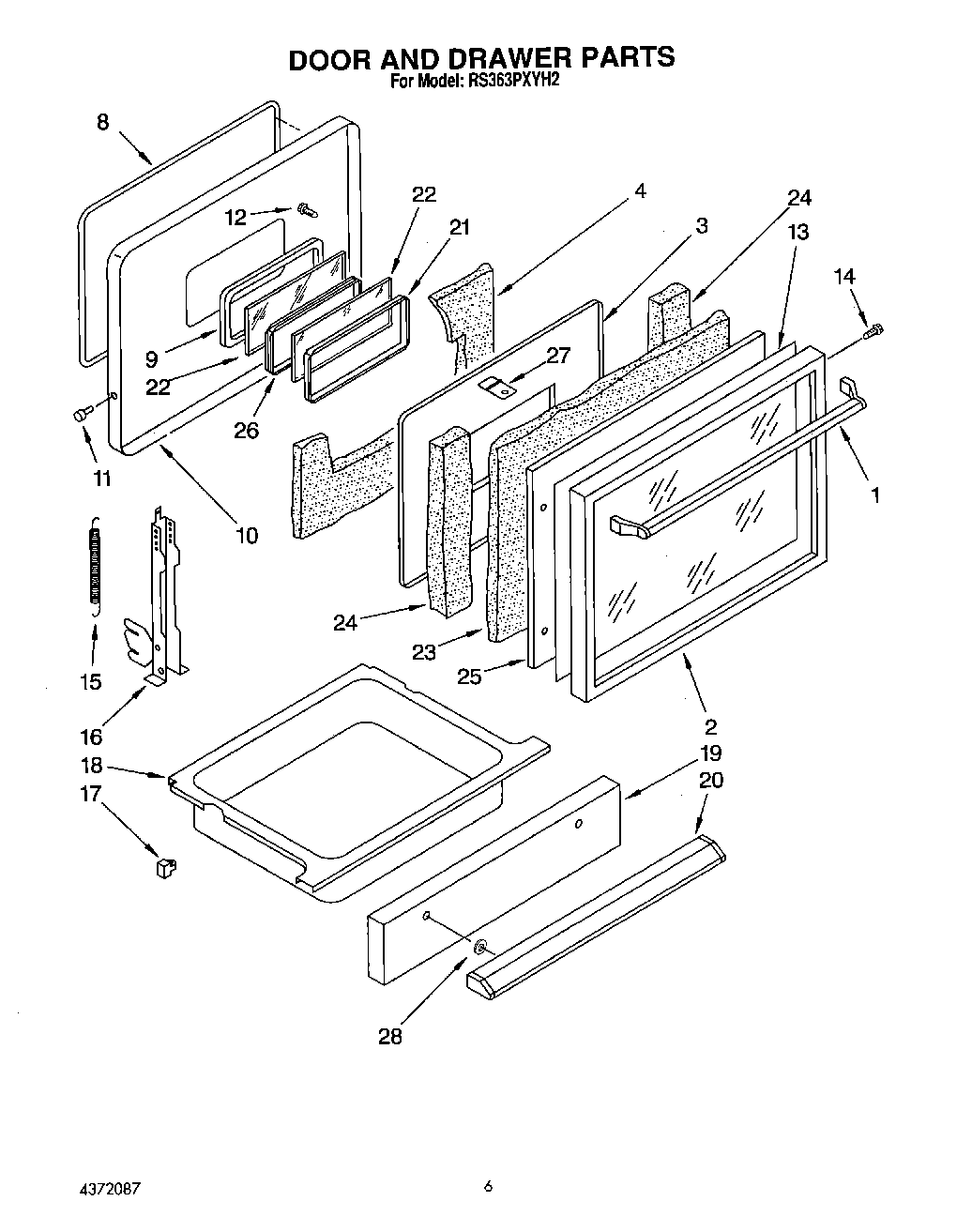

PositionProduct
1Handle, Door
2Frame, Door
3Liner, Door
4Insulation
8Seal, Oven Door
9Seal, Glass
10Baffle, Door
11Plug Button 3/16“ (2)
12Screw, 10-24 x 5/8
13Glass, Outer
14Screw, Handle (4)
15Spring, Door (2)
16Assy, Door Hinge (R.H.)
17Guide (2)
18Drawer
19Panel, Drawer
20Handle, Utility Drawer
21Collar, Glass
22Glass, Heat Barrier (2)
23Insulation
24Insulation (2)
25Panel, Insulation
26Spacer, Glass
27Strike
28Spacer, Handle (2)
