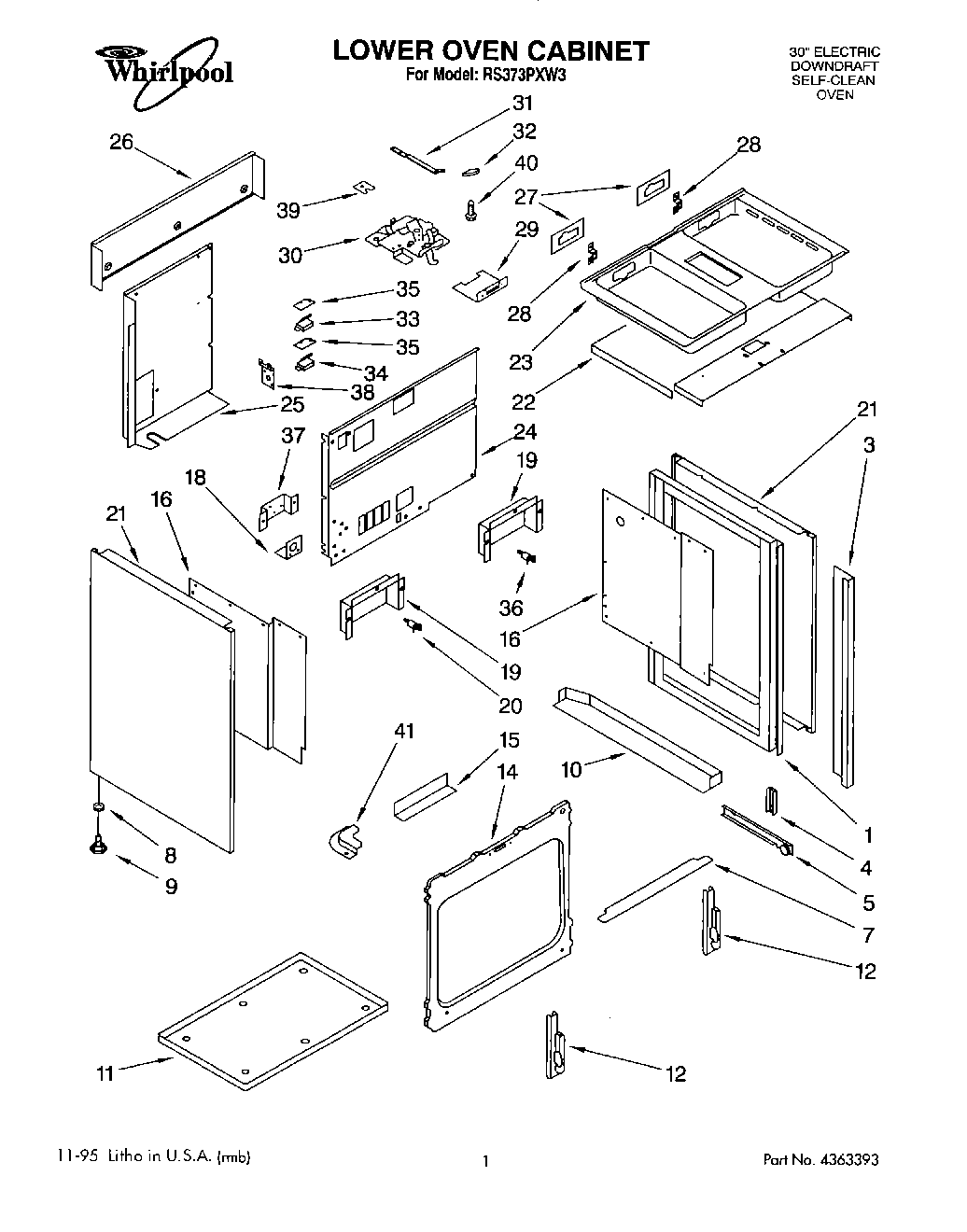

RS373PXW3 01 – LOWER OVEN CABINET

Products

Position	Product
1	Frame, Side (Left Side)
1	Frame, Side (Right Side)
3	Trim, Panel Side
4	Support, Drawer
5	Track Drawer (L.H.)
5	Track Drawer (R.H.)
7	Filler, Front Frame
8	Nut (4)
9	Leg, Leveling (4)
10	Brace, Bottom (R.H.)
10	Brace, Bottom (L.H.)
11	Heat Shield, Drawer
12	Hinge, Oven Door (R.H.)
12	Hinge, Oven Door (L.H.)
14	Front Frame (Not Serviceable)
15	Heat Shield, Clock
16	Retainer, Insulation Side (R.H.)
16	Retainer, Insulation Side (L.H.)
18	Bracket, Conduit
19	Cover, P.C. Board
20	Support, Circuit Board (4)
21	Panel, Side (R.H.)
21	Panel, Side (L.H.)
22	Retainer, Top
23	Burner Box
24	Retainer, Rear Insulation
25	Cover, Wire Rear
26	Shield, Rear
27	Mounting Plate, Plug Block
28	Bracket, Plug Block Mounting
29	Bracket, Mounting Latch
30	Latch, Oven Door
31	Latch Arm
32	Knob Latch
33	Switch, Fan
34	Switch, Oven Door Latch
35	Insulator, Switch
36	Support, Board
37	Bracket, Terminal Board
38	Bracket, Switch
39	Cover, Latch
40	WPW10068250 Whirlpool Dishwasher Screw
41	Bracket
