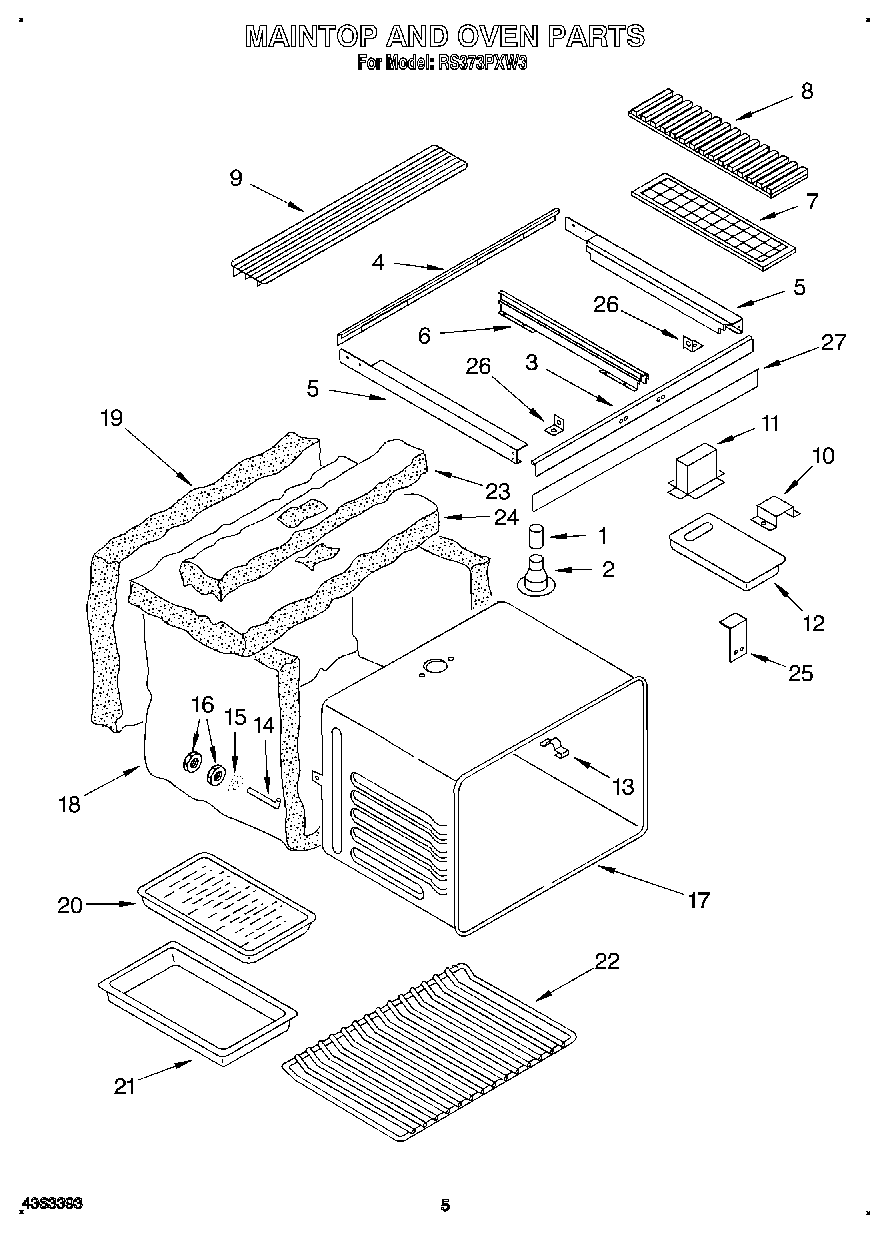

RS373PXW3 03 – MAINTOP AND OVEN

Products

PositionProduct
1Extension, Vent Tube
2Eliminator, Smoke
3Frame, Maintop Front
4Frame, Maintop Rear
5Frame, Maintop (L.H. Side)
5Frame, Maintop (R.H. Side)
5Frame, Maintop (Trim, Chrome (2))
6Frame, Maintop Center
7Filter
8Cover, Vent
9Backrail, Lo
10Bracket, Flue Support
11Flue Box, Rear
12Flue Box
13Clip, Thermo-Bulb
14Hook Bolt, Oven Shell
15Washer
16Nut, Hex 10-32
17Oven Shell
18Insulation, Wrapper
19Insulation, Back
20Grid, Broiler
21Pan, Broiler
22Rack, Oven (2)
23Insulation, Door Latch
24Insulation, Top
25Bracket, Vent Support
26Bracket, Frame Trim
27Support, Maintop (Rear)
27Support, Maintop (Front)
