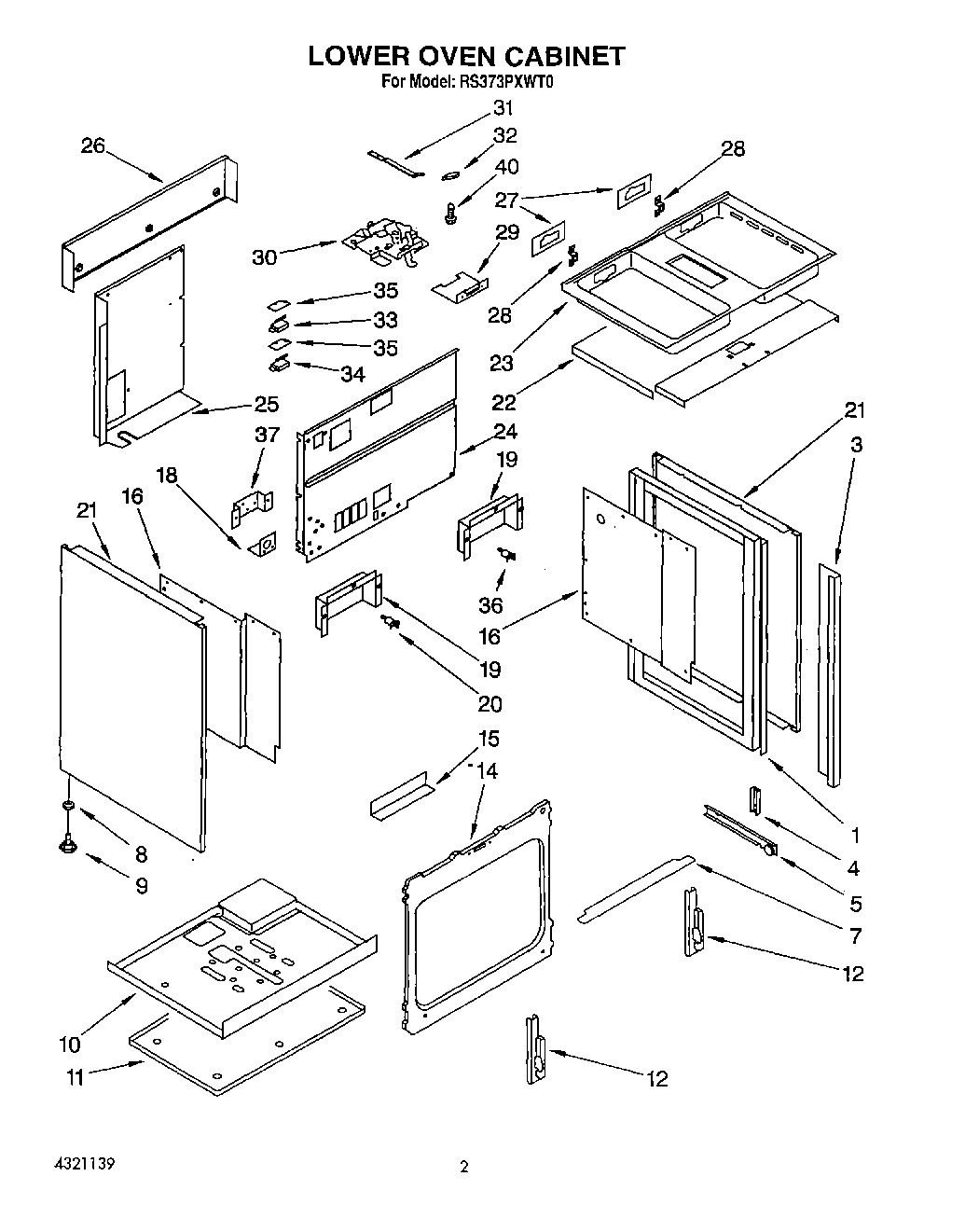

RS373PXWT0 02 – LOWER OVEN CABINET

Products

Position	Product
1	Frame, Side (Right Side)
1	Frame, Side (Left Side)
3	Trim, Panel Side
4	Support, Drawer
5	Track Drawer (R.H.)
5	Track Drawer (L.H.)
7	Filler, Front Frame
8	Nut (4)
9	Leg, Leveling (4)
10	Retainer, Bottom
11	Heat Shield, Drawer
12	Hinge, Oven Door (R.H.)
12	Hinge, Oven Door (L.H.)
14	Screw, 10-32 X 1/2 (1)
15	Heat Shield, Clock
16	Retainer, Insulation Side (L.H.)
16	Retainer, Insulation Side (R.H.)
18	Bracket, Conduit
19	Cover, P.C. Board
20	Support, Circuit Board (4)
21	Panel, Side (L.H.)
21	Burner Box
21	White
21	Panel, Rear
21	Handle, Latch
21	Panel, End (2) (Almond)
22	Retainer, Top
23	Burner Box
24	Retainer, Rear Insulation
25	Cover, Wire Rear
26	Shield, Rear
27	Mounting Plate, Plug Block
28	Bracket, Plug Block Mounting
29	Bracket, Mounting Latch
30	Latch, Oven Door
31	Latch Arm
32	Knob Latch
33	Switch, Fan
34	Switch, Oven Door Latch
35	Insulator, Switch
36	Support, Board
37	Bracket, Switch
37	Bracket, Terminal Board
37	Bracket, Self-Clean
40	WPW10068250 Whirlpool Dishwasher Screw
