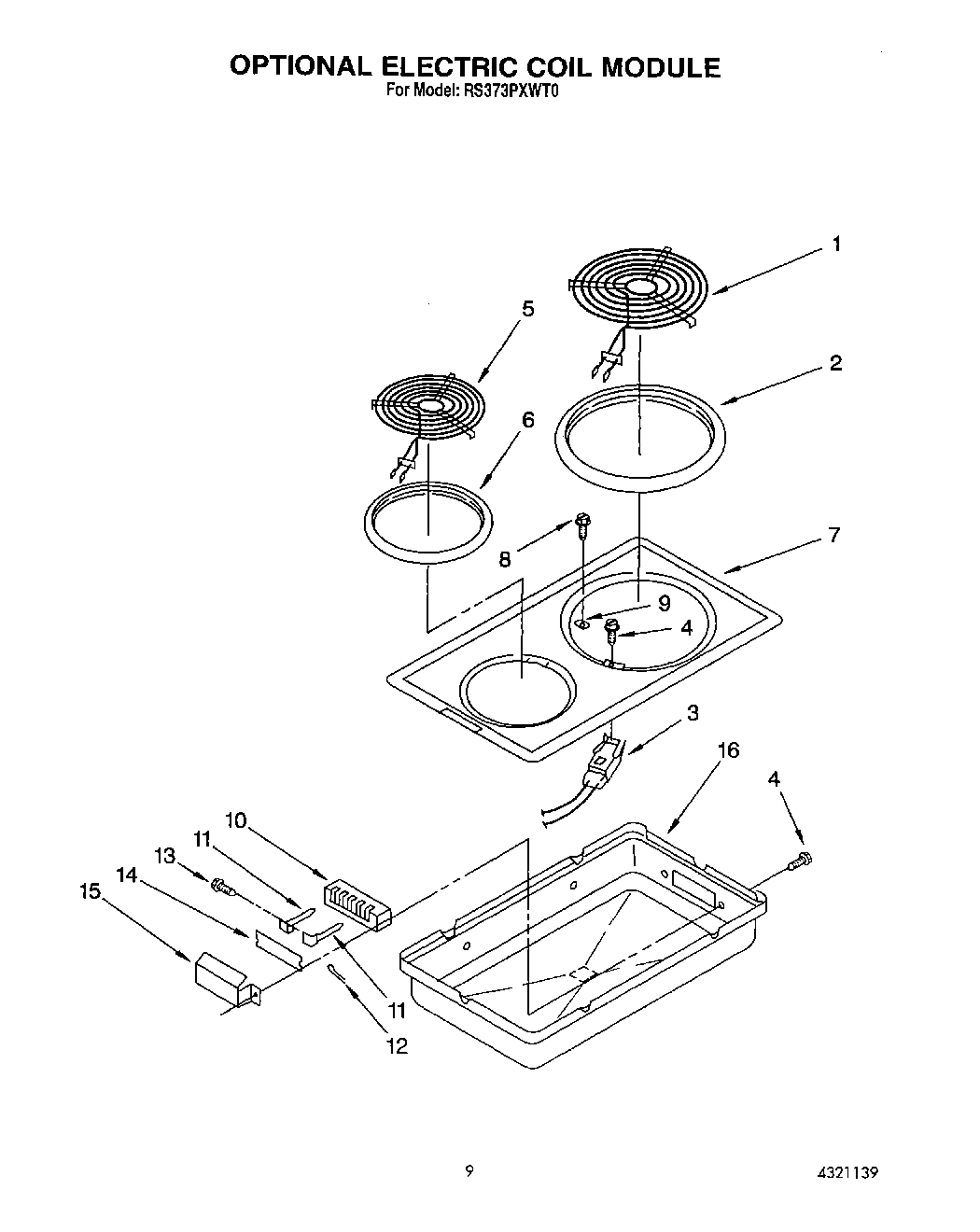

RS373PXWT0 06 – OPTIONAL ELECTRIC COIL MODULE

Products

Position	Product
1	WP660533 Whirlpool Oven 8" Surface Element
2	DRIP BOWL 8" W/HOLE CHROME
3	BURNER RECEPTACLE KIT
4	WP313808 Whirlpool Screw
5	WP660532 Whirlpool Oven Surface Element
6	WPW10196406 Whirlpool 6" Chrome Drip Bowl
7	Top, Module (Chrome)
8	Screw
9	Nut
10	Plug Block, Module
11	Contact, Spade (4)
11	WPL 786726
12	Wire, Ground (Green)
13	Screw (4) No.8-32 x 3/18
14	Insulator
15	Bracket, Plug Block Mounting
16	Pan, Module
