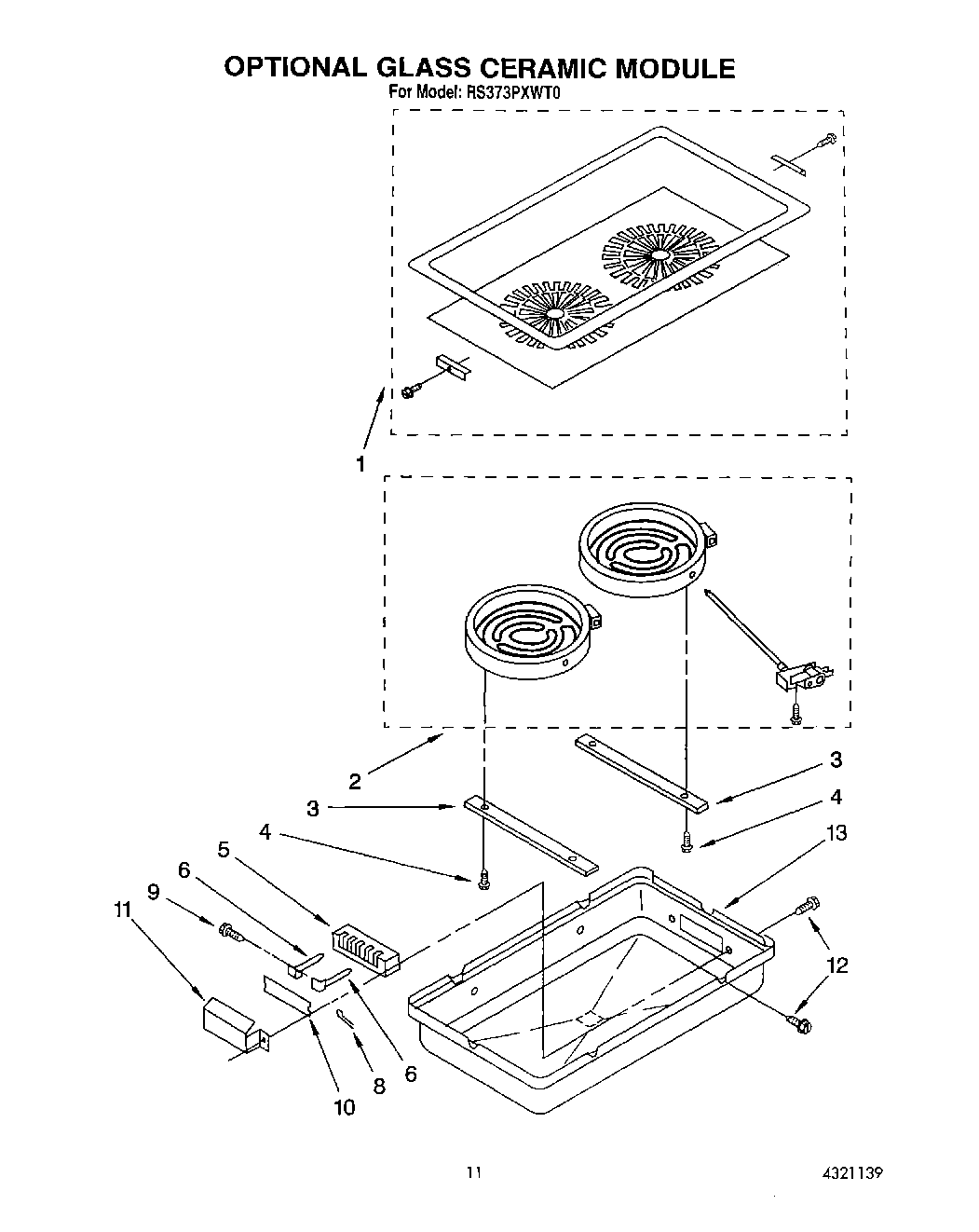

RS373PXWT0 08 – OPTIONAL GLASS CERAMIC MODULE

Products

Position	Product
1	Top Assembly
2	Element
3	Bracket, Mounting
4	WP90767 Whirlpool Screw
5	Plug Block, Module
6	WPL 786726
6	Contact, Spade (4)
8	Wire, Ground (Green)
9	Screw (4) No.8-32 x 3/18
10	Insulator
11	Bracket, Plug Block Mounting
12	WP313808 Whirlpool Screw
13	Module, Pan
