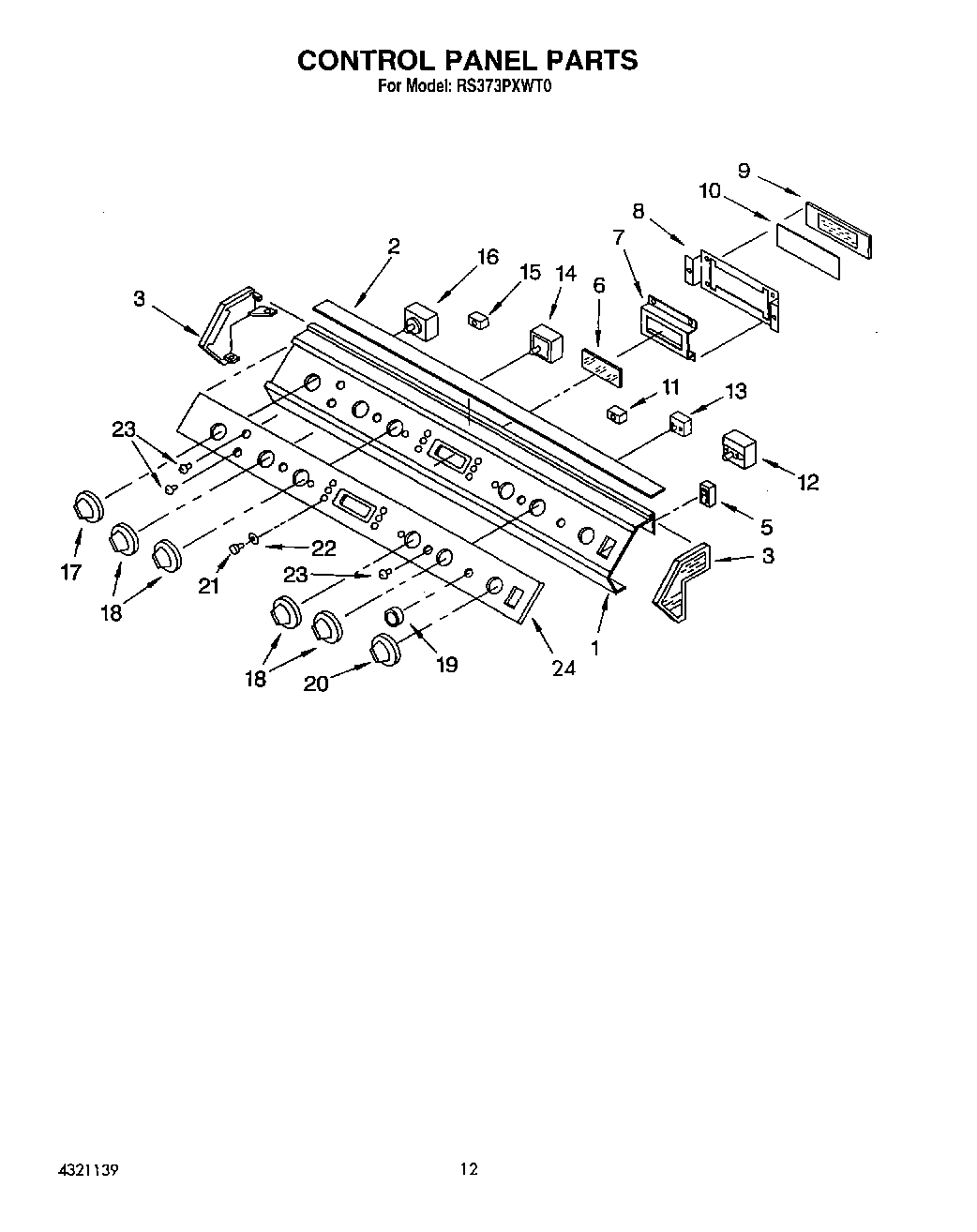

RS373PXWT0 09 – CONTROL PANEL

Products

Position	Product
1	Control Panel
2	Inlay, Control
3	End Cap (Left Hand)
3	End Cap (Right Hand)
5	WP4314961 Whirlpool Lite Switch
6	Glass, Clock
7	Bracket, Clock Glass
8	Bracket, Clock
8	Screw, Bracket
9	Clock/Timer
10	Lens- Clock
11	Light, Indicator (3)
12	Switch, Selector
13	Switch, Fan
13	Screw, 6-32 X 3/16 (2)
14	W10900107 Whirlpool Oven Surface Element Switch
15	Indicator, Light
16	Screw
16	Control, Thermostat
17	Knob, Thermostat Control
18	Knob, Surface
19	Knob, Fan Switch
20	Knob, Selector Switch
21	Button, Clock
22	Bushing, Clock Button
23	Lens, Indicator Light
24	Insert, Control Panel
