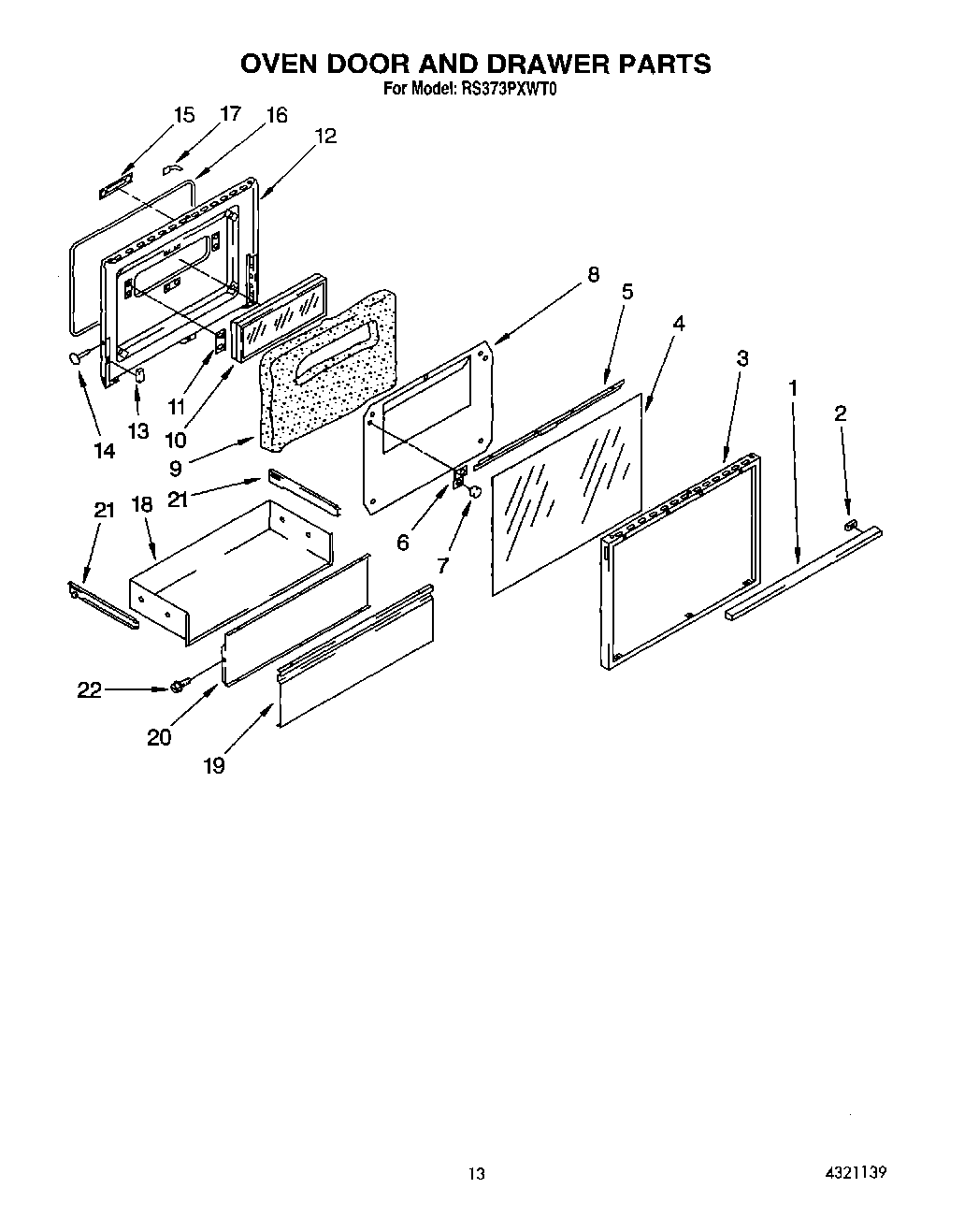

RS373PXWT0 10 – OVEN DOOR AND DRAWER

Products

PositionProduct
1Handle
2Spacer, Handle (2)
3Frame
4Panel, Black Glass
5Baffle, Air
6bracket, glass support (4)
7Bumper, Rubber
8Retainer, Insulation
9Insulation
10Window Assembly
11Retainer, Window (4)
12Liner, Oven Door
13Bumper, Window (2)
14Pin, Hinge (2)
15Plate, Latch
16Gasket Assembly
17Clip, Speed (14)
18Drawer
19Panel, Drawer (White)
19Panel, Drawer (Black)
19Panel, Drawer (Almond)
19panel, drawer (toast)
19Panel, Drawer (Platinum)
20Liner, Front
21Runner (L.H.)
21Runner (R.H.)
22WP965173 Whirlpool Dishwasher Screw
