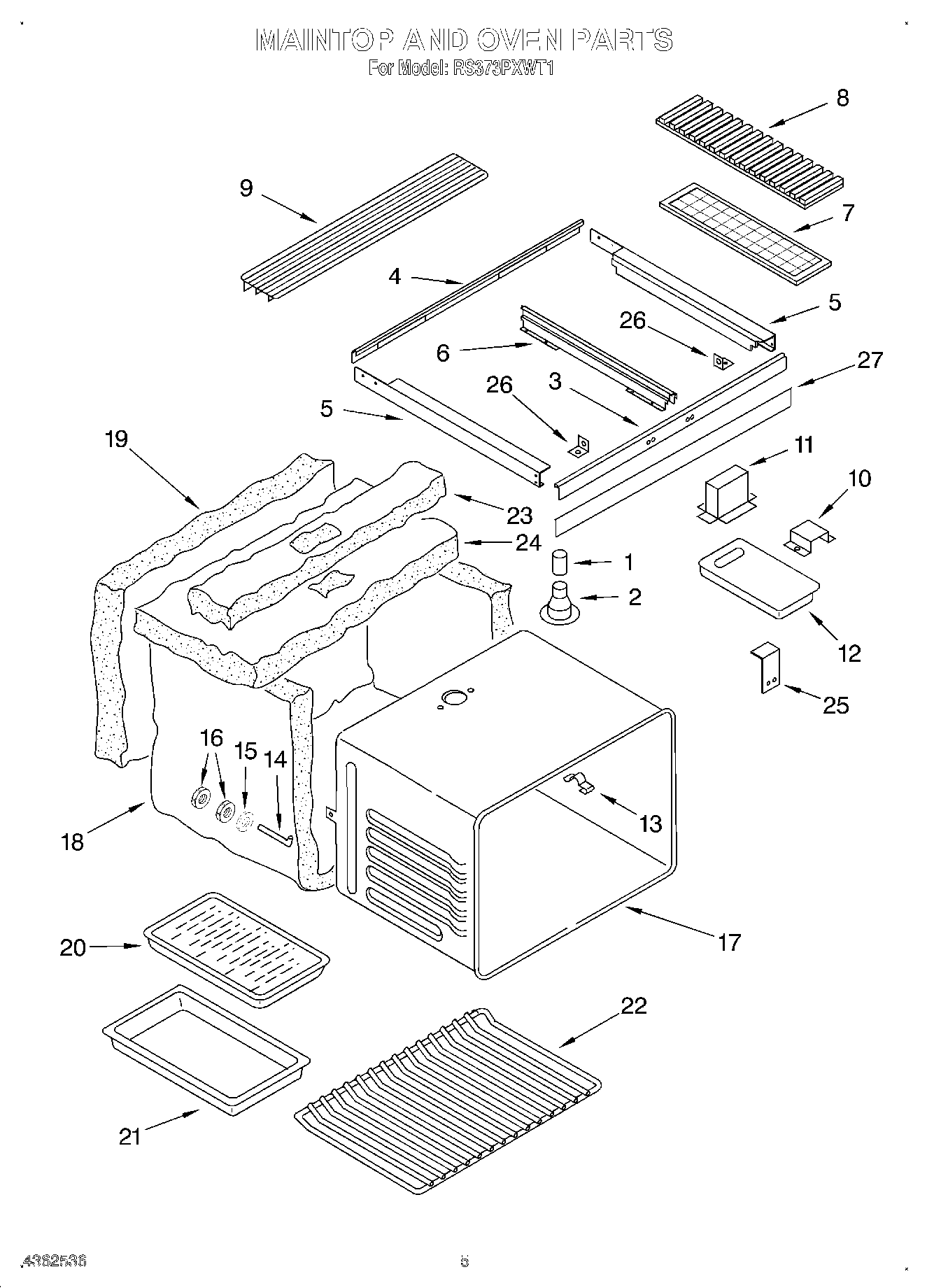

RS373PXWT1 03 – MAINTOP AND OVENadmin2025-04-26T12:48:43+00:00RS373PXWT1 03 – MAINTOP AND OVEN
Products
| Position | Product |
|---|
| 1 | Extension, Vent Tube |
| 2 | Eliminator, Smoke |
| 3 | Frame, Maintop Front |
| 4 | Frame, Maintop Rear |
| 5 | Frame, Maintop (L.H. Side) |
| 5 | Frame, Maintop (R.H. Side) |
| 5 | Frame, Maintop (Trim, Chrome (2)) |
| 6 | Frame, Maintop Center |
| 7 | Filter |
| 8 | Cover, Vent |
| 9 | Backrail, Lo |
| 10 | Bracket, Flue Support |
| 11 | Flue Box, Rear |
| 12 | Flue Box |
| 13 | Clip, Thermo-Bulb |
| 14 | Hook Bolt, Oven Shell |
| 15 | Washer |
| 16 | Nut, Hex 10-32 |
| 17 | Oven Shell |
| 18 | Insulation, Wrapper |
| 19 | Insulation, Back |
| 20 | Grid, Broiler |
| 21 | Pan, Broiler |
| 22 | Rack, Oven (2) |
| 23 | Insulation, Door Latch |
| 24 | Insulation, Top |
| 25 | Bracket, Vent Support |
| 26 | Bracket, Frame Trim |
| 27 | Support, Maintop (Rear) |
| 27 | Support, Maintop (Front) |
