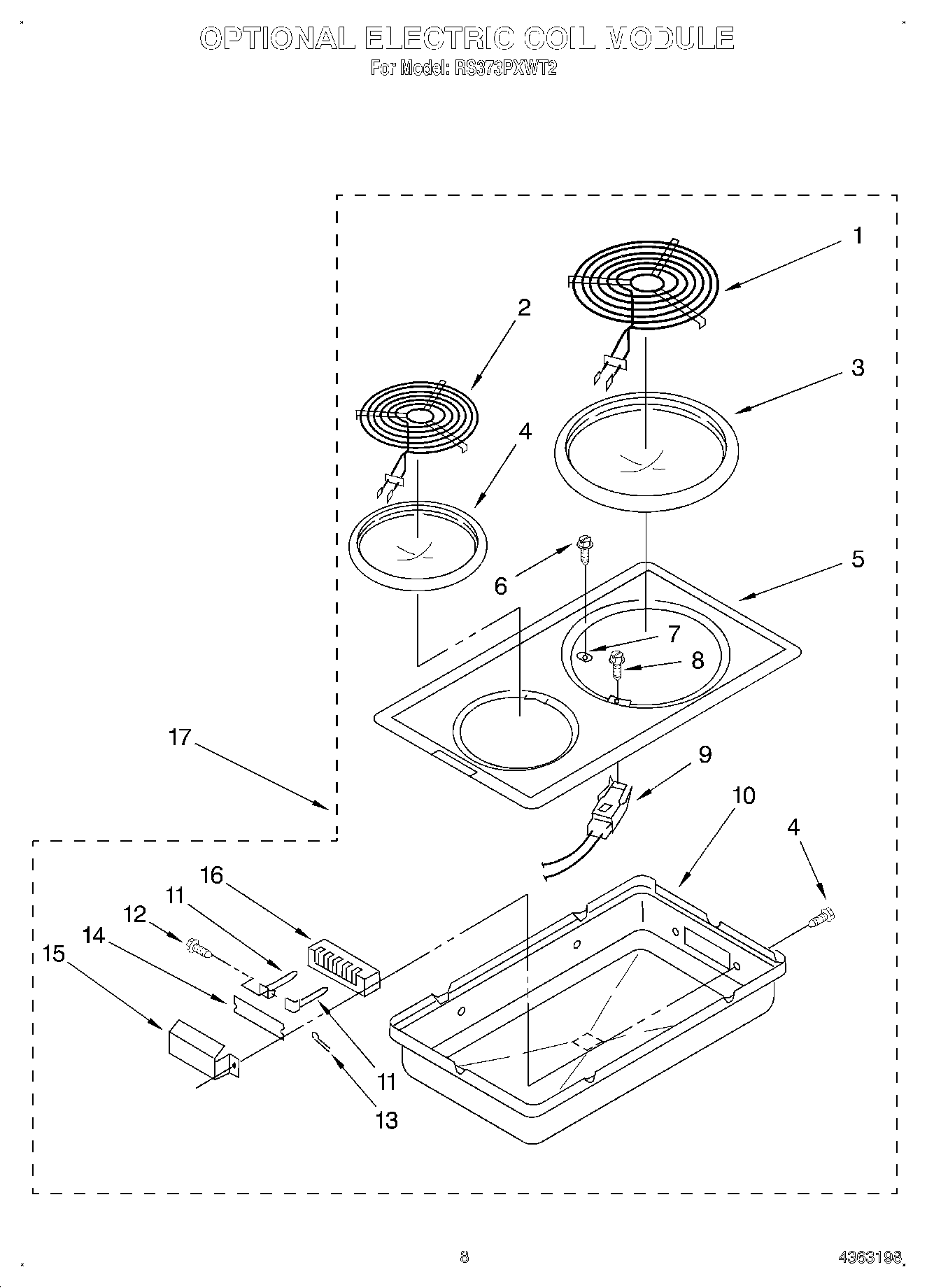

RS373PXWT2 05 – OPTIONAL ELECTRIC COIL MODULE

RS373PXWT2 05 – OPTIONAL ELECTRIC COIL MODULE

Written by

in

RS373PXWT2 05 – OPTIONAL ELECTRIC COIL MODULE

Products

PositionProduct
1WP660533 Whirlpool Oven 8" Surface Element
2WP660532 Whirlpool Oven Surface Element
3DRIP BOWL 8" W/HOLE CHROME
4W10278125 Whirlpool Drip Bowl
4WPW10196406 Whirlpool 6" Chrome Drip Bowl
5Top, Module (White)
5Top, Module (Black)
5Top, Module (Chrome)
6Screw
7Nut
8WP313808 Whirlpool Screw
9BURNER RECEPTACLE KIT
10Pan, Module
11Contact, Spade (4)
11WPL 786726
12Screw (4) No.8-32 x 3/18
13Wire, Ground (Green)
14Insulator
15Bracket, Plug Block Mounting
16Plug Block, Module
17Module, Complete (Black)
17Module, Complete (White)
17Complete Module (Brushed Chrome)
