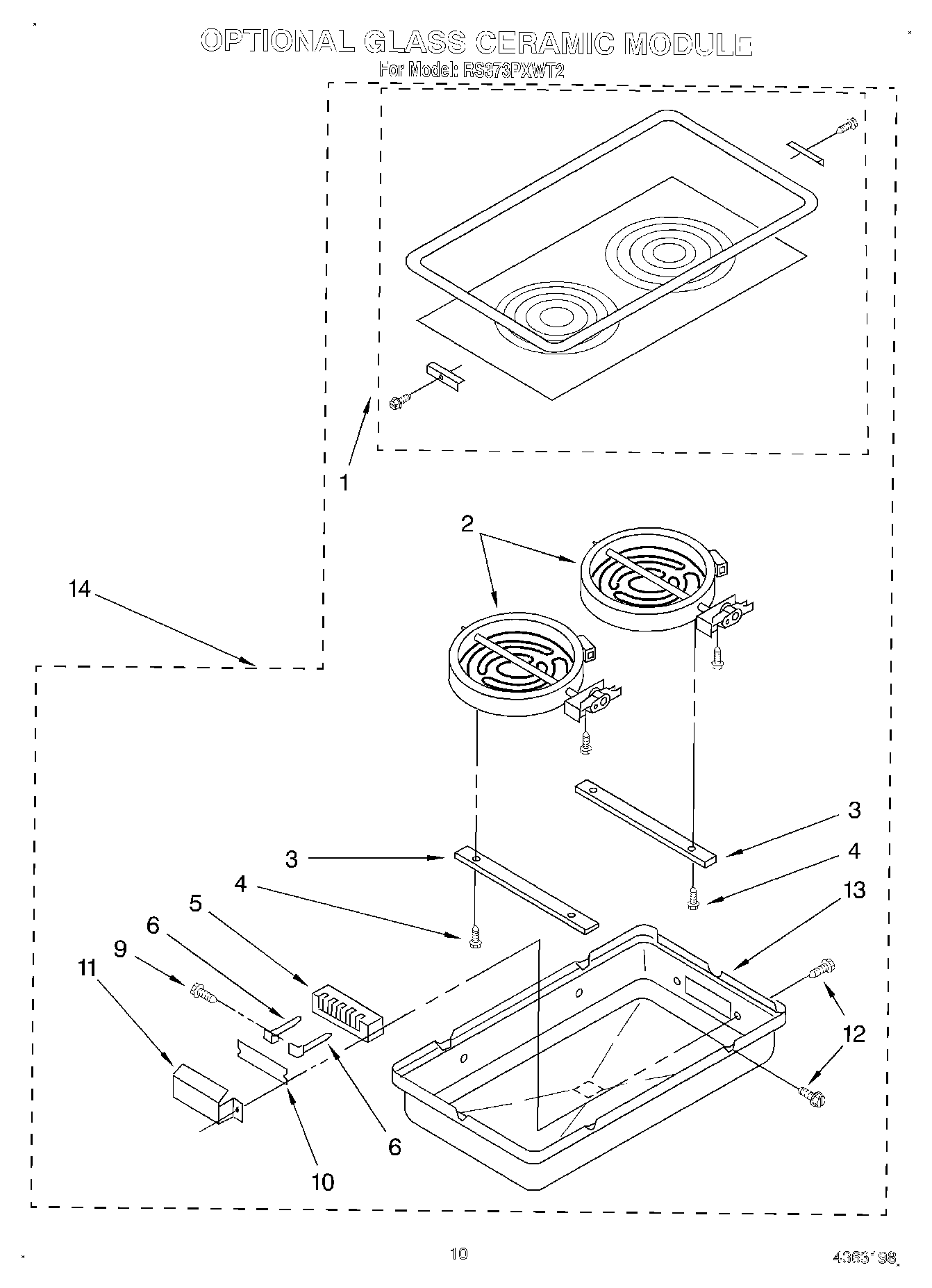

RS373PXWT2 07 – OPTIONAL GLASS CERAMIC MODULE

Products

PositionProduct
1Top Assembly (White Frame with White Glass)
1Top Assembly (Chrome Frame with Black Glass)
1Top Assembly (Black Frame with Black Glass)
2Element, Heat (2)
3Bracket, Mounting
4WP90767 Whirlpool Screw
5Plug Block, Module
6WPL 786726
6Contact, Spade (4)
9Screw (4) No.8-32 x 3/18
10Insulator
11WPL 786707
12WP313808 Whirlpool Screw
13Module, Pan
14Complete Module (Black Frame with Black Glass)
14Complete Module (White Frame with White Glass)
14Complete Module (Chrome Frame with Black Glass)
