RS373PXWT2 10 – ELECTRICAL OVEN

RS373PXWT2 10 – ELECTRICAL OVEN

Written by

in

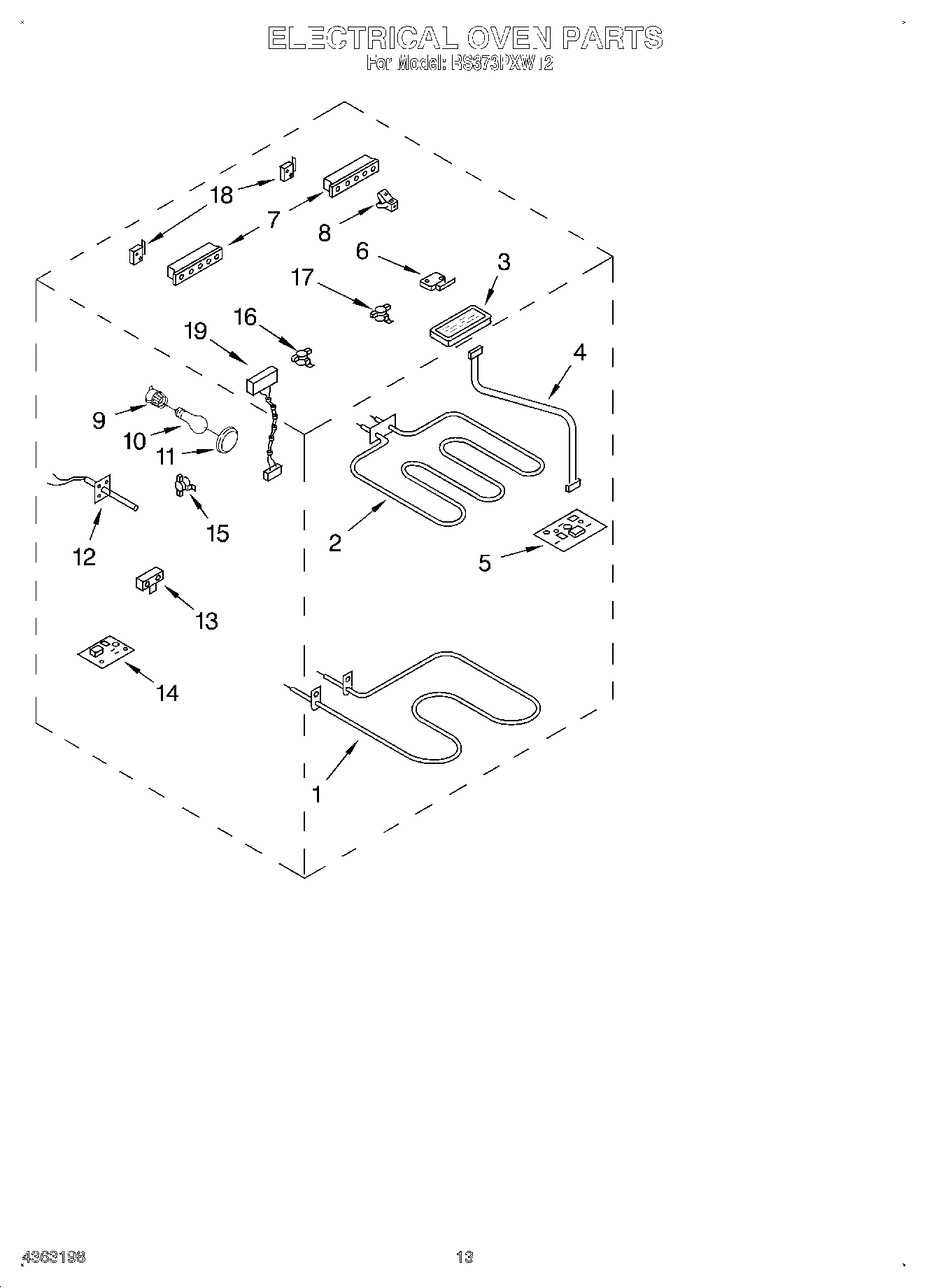

RS373PXWT2 10 – ELECTRICAL OVEN

Products

PositionProduct
1WP77001094 Whirlpool Oven Bake Element
2Element, Broil
3Clock/Timer
4Cable, Clock
5Circuit Board
6Switch, Oven Door Latch
7Plug Block
8Contact, Element (10)
10RANGE ONLY 40W 120V APPL BULB
11WP74011278 Whirlpool Light
12Sensor, Oven
13Block, Terminal
14P.C. Board, Oven
15Switch, High Limit
16Switch, Fan
17Switch, Self- Clean
18Switch, Fan
19Harness, Sensor
