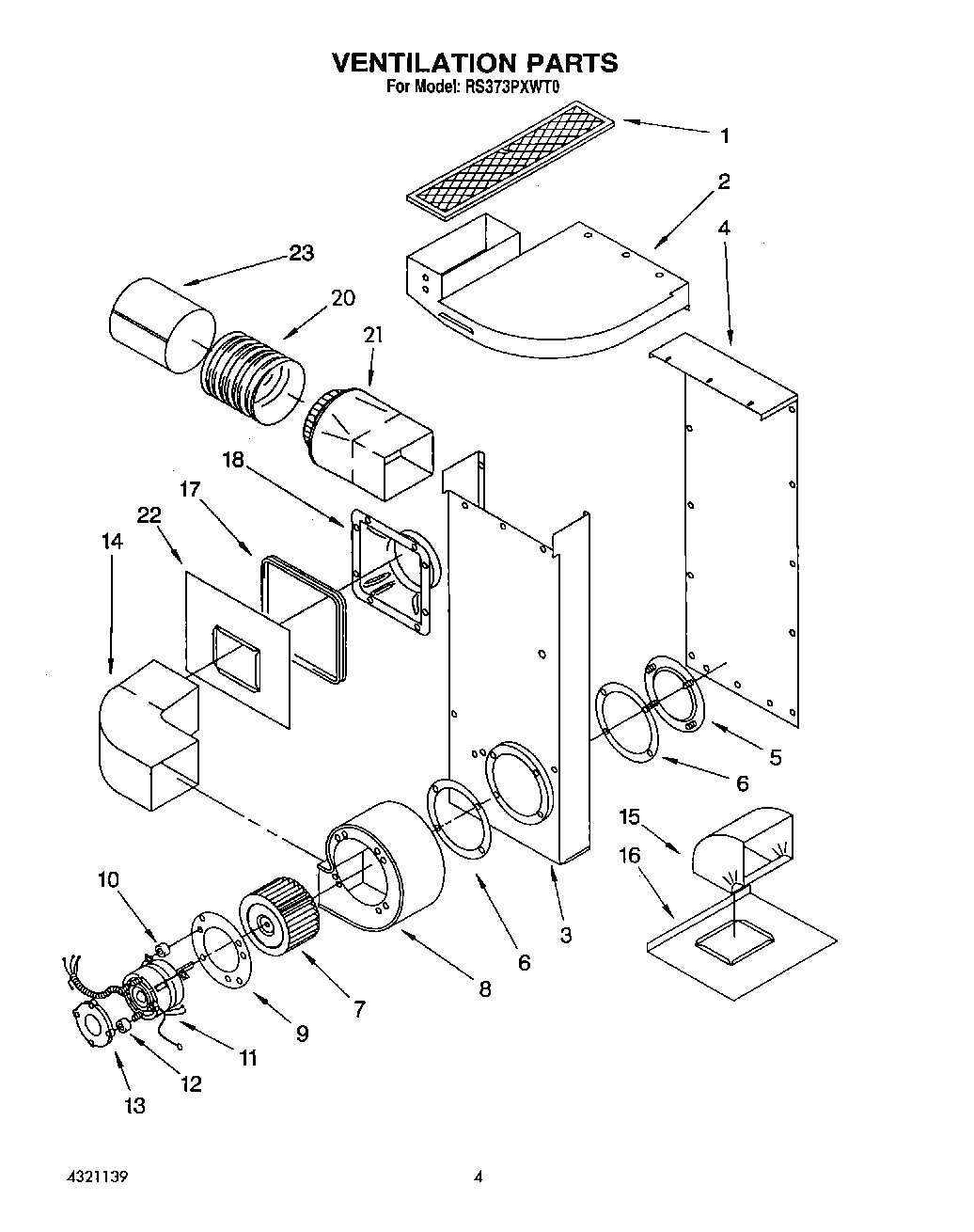

RS373PXWW0 03 – VENTILATION, LITERATURE

Products

Position	Product
	Wiring Diagram
	Installation Instructions
	Guide, Use & Care
	Repair Parts List
1	Filter
2	Plenum Top
3	Plenum Rear
4	Cover, Plenum Rear
5	Orifice
6	Gasket, Motor Mounting
8	Housing Blower
9	Plate, Motor Mounting
10	Grommet, Motor Mounting (8)
11	Motor, 60 Hz.
12	Spacer, Motor Cover (4)
13	Cover, Motor
14	Duct, Wall
15	Duct, Floor
16	Plate, Duct-Floor
17	Gasket, Transition Wall-Floor
18	Transitior, Wall
20	Duct Side
21	Transition 6“
23	Washer (3)
23	Screw, 8 X 3/8 (14)
23	Tube, Transition
23	Bolt, 10-24 X 3/4 (3)
23	WP488826 Whirlpool Nut
