RS373PXWW0 06 – OPTIONAL ELECTRIC COIL MODULE
Written by
in

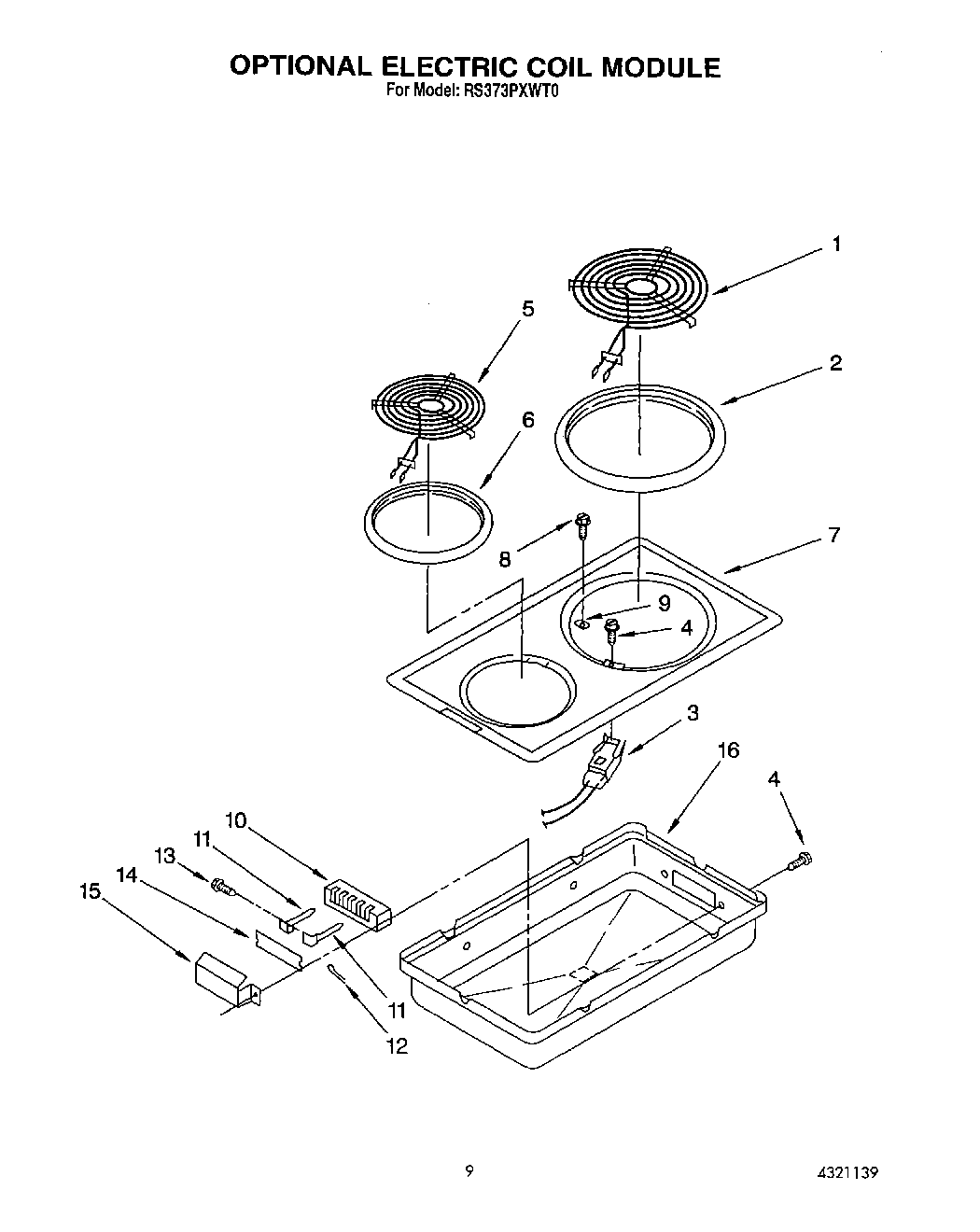

RS373PXWW0 06 – OPTIONAL ELECTRIC COIL MODULE
Products
Position
Product
1
WP660533 Whirlpool Oven 8" Surface Element
2
DRIP BOWL 8" W/HOLE CHROME
3
BURNER RECEPTACLE KIT
4
WP313808 Whirlpool Screw
5
WP660532 Whirlpool Oven Surface Element
6
WPW10196406 Whirlpool 6" Chrome Drip Bowl
7
Top, Module (Chrome)
8
Screw
9
Nut
10
Plug Block, Module
11
Contact, Spade (4)
11
WPL 786726
12
Wire, Ground (Green)
13
Screw (4) No.8-32 x 3/18
14
Insulator
15
Bracket, Plug Block Mounting
16
Pan, Module
←
