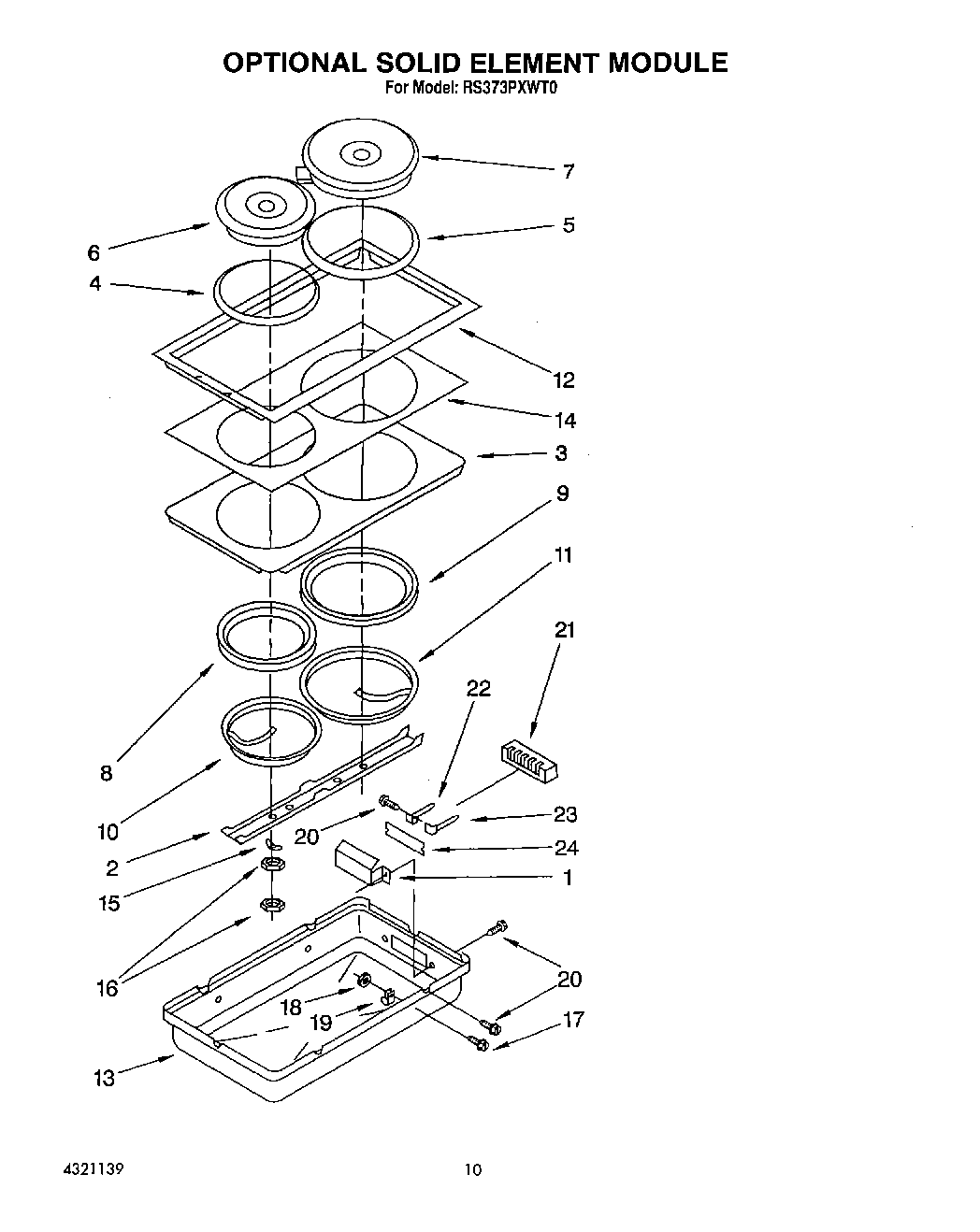

RS373PXWW0 07 – OPTIONAL SOLID ELEMENT MODULE

Products

Position	Product
1	WPL 786707
2	WPL 786708
3	WPL 786709
4	AIR GRILL
5	Ring, Spill (8``)
6	WP3147131 Whirlpool Surface Element
7	WP3147132 Whirlpool Surface Element
8	Ring, Gasket (6``)
9	WPL 786715
10	Gasket 6``
11	Gasket 8``
12	Trim, Top-Chrome
13	Pan Module
14	WPL 786720
15	Spring, Leaf
16	Nut, Hex
17	Screw, 8-32 X 3/8 (4)
18	WP488130 Whirlpool Air Conditioner Nut
19	Clamp
20	Screw, 8-18 X 3/8
21	Plug Block, Module
22	Contact, Spade (4)
23	WPL 786726
24	Insulator
