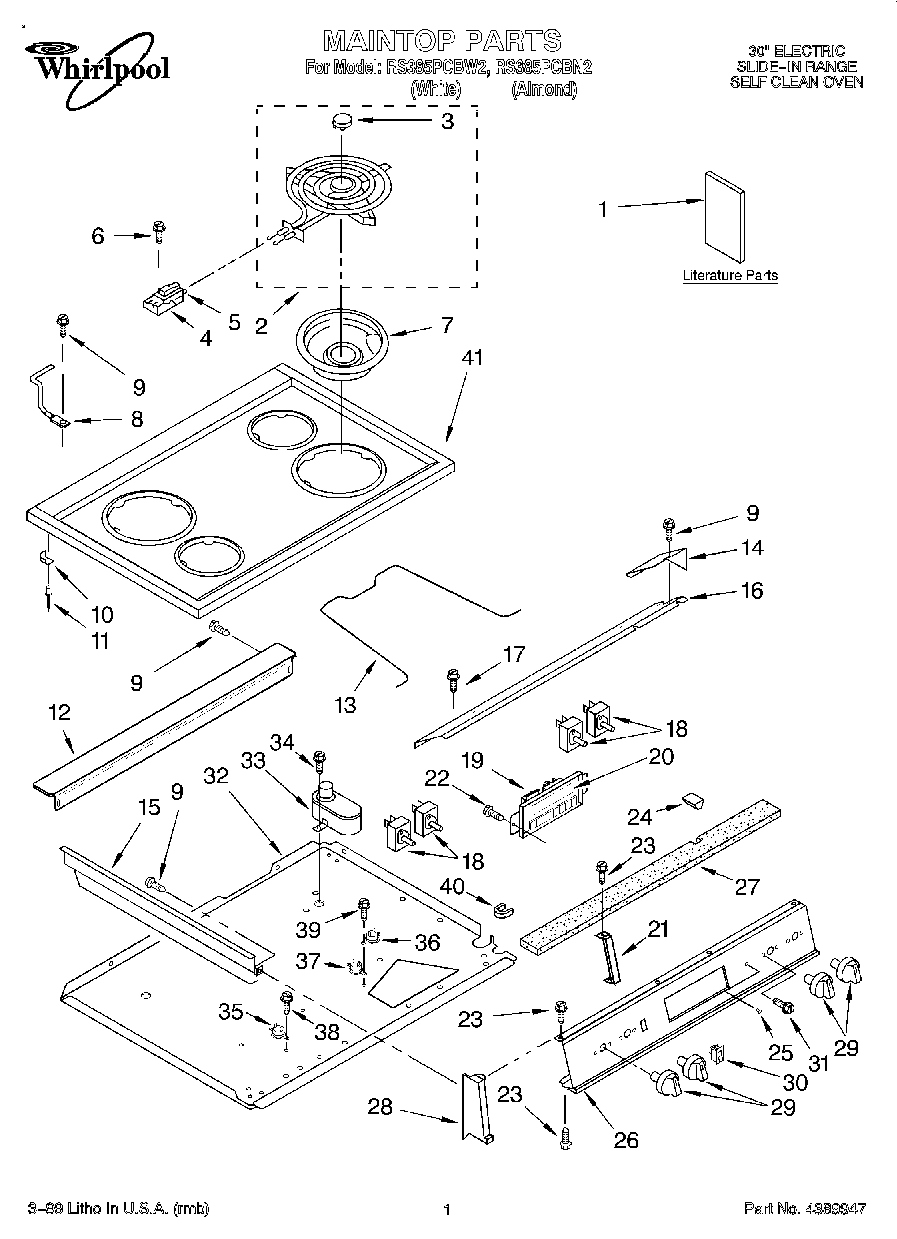

RS385PCBN2 01 – MAINTOP, LITERATURE

Products

Position	Product
1	WPL LIT4389354
1	Use & Care Guide
1	Tech Sheet
2	Element, Surface (Includes Illus 3) (6“ Coil (2))
2	Element, Surface (Includes Illus 3) (8“ Coil (2))
3	Medallion (4)
4	BURNER RECEPTACLE KIT
5	WP4332752 Whirlpool Clip
6	Screw, Term Block
7	Bowl, Burner (8“ Black (2))
7	Bowl, Burner (6“ Black (2))
8	Hinge, Cooktop (Right)
8	Hinge, Cooktop (Left)
9	WP308685 Whirlpool Microwave Screw
10	Bracket, Hinge (2)
11	Screw, Hinge Brkt.
12	Filler, Backsplash (White)
12	Filler, Backsplash (Almond)
13	Rod, Top Support
14	Cover, Wire
15	Nut, Speed (2)
15	Extension, Side (2)
16	Cover, Wire
18	W10900107 Whirlpool Oven Surface Element Switch
19	ERC
20	Plate, Clock (Black)
21	Bracket, Clock (2)
23	SCREW
24	Light, Indicator (Oven)
25	WP9750343 Whirlpool Light Lens
26	Panel, Control
27	Insulation, Panel
28	Endcap (Black Right Hand)
28	Endcap (Black Left Hand)
29	Knob, Control (4)
30	WP4314961 Whirlpool Lite Switch
31	Screw, Mtg. (8)
32	WPL 4389969
33	Vent Tube Assy.
34	Screw
35	Switch,
36	Switch
37	Switch,
38	4389654 Whirlpool Screw
39	Screw
40	Grommet (Top)
40	Grommet (Hose (2))
41	Cooktop (White)
41	Cooktop (Almond)
