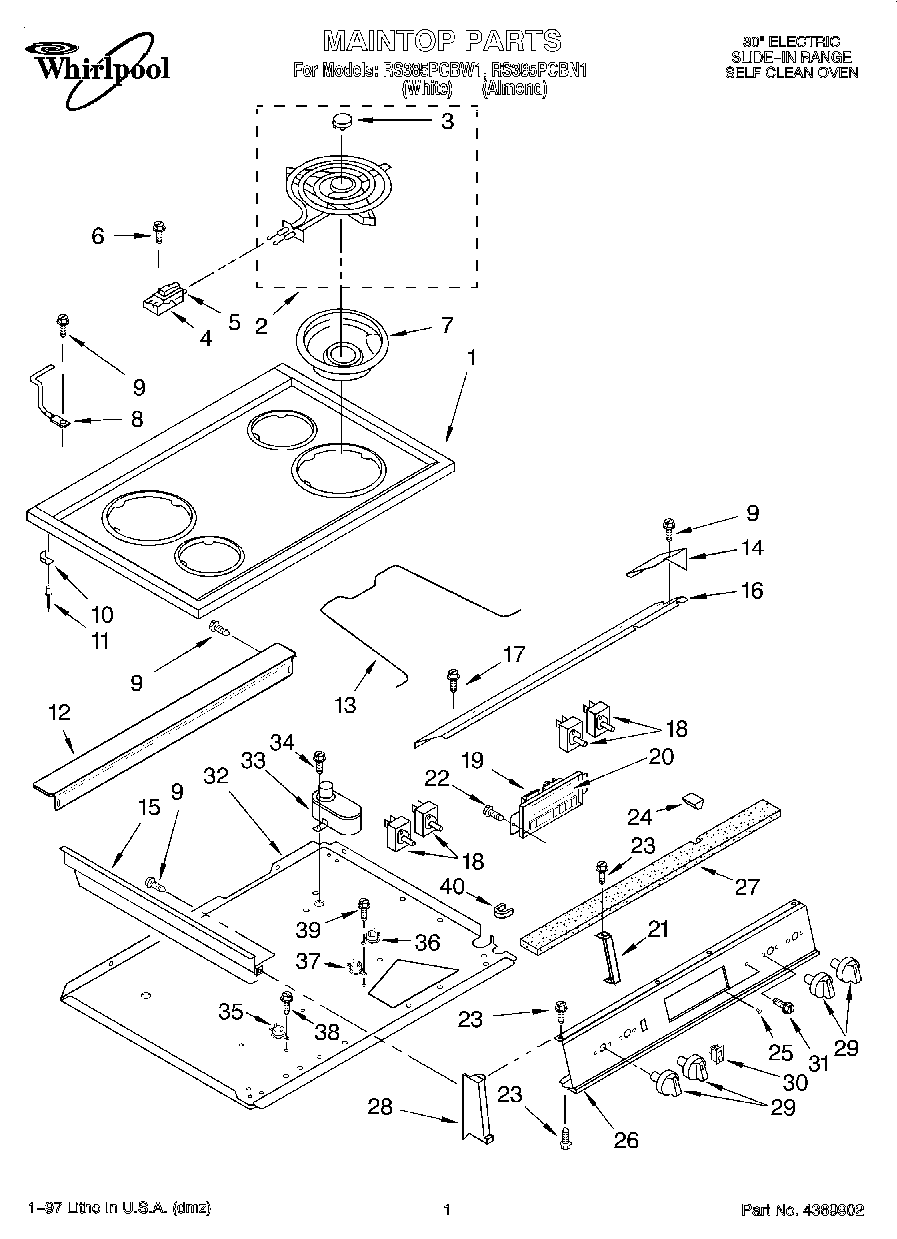

| 1 | Cooktop (White) |
| 1 | Cooktop (Almond) |
| 2 | Element, Surface (Includes Illus 3) (6`` Coil (2)) |
| 2 | Element, Surface (Includes Illus 3) (8`` Coil (2)) |
| 3 | Medallion (4) |
| 4 | BURNER RECEPTACLE KIT |
| 5 | WP4332752 Whirlpool Clip |
| 6 | Screw, Term Block |
| 7 | Bowl, Burner (6`` Black (2)) |
| 7 | Bowl, Burner (8`` Black (2)) |
| 8 | Hinge, Cooktop (Right) |
| 8 | Hinge, Cooktop (Left) |
| 9 | WP308685 Whirlpool Microwave Screw |
| 10 | Bracket, Hinge (2) |
| 11 | Screw, Hinge Brkt. |
| 12 | Filler Strip |
| 13 | Rod, Top Support |
| 14 | Cover, Wire |
| 15 | Extension, Side (2) |
| 15 | Nut, Speed (2) |
| 16 | Cover, Wire |
| 18 | W10900107 Whirlpool Oven Surface Element Switch |
| 19 | ERC |
| 20 | Plate, Clock (Black) |
| 21 | Bracket, Clock (2) |
| 23 | SCREW |
| 24 | Light, Indicator (Oven) |
| 25 | WP9750343 Whirlpool Light Lens |
| 26 | Panel, Control |
| 27 | Insulation, Panel |
| 28 | Endcap (Black Right Hand) |
| 28 | Endcap (Black Left Hand) |
| 29 | Knob, Control (4) |
| 30 | WP4314961 Whirlpool Lite Switch |
| 31 | Screw, Mtg. (8) |
| 32 | Bottom, Burner Box |
| 33 | Vent Tube Assy. |
| 34 | Screw |
| 35 | Switch, |
| 36 | Switch |
| 37 | Switch, |
| 38 | 4389654 Whirlpool Screw |
| 39 | Screw |
| 40 | Grommet (Top) |
| 40 | Grommet (Hose (2)) |
