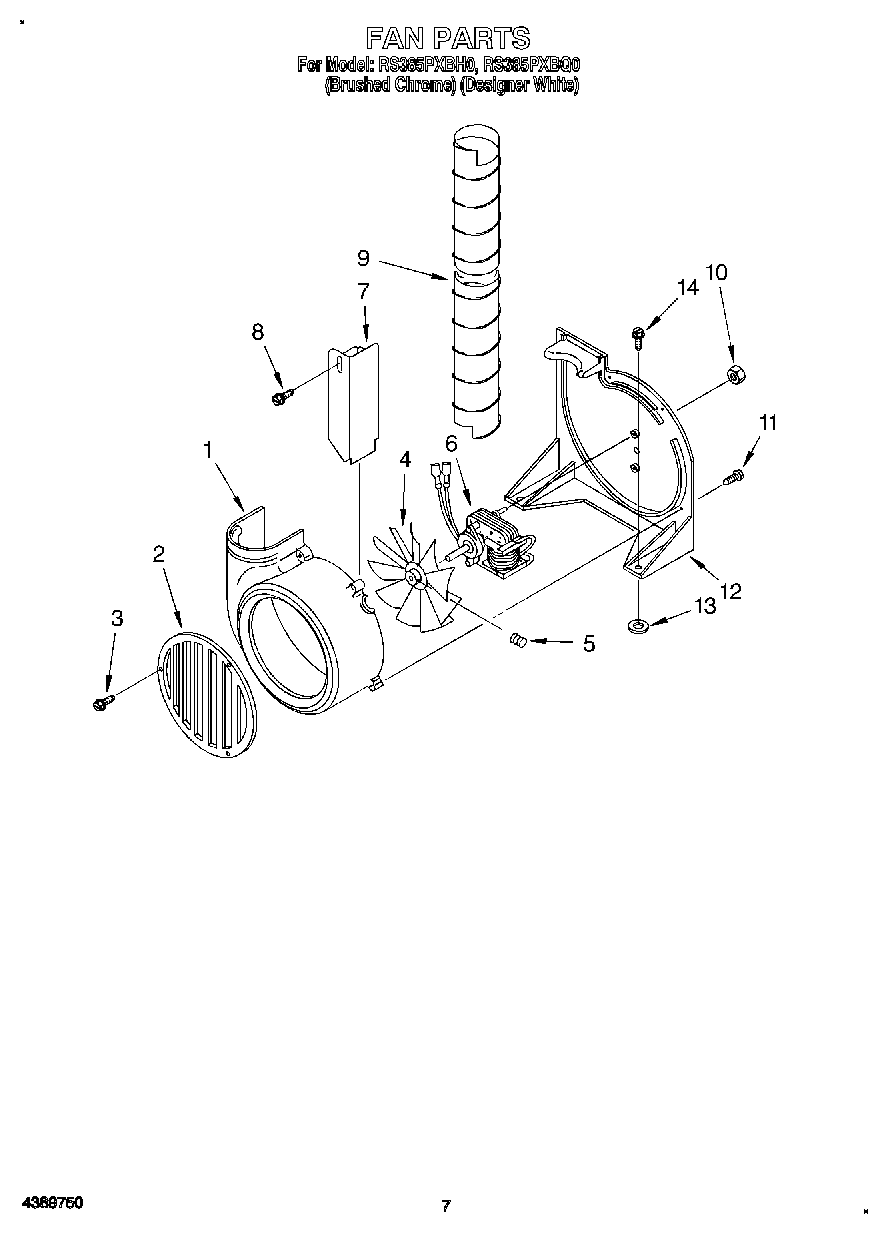

RS385PXBQ0 05 – FAN, LITERATUREadmin2025-04-26T12:48:35+00:00RS385PXBQ0 05 – FAN, LITERATURE
Products
| Position | Product |
|---|
| Use & Care Guide |
| Tech Sheet |
| WPL LIT4389354 |
| 1 | Housing, Fan |
| 2 | Grill, Fan |
| 4 | Blade, Fan |
| 5 | Set Screw |
| 6 | Motor, Fan |
| 7 | Raceway, Wire |
| 8 | Screw, Retainer |
| 9 | Hose, Flexible |
| 10 | Nut, Hex |
| 11 | Screw |
| 12 | Plate, Fan |
| 13 | Washer, Felt (4) |
| 14 | Screw |
