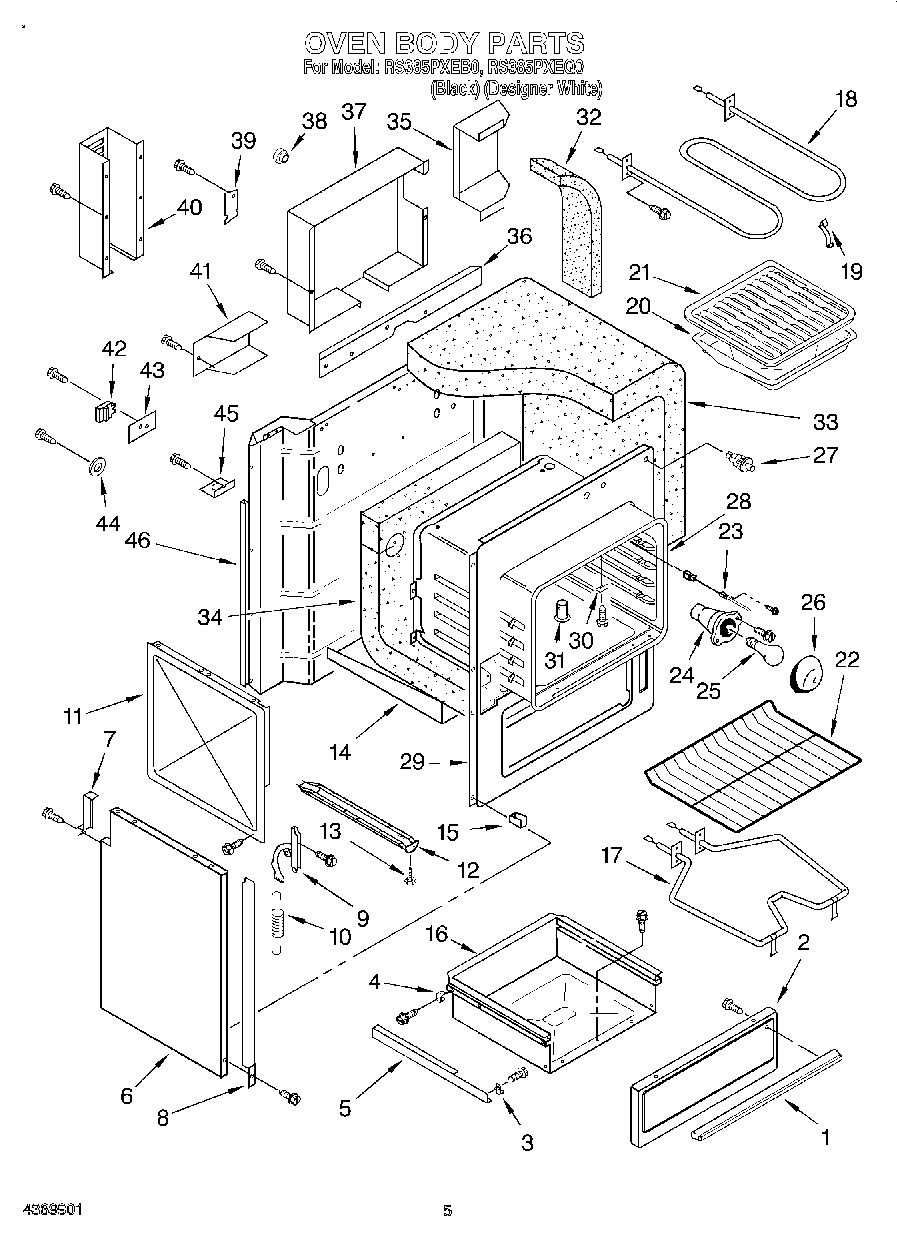

RS385PXEB0 04 – OVEN BODYadmin2025-04-26T12:48:07+00:00RS385PXEB0 04 – OVEN BODY
Products
| Position | Product |
|---|
| 1 | Handle, Drawer |
| 1 | Handle, Drawer (White) |
| 1 | Screw (2) |
| 2 | Panel, Drawer (White) |
| 2 | Panel, Drawer (Black) |
| 3 | Screw, Liner |
| 3 | WPL 4389477 |
| 4 | WPL 4389476 |
| 4 | WPL 4389537 |
| 5 | WPL 4389470 |
| 6 | Panel, Bodyside (Right Side) |
| 6 | Panel, Bodyside (Left Side) |
| 7 | Filler, Rear (2) |
| 8 | Trim, Side (White Right Hand) |
| 8 | Trim, Side (White Left Hand) |
| 8 | Trim, Side (Black Right Hand) |
| 8 | Trim, Side (Black Left Hand) |
| 9 | Hinge, Oven Door (Right) |
| 9 | Screw, Hinge (6) |
| 9 | Hinge, Oven Door (Left) |
| 10 | Spring, Door (2) |
| 11 | Retainer, Side (2) |
| 12 | Rail, Base (2) (Includes No. 13) |
| 13 | Screw, Leveler (4) |
| 14 | Retainer, Lower |
| 15 | Spacer (4) |
| 16 | Drawer, Storage |
| 17 | WB44K5012 GE Oven Bake Element |
| 18 | WP4334925 Whirlpool Broil Element |
| 19 | Support, Broil (3) |
| 20 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 22 | Rack, Oven (2) |
| 23 | Sensor, Oven |
| 23 | Screw (8) |
| 24 | Housing, Lite |
| 24 | WPL 4389536 |
| 25 | RANGE ONLY 40W 120V APPL BULB |
| 26 | Lens, Oven Lite |
| 27 | WPL 4389630 |
| 28 | Body, Oven |
| 29 | Frame, Front |
| 30 | Cover |
| 31 | Tube, Vent |
| 32 | Insulation, Top & Side (2) |
| 33 | Insulation, Wrap |
| 34 | Insulation, Back & Bottom |
| 35 | Shield, Wire |
| 36 | Shield, Wire |
| 37 | Shield, Upper |
| 38 | Bushing, Snap |
| 39 | Screw |
| 39 | Plate, Flue Cover |
| 40 | Cover, Upper Wire |
| 41 | Cover, Lite Wire |
| 42 | Bracket, Cord |
| 43 | Screw (2) |
| 43 | Shield, Disconnect |
| 44 | Washer, Ground |
| 44 | Screw, Retainer |
| 45 | Plate, Cord Mtg. |
| 45 | WP308685 Whirlpool Microwave Screw |
| 46 | WPL 4389611 |
| 46 | WPL 4389471 |
