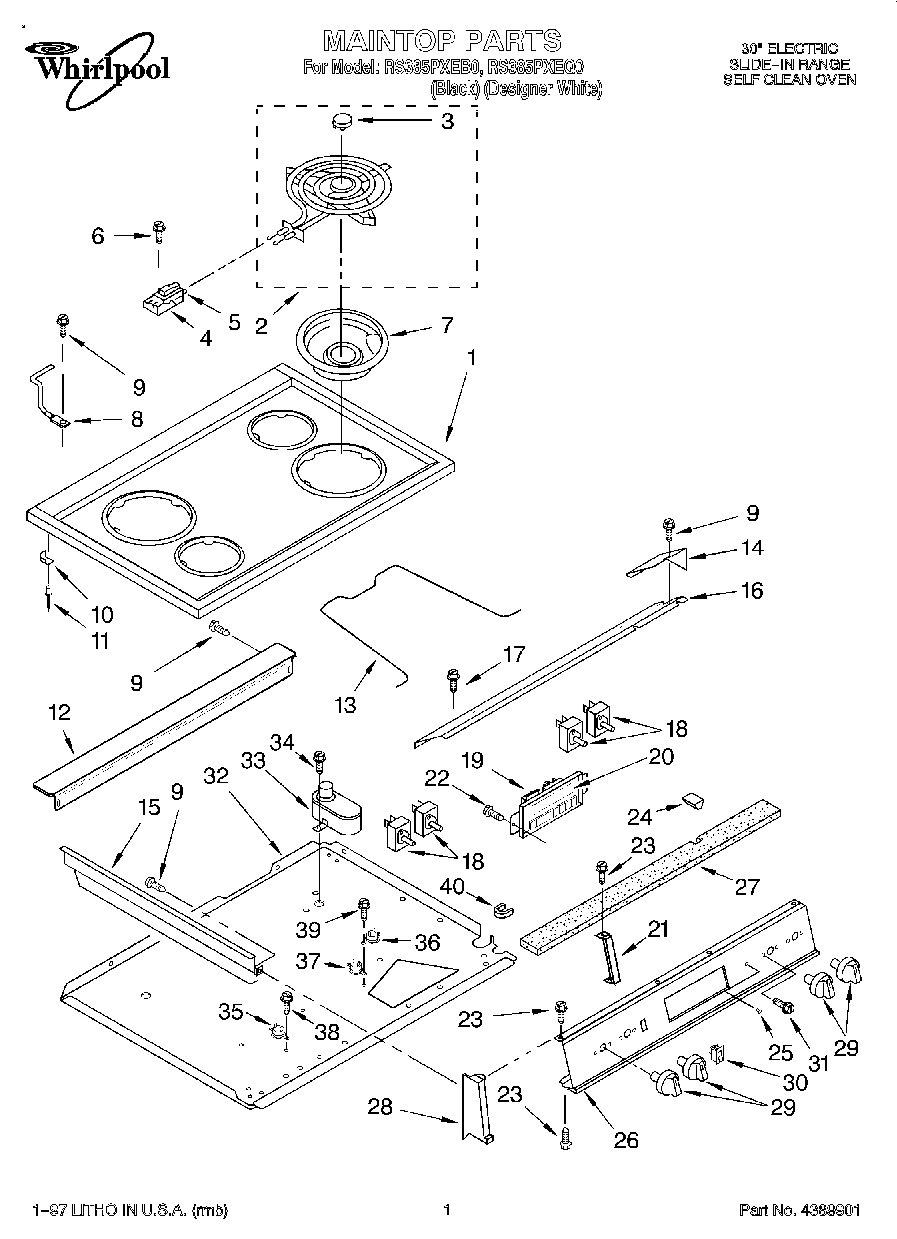

RS385PXEQ0 01 – MAINTOP

Products

Position	Product
1	Cooktop (White)
1	Cooktop (Black)
2	WP3177565 Whirlpool Surface Element
2	WPY04100165 Whirlpool Surface Element
3	Medallion (4)
4	BURNER RECEPTACLE KIT
5	WP4332752 Whirlpool Clip
6	Screw, Term Block
7	Bowl, Burner (8“ Black (2))
7	Bowl, Burner (6“ Black (2))
7	Bowl, Burner (6“ Chrome (3))
7	Bowl, Burner (8“ Chrome)
8	Hinge, Cooktop (Right)
8	Hinge, Cooktop (Left)
9	WP308685 Whirlpool Microwave Screw
10	Bracket, Hinge (2)
11	Screw, Hinge Brkt.
12	Filler, Backsplash (White)
12	Filler, Backsplash (Black)
13	Rod, Top Support
14	Cover, Wire
15	Extension, Side (2)
16	Cover, Wire
18	W10900107 Whirlpool Oven Surface Element Switch
19	ERC
20	Plate, Clock (White)
20	Plate, Clock (Black)
21	Bracket, Clock (2)
23	SCREW
24	Light, Indicator (Oven)
25	WP9750343 Whirlpool Light Lens
26	Panel, Control
26	Panel, Control (White)
27	Insulation, Panel
28	Endcap (White Right Hand)
28	Endcap (White Left Hand)
28	Endcap (Black Right Hand)
28	Endcap (Black Left Hand)
29	Knob, Control (4) (White)
29	Knob, Control (4)
30	WP4314961 Whirlpool Lite Switch
30	WPL 4389370
31	Screw, Mtg. (8)
32	Bottom, Burner Box
33	Vent Tube Assy.
34	Screw
35	Switch,
36	Switch
37	Switch,
38	4389654 Whirlpool Screw
39	Screw
40	Grommet (Top)
40	Grommet (Hose (2))
