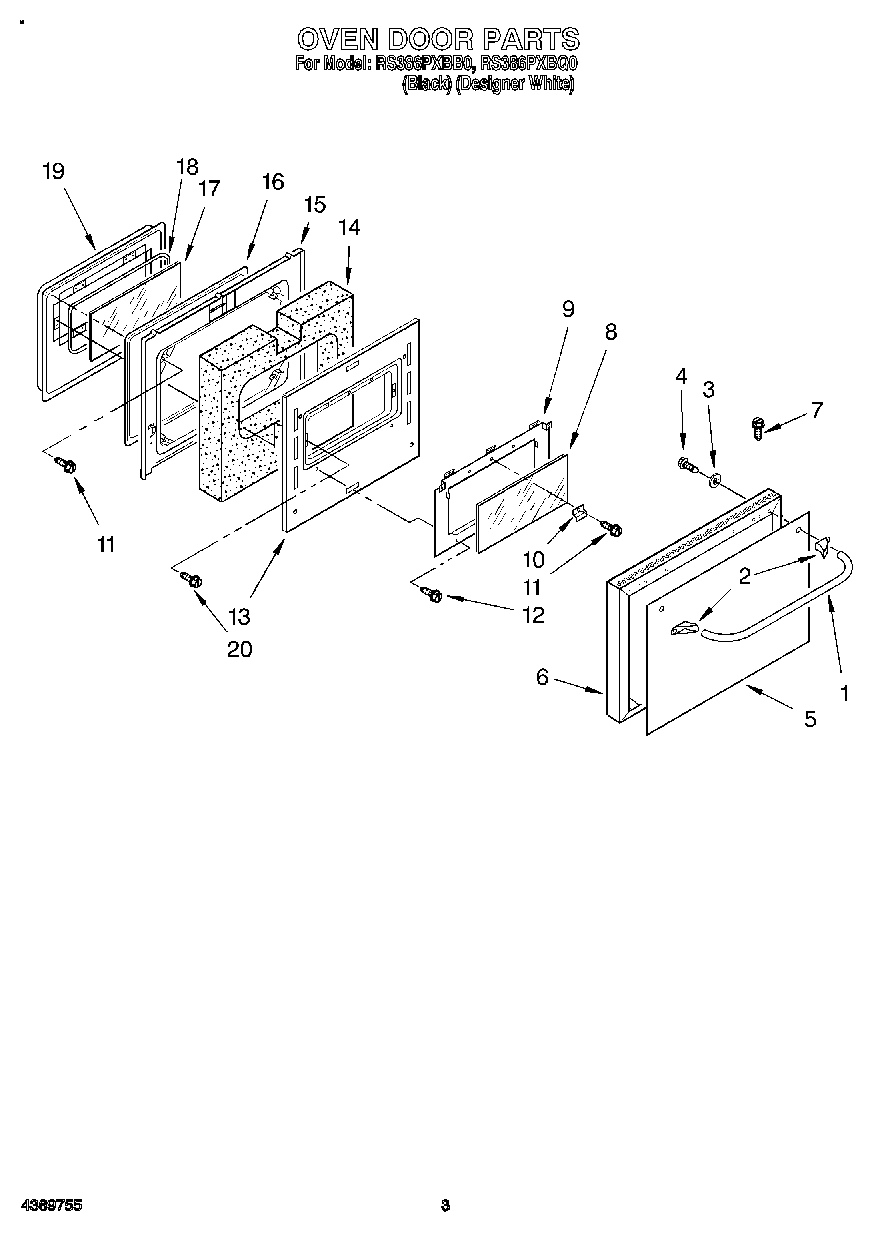

RS386PXBB0 03 – OVEN DOOR

Products

Position	Product
1	Handle, Oven Door (Black)
1	Handle, Oven Door (White)
2	Endcap, Handle (2) (White)
2	Endcap, Handle (2) (Black)
3	Spacer, Handle (2)
4	Screw, Handle (2)
5	Glass, Door Front
5	Glass, Door Front
6	Frame, Oven Door
6	Frame, Oven Door (White)
7	Screw, Hinge (6)
7	Screw, Trim (6) (Black)
8	Glass, Mid Door
9	Plate, Glass Mtg.
10	Retainer, Glass (2)
11	Screw, Retainer
12	Screw, Plate (6)
13	Retainer, Insulation
14	Insulation, Door
15	Liner, Oven Door
16	Gasket, Oven Door
17	Glass, Inner
18	Seal, Inner Glass
19	Plug, Oven Door
20	WP308685 Whirlpool Microwave Screw
