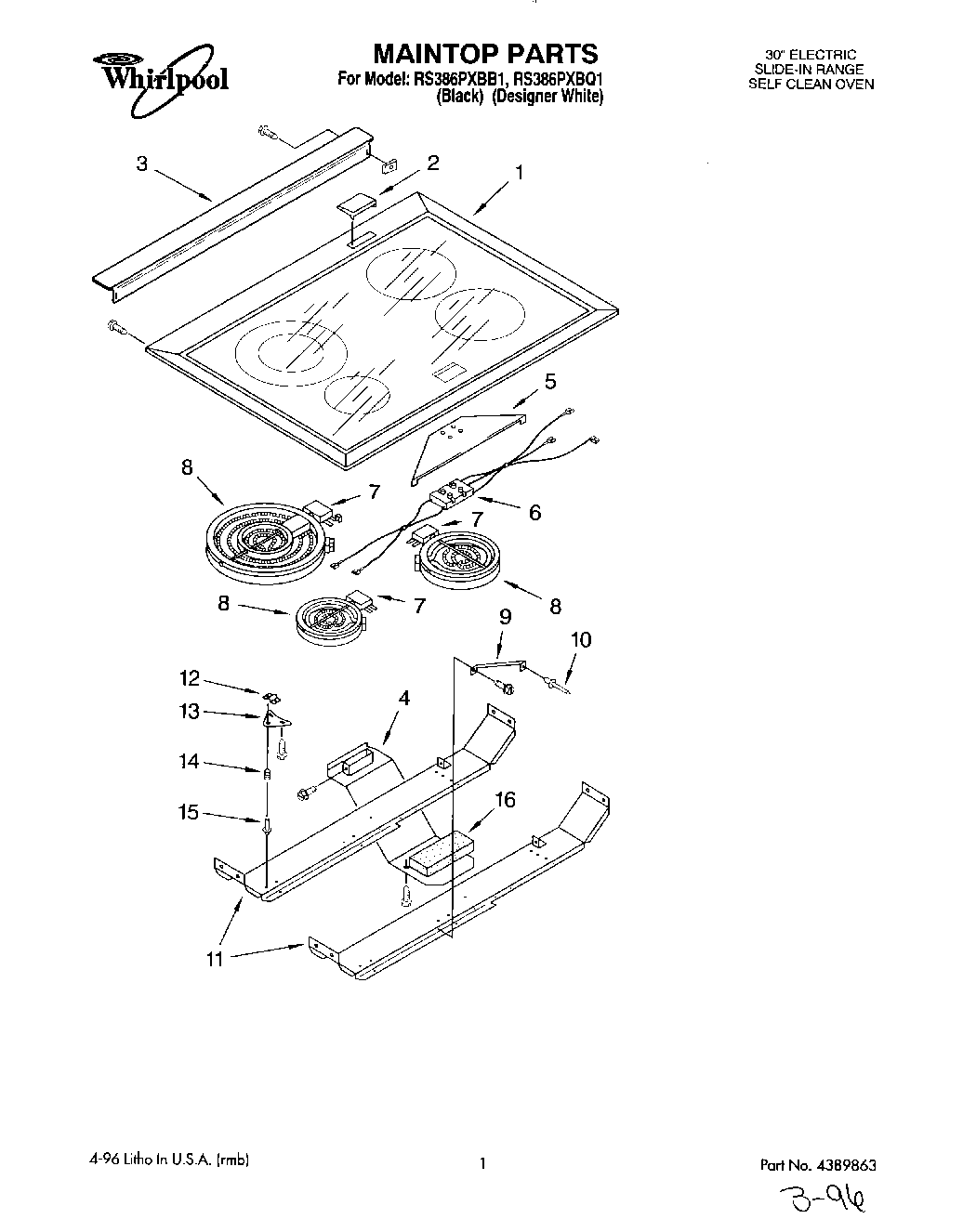

RS386PXBB1 01 – MAINTOP

Products

Position	Product
1	Cooktop (Black)
1	Cooktop (White)
2	Trim, Vent (Black)
2	Trim, Vent (White)
3	Filler Strip
3	Nut, Speed (2)
4	Screw
4	Vent Assembly
5	Bracket, Ind Light
6	Light, Indicator
7	Limiter (2400W – LR)
7	Limiter (1400W – LF)
7	Limiter (1900W – RR, RF)
8	Element, Radiant (Includes No.7) (1400W – LF)
8	WP8185663 Whirlpool Surface Element
8	W10823710 Whirlpool Surface Element
9	WP308685 Whirlpool Microwave Screw
9	Bracket, Maintop
10	Rivet, Pop
11	Support, Element
12	Clip, Push-On
13	Bracket, Element
13	WP90767 Whirlpool Screw
14	Spring, Element
15	Stud, Element
16	Insulation, Flue
