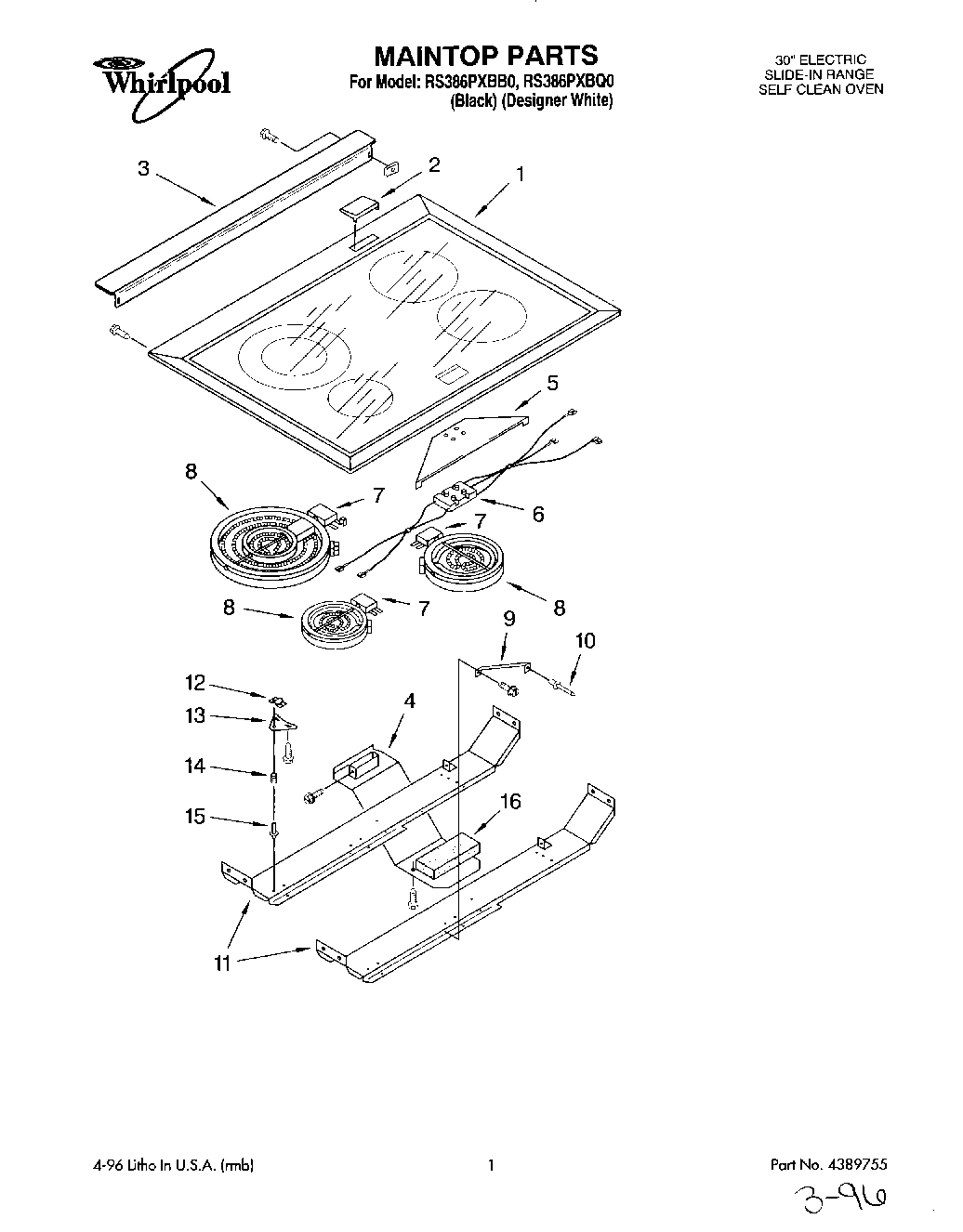

| 1 | Cooktop (Black) |
| 1 | Cooktop (White) |
| 2 | Trim, Vent (White) |
| 2 | Trim, Vent (Black) |
| 3 | Filler Strip |
| 3 | Nut, Speed (2) |
| 4 | Screw |
| 4 | Vent Assembly |
| 5 | Bracket, Ind Light |
| 6 | Light, Indicator |
| 7 | Limiter (2400W - LR) |
| 7 | Limiter (1400W - LF) |
| 7 | Limiter (1900W - RR, RF) |
| 8 | Element, Radiant (Includes No.7) (1400W - LF) |
| 8 | WP8185663 Whirlpool Surface Element |
| 8 | W10823710 Whirlpool Surface Element |
| 9 | WP308685 Whirlpool Microwave Screw |
| 9 | Bracket, Maintop |
| 10 | Rivet, Pop |
| 11 | Support, Element |
| 12 | Clip, Push-On |
| 13 | Bracket, Element |
| 13 | WP90767 Whirlpool Screw |
| 14 | Spring, Element |
| 15 | Stud, Element |
| 16 | Insulation, Flue |
