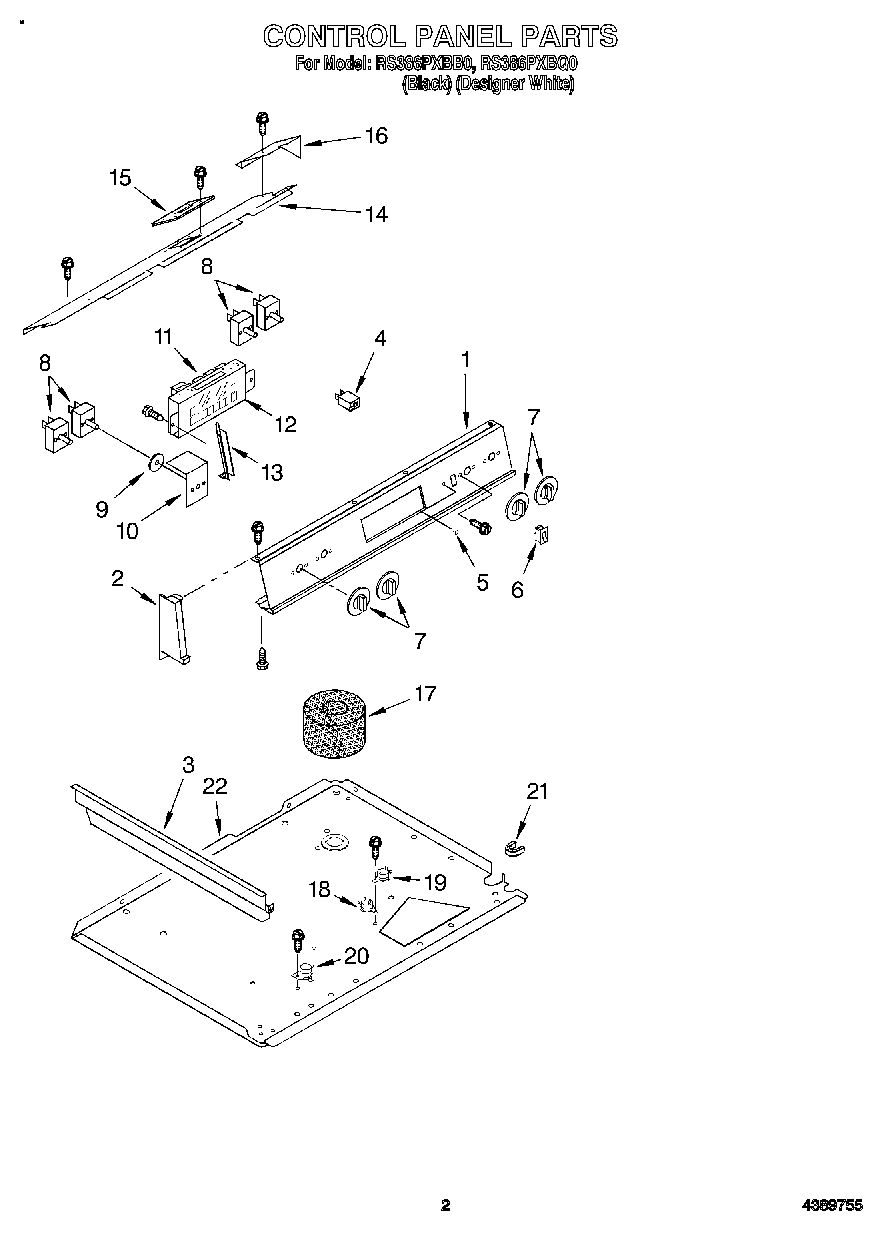

RS386PXBQ0 02 – CONTROL PANELadmin2025-04-26T12:48:40+00:00RS386PXBQ0 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Panel, Control (White) |
| 1 | Panel, Control (Black) |
| 1 | Panel, Control (Screw) |
| 2 | Endcap (Black Left Hand) |
| 2 | WP308685 Whirlpool Microwave Screw |
| 2 | Endcap (White Right Hand) |
| 2 | Endcap (White Left Hand) |
| 2 | Endcap (Black Right Hand) |
| 3 | Screw (2) |
| 3 | Extension, Side (2) |
| 4 | Light, Indicator (Oven) |
| 5 | WP9750343 Whirlpool Light Lens |
| 6 | WP4314961 Whirlpool Lite Switch |
| 6 | WPL 4389370 |
| 7 | Knob, Control (4) |
| 7 | Knob, Control (4) (White) |
| 8 | Switch, Infinite (Screw) |
| 8 | W10900107 Whirlpool Oven Surface Element Switch |
| 9 | Seal, Switch (4) |
| 10 | Shield, Switch (4) |
| 11 | ERC |
| 12 | Plate, Clock (Black) |
| 12 | Plate, Clock (White) |
| 13 | Screw (8) |
| 13 | Bracket, Timer |
| 14 | Cover, Wire |
| 15 | Plate, Cover |
| 16 | Cover, Wire |
| 17 | Seal, Vent |
| 18 | Switch, Limit |
| 19 | Switch, |
| 20 | Switch, |
| 21 | Grommet (Top) |
| 22 | Bottom, Burner Box |
