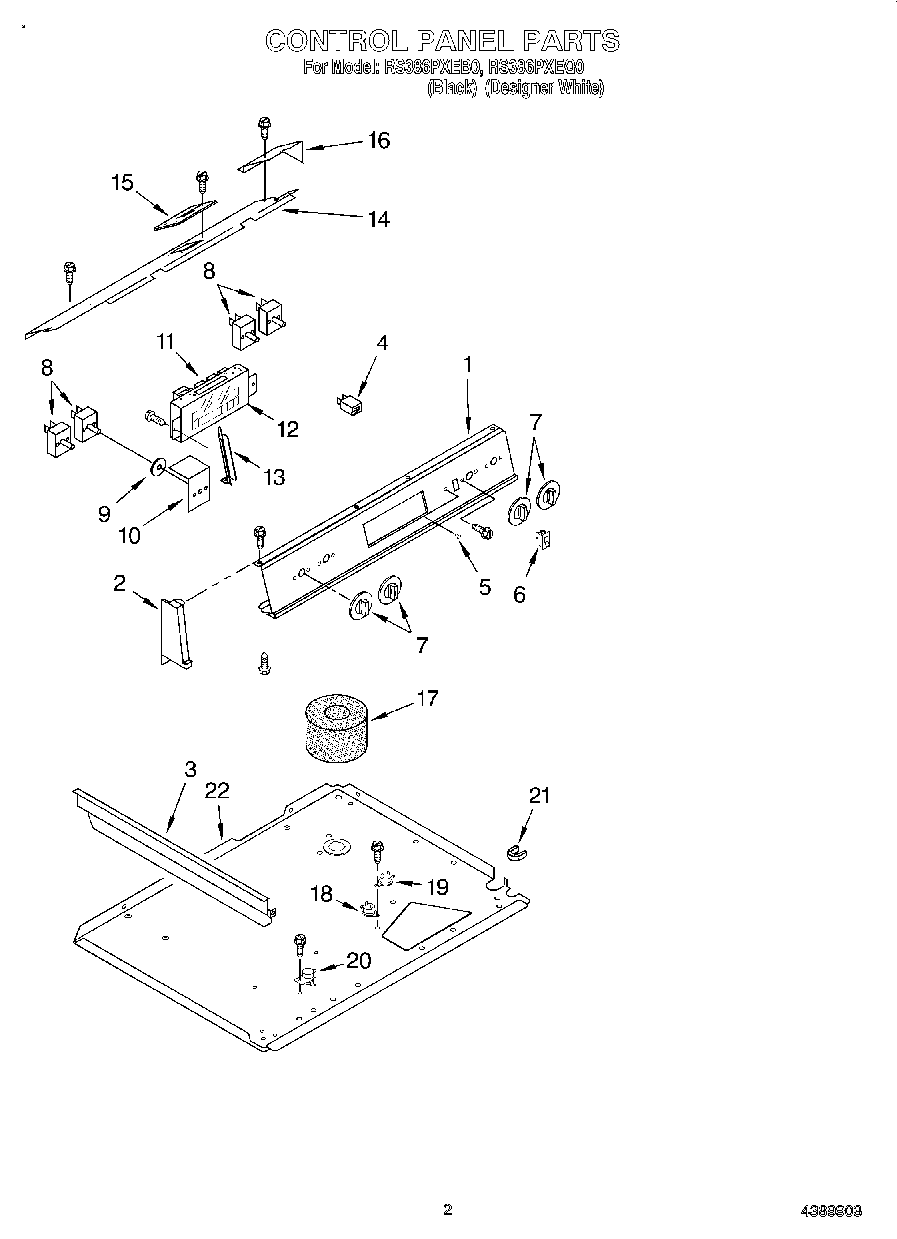

RS386PXEB0 02 – CONTROL PANEL

Products

Position	Product
1	Panel, Control (White)
1	Panel, Control (Black)
1	Panel, Control (Screw)
2	Endcap (Black Left Hand)
2	WP308685 Whirlpool Microwave Screw
2	Endcap (White Right Hand)
2	Endcap (White Left Hand)
2	Endcap (Black Right Hand)
3	Screw (2)
3	Extension, Side (2)
4	Light, Indicator (Oven)
5	WP9750343 Whirlpool Light Lens
6	WP4314961 Whirlpool Lite Switch
6	WPL 4389370
7	Knob, Control (4)
7	Knob, Control (4) (White)
8	Switch, Infinite (Screw)
8	W10900107 Whirlpool Oven Surface Element Switch
9	Seal, Switch (4)
10	Shield, Switch (4)
11	ERC
12	Plate, Clock (Black)
12	Plate, Clock (White)
13	Screw (8)
13	Bracket, Timer
14	Cover, Wire
15	Plate, Cover
16	Cover, Wire
17	Seal, Vent
18	Switch, Limit
19	Switch,
20	Switch,
21	Grommet (Top)
22	Bottom, Burner Box
