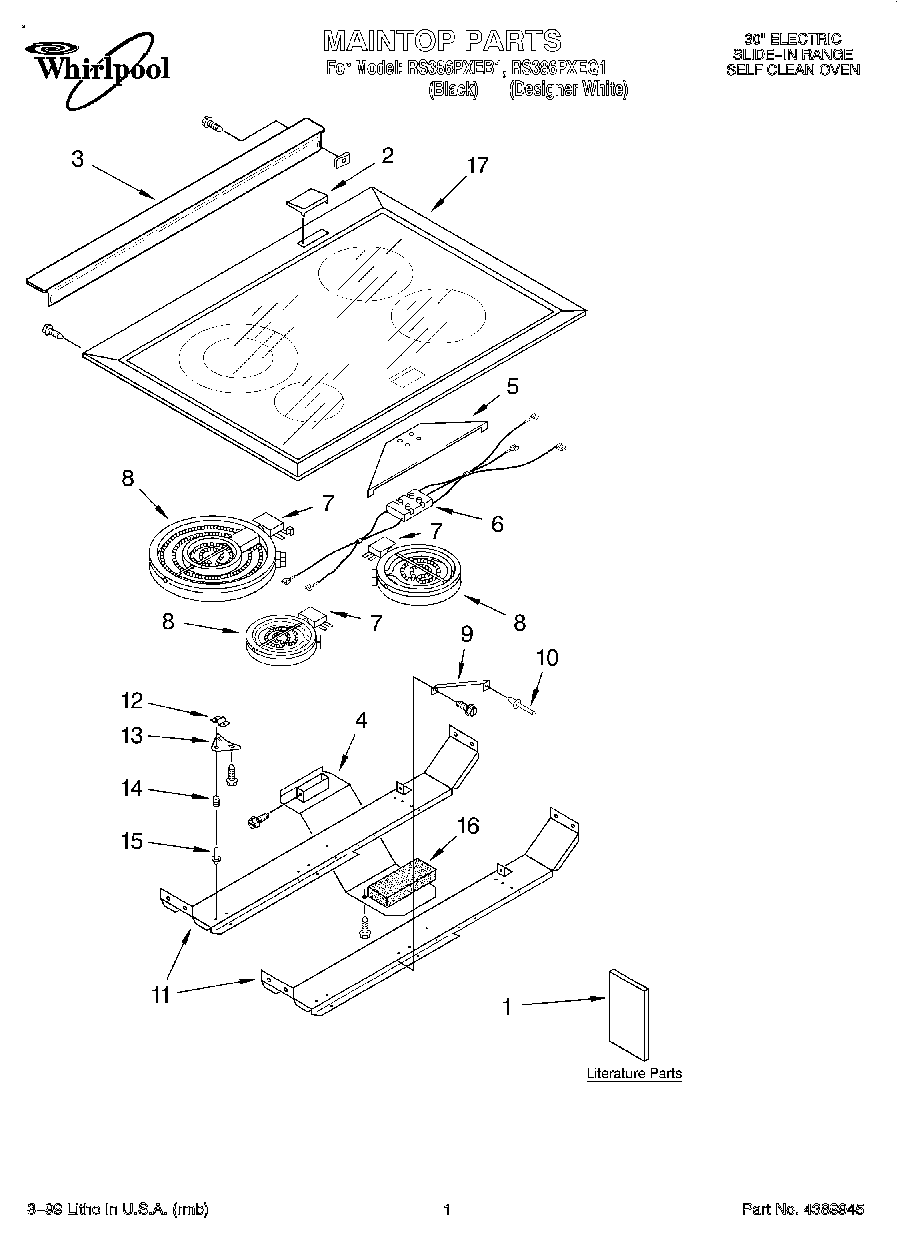

RS386PXEB1 01 – MAINTOP, LITERATURE

Products

Position	Product
1	Use & Care Guide
1	WPL LIT4389354
2	Trim, Vent (White)
2	Trim, Vent (Black)
3	Filler, Backsplash (Black)
3	Nut, Speed (2)
3	Filler, Backsplash (White)
4	Vent Assembly
4	Screw
5	Bracket, Ind Light
6	Light, Indicator
7	Limiter (2400W – LR)
7	Limiter (1400W – LF)
7	Limiter (1900W – RR, RF)
8	WP8185663 Whirlpool Surface Element
8	W10823710 Whirlpool Surface Element
8	Element, Radiant (Includes No.7) (1400W – LF)
9	Bracket, Maintop
10	Rivet, Pop
11	Support, Element
12	Clip, Push-On
13	Bracket, Element
13	WP90767 Whirlpool Screw
14	Spring, Element
15	Stud, Element
16	Insulation, Flue
17	Cooktop (Black)
17	Cooktop (White)
17	WP308685 Whirlpool Microwave Screw
