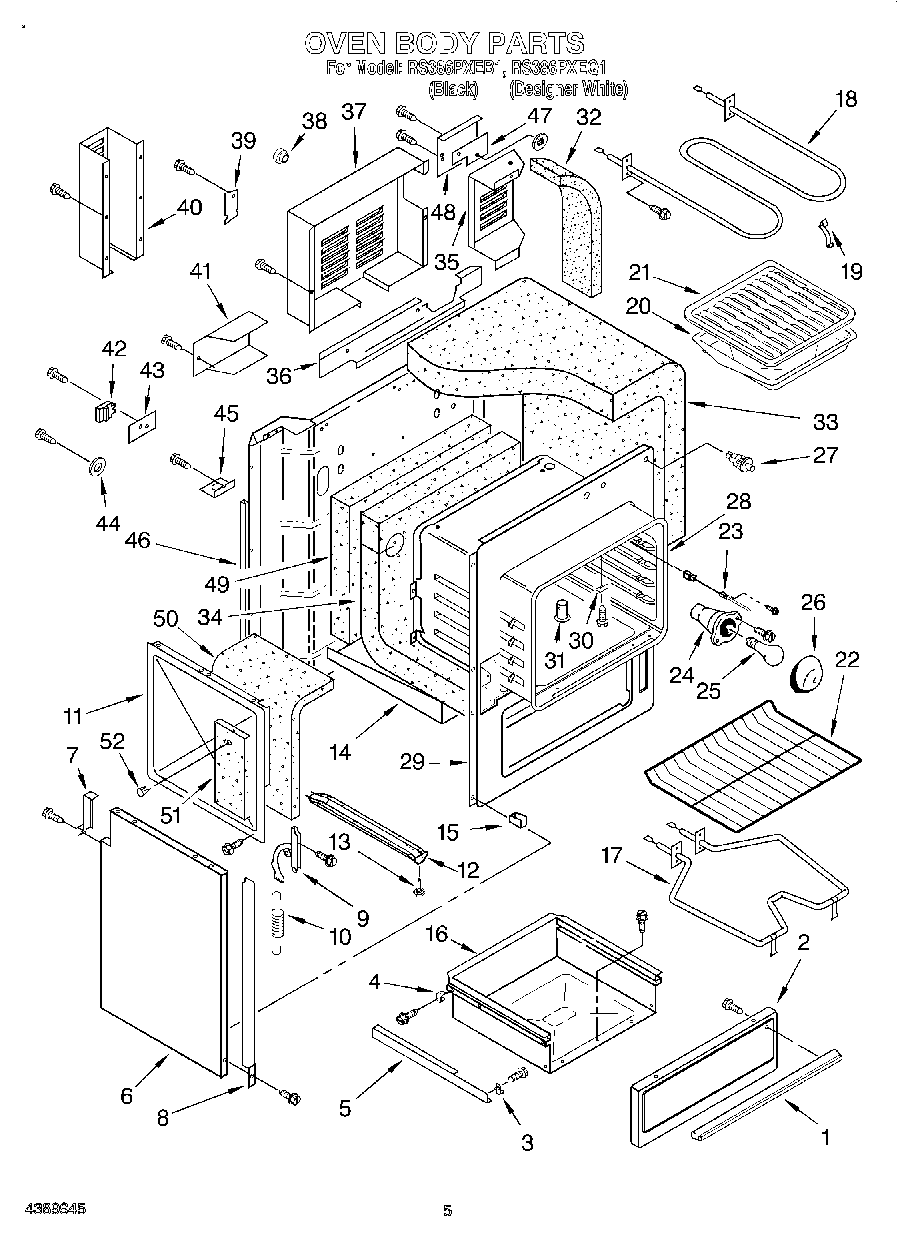

RS386PXEB1 05 – OVEN BODY

Products

Position	Product
1	Handle, Drawer (White)
1	Handle, Drawer
2	Panel, Drawer (Black)
2	Panel, Drawer (White)
3	Screw, Liner
3	WPL 4389477
4	WPL 4389537
4	WPL 4389476
5	WPL 4389470
6	Panel, Bodyside (Left Side)
6	Panel, Bodyside (Right Side)
7	Filler, Rear (2)
8	Trim, Side (White Right Hand)
8	Trim, Side (White Left Hand)
8	Trim, Side (Black Left Hand)
8	Trim, Side (Black Right Hand)
9	Hinge, Oven Door (Left)
9	Screw, Hinge (6)
9	Hinge, Oven Door (Right)
10	Spring, Door (2)
11	Retainer, Side (2)
12	Rail, Base (Includes No. 42)
13	Screw, Leveler (4)
14	Retainer, Lower
15	Spacer (4)
16	Drawer, Storage
17	WB44K5012 GE Oven Bake Element
18	WP4334925 Whirlpool Broil Element
19	Support, Broil (3)
20	4396923 Whirlpool Broil Pan Set Gray Porcelain
22	Rack, Oven (2)
23	Sensor, Oven
23	Screw (8)
24	WPL 4389536
24	Housing, Lite
25	RANGE ONLY 40W 120V APPL BULB
26	Lens, Oven Lite
27	WPL 4389630
28	Body, Oven
29	Frame, Front
30	Cover
31	Tube, Vent
32	Insulation, Top & Side (2)
33	Insulation, Wrap
34	Insulation, Back & Bottom
35	Shield, Wire
36	Support, Top
37	Shield, Upper
38	Bushing, Snap
39	Screw
39	Plate, Flue Cover
40	Cover, Upper Wire
41	Cover, Lite Wire
42	Bracket, Cord
43	Shield, Disconnect
43	Screw (2)
44	Screw, Retainer
44	Washer, Ground
45	Plate, Cord Mtg.
46	WPL 4389695
47	WPL 4389699
47	WP308685 Whirlpool Microwave Screw
48	WPL 4389718
48	Screw (2)
48	WPL 4389698
49	WPL 4389685
50	WPL 4389702
51	WPL 4389722
51	WPL 4389717
51	WPL 4389721
51	WPL 4389700
51	WPL 4389720
51	WPL 4389663
51	WPL 4389471
51	WPL 4389918
