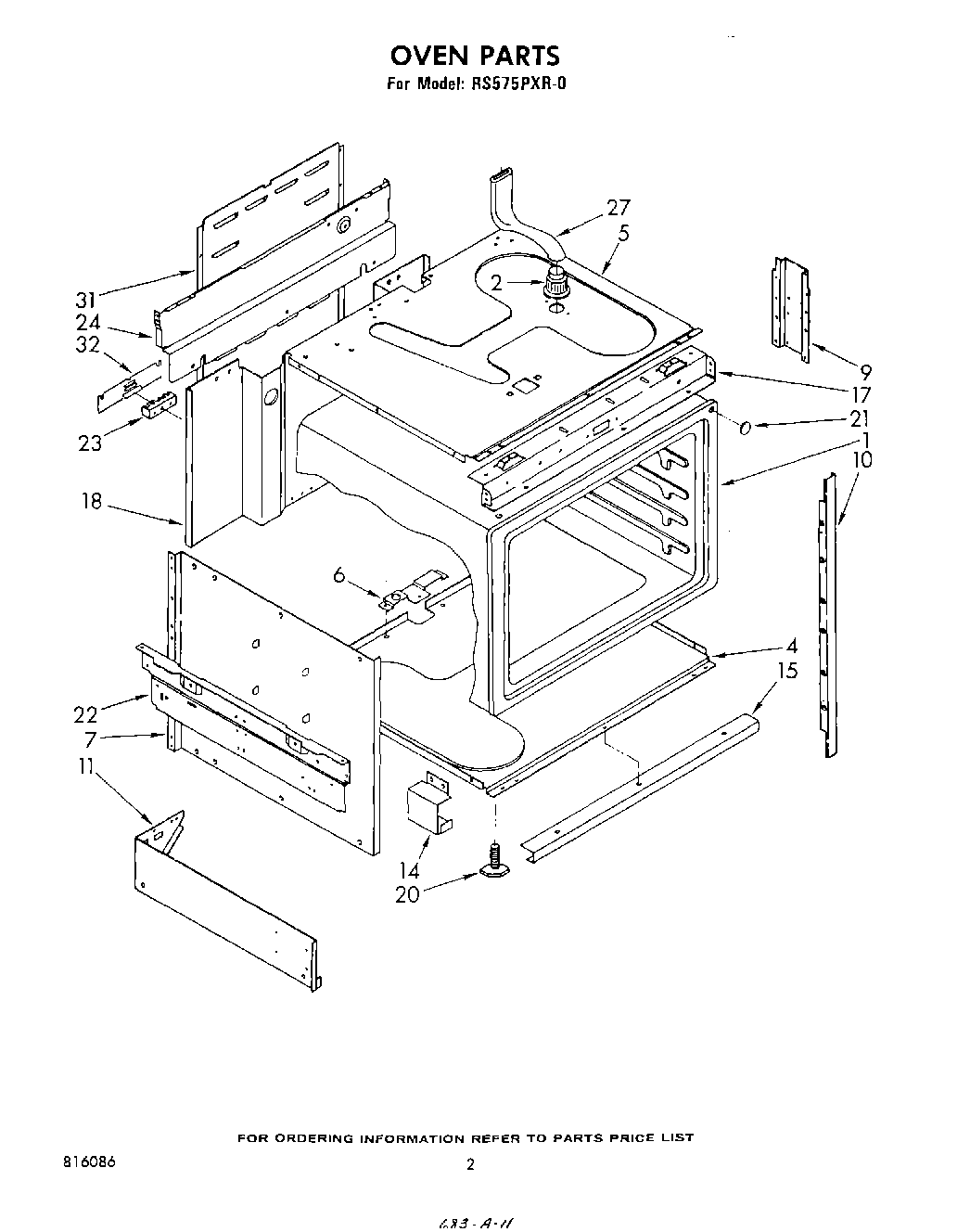

RS575PXR0 02 – OVEN

Products

PositionProduct
1Oven (Conventional)
2Vent Tube
2Screw, 10-24 x 3/8 (2)
4Retainer, Insulation (Bottom)
5Retainer, Insulation (Top)
6Bracket, Conduit
7Retainer, Insulation Side (2)
9Support, Front (2)
10Trim, Oven (Front) (2)
11Side Panel (Lower) (Left Side)
11Side Panel (Lower) (Right Side)
14Shield, Toe (2)
15Channel, Oven Support (Lower)
17Bracket, Cooktop
18Back, Range (Lower)
20Leg Leveler (4)
21Button, Plug
22Panel Side, Upper (2)
23WP8203546 Whirlpool Terminal Block
23Hex Nut, 10-32 (6)
23WPL 834649
24Back, Range (Upper)
27Tube, Oven Vent (Upper)
31Cover Wiring, Low
31Screw, 10-24 x 1/2 (3)
31Washer (3)
32Cover
