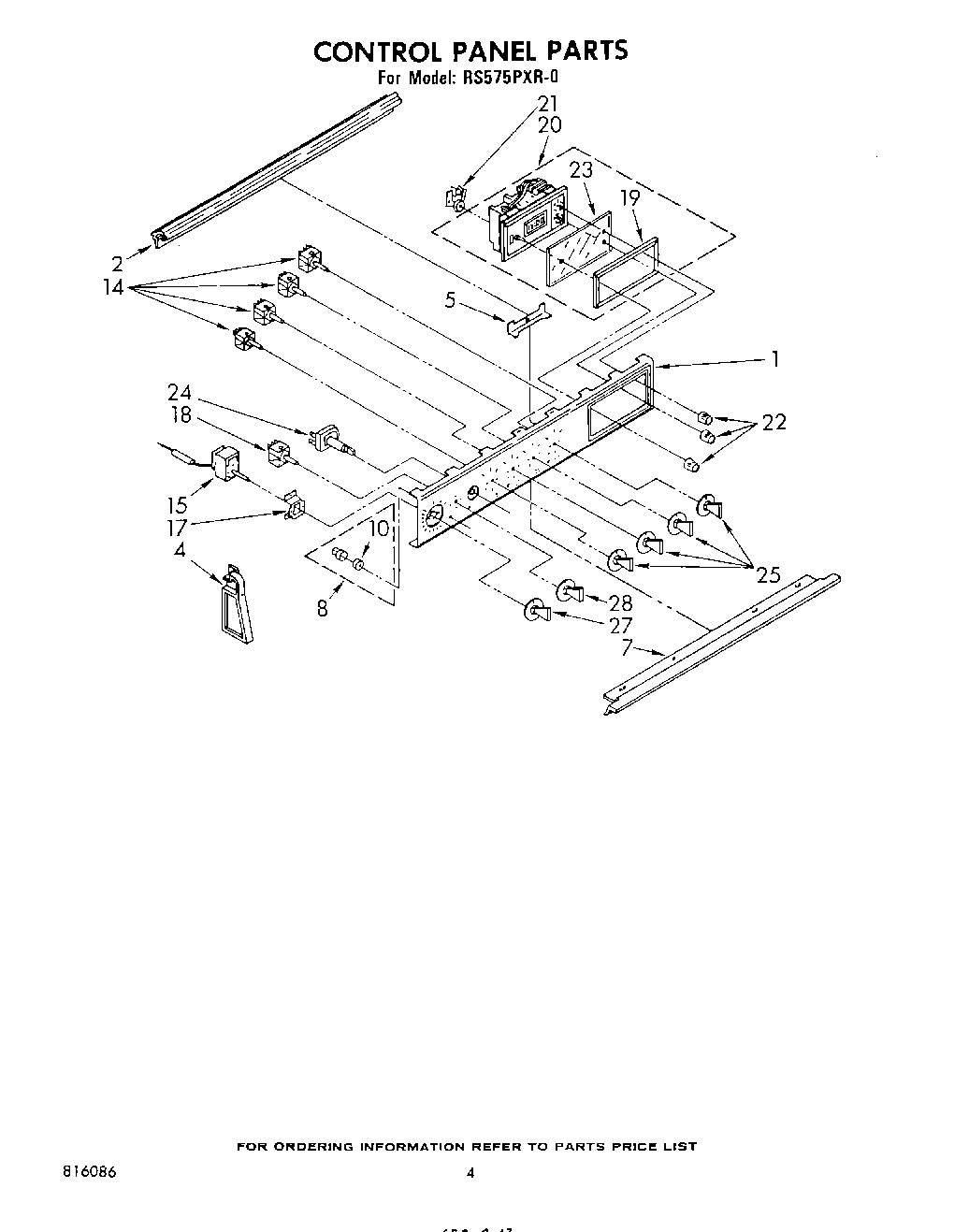

RS575PXR0 03 – CONTROL PANEL

Products

Position	Product
1	Panel, Control
2	Rail, Control Panel (Bottom)
2	Rail, Control Panel (Top)
2	Screw, 10-24 x 1/2 (3)
4	End Cap L.H.
4	End Cap R.H.
4	WP965173 Whirlpool Dishwasher Screw
5	Bracket, Control Panel (Lower)
5	Screw, 8-32 x 3/8 (2)
5	Bracket, Control Panel (Upper)
7	W11693756 Whirlpool Screw Assembly
7	Washer, Flat (4)
7	Deflector, Heat
8	Light, Indicator (125V) (Right Module, Left Module, Oven Clean)
8	Light, Indicator (Lock, Oven)
10	Lens, Pilot Light (2)
14	W10900107 Whirlpool Oven Surface Element Switch
15	Thermostat
17	Bracket, Thermostat Mounting
18	Switch, Selector (Main Oven)
18	Screw, 8-32 x 3/16 (2)
19	WPL 834764
20	Timer, Range (Includes Illus. 21 & 22)
21	WPL 866403
22	Knob, Timer (3)
23	Glass, Clock
24	WPL 98754
24	Switch, Oven Light
24	Nut, Knurled 3/8-27
25	Control Knob (4) (Surface Unit)
27	WPL 868997
28	WPL 868998
