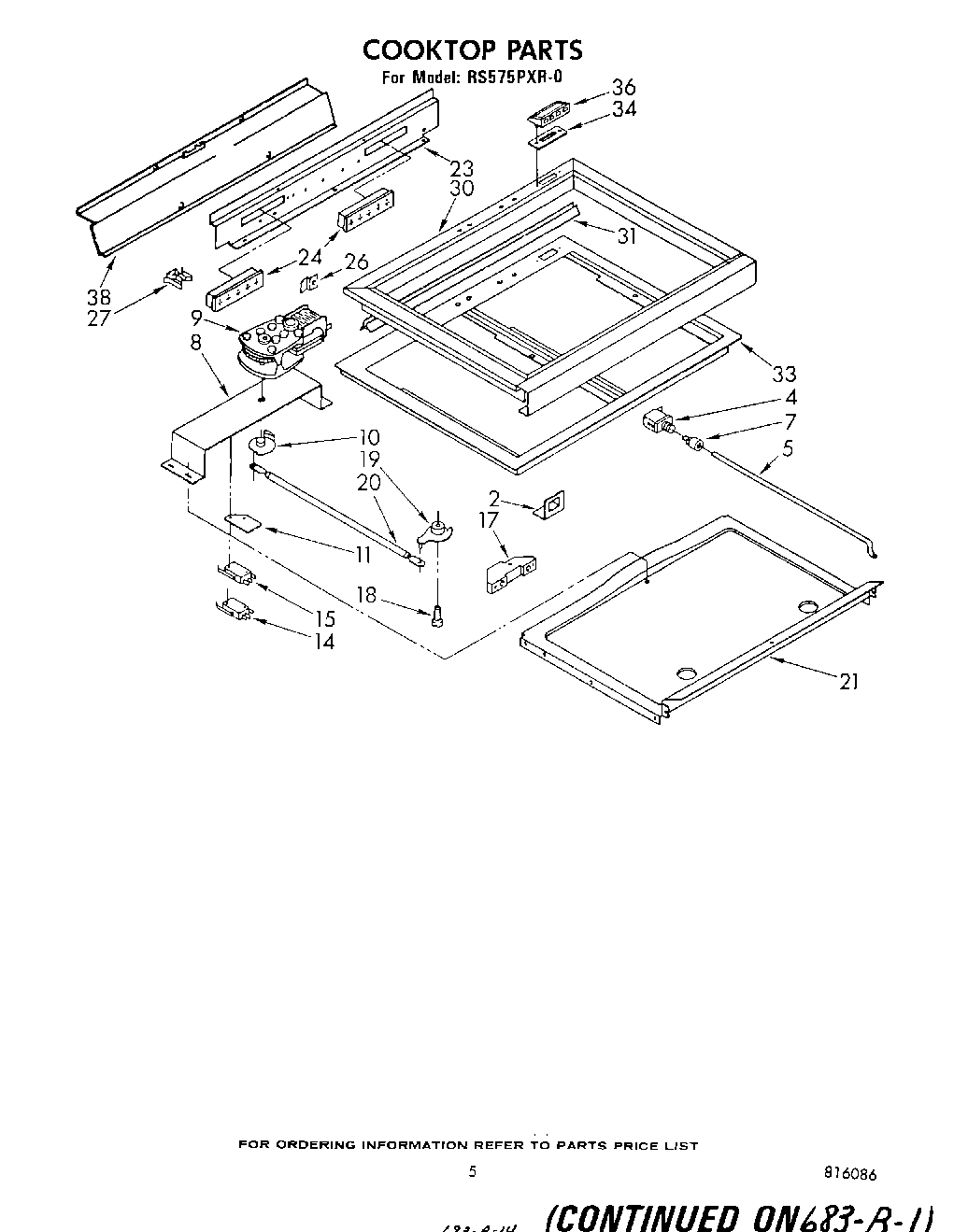

RS575PXR0 04 – COOK TOP

Products

Position	Product
2	Bracket, Door Switch
4	WP8283288 Whirlpool Door Switch
5	Push Rod, Switch
7	Rod End, Switch
8	Support, Latch Motor
9	Motor, Door Latch (Screw, 8-32 x 5/16 (2))
9	motor, door latch (alternate)
9	Motor (Alternate)
9	Motor (Alternate)
9	Motor, Door Latch (Alternate)
10	Cam, Door Latch (Alternate)
10	cam, door latch (alternate)
10	Cam, Door Latch (Pin, Spring)
11	Insulator, Limit Switch (3)
14	Switch, Lower Limit (Alternate)
14	Switch, Lower Limit (2) (Alternate)
15	Switch, Upper Limit (Alternate)
15	Switch, Upper Limit (Alternate)
15	Switch, Upper Limit (Screw, 4-40 x 1-1/4 (2))
17	Housing, Latch
17	Washer
18	Pin, Hinge (2)
19	Latch, Door
20	Cam, Door Latch (Pushnut, 3/16“)
20	Tie Bar
21	Screw,10-24 x 1/2
21	Panel, Subtop
23	WP486579 Whirlpool Air Conditioner Screw
23	Shield, Wire
24	Receptacle, Female (2)
26	Clip, Receptacle (4)
27	Terminal Female
30	Frame, Cooktop
31	WPL 866454
33	Screw 10-24 x 1/2
33	WPL 868959
33	Cooktop, Modular
34	Gasket, Ve
36	WPL 816082
36	WPL 877733
38	Screw, 10-24 x 1/2 (3)
38	WPL 816080
