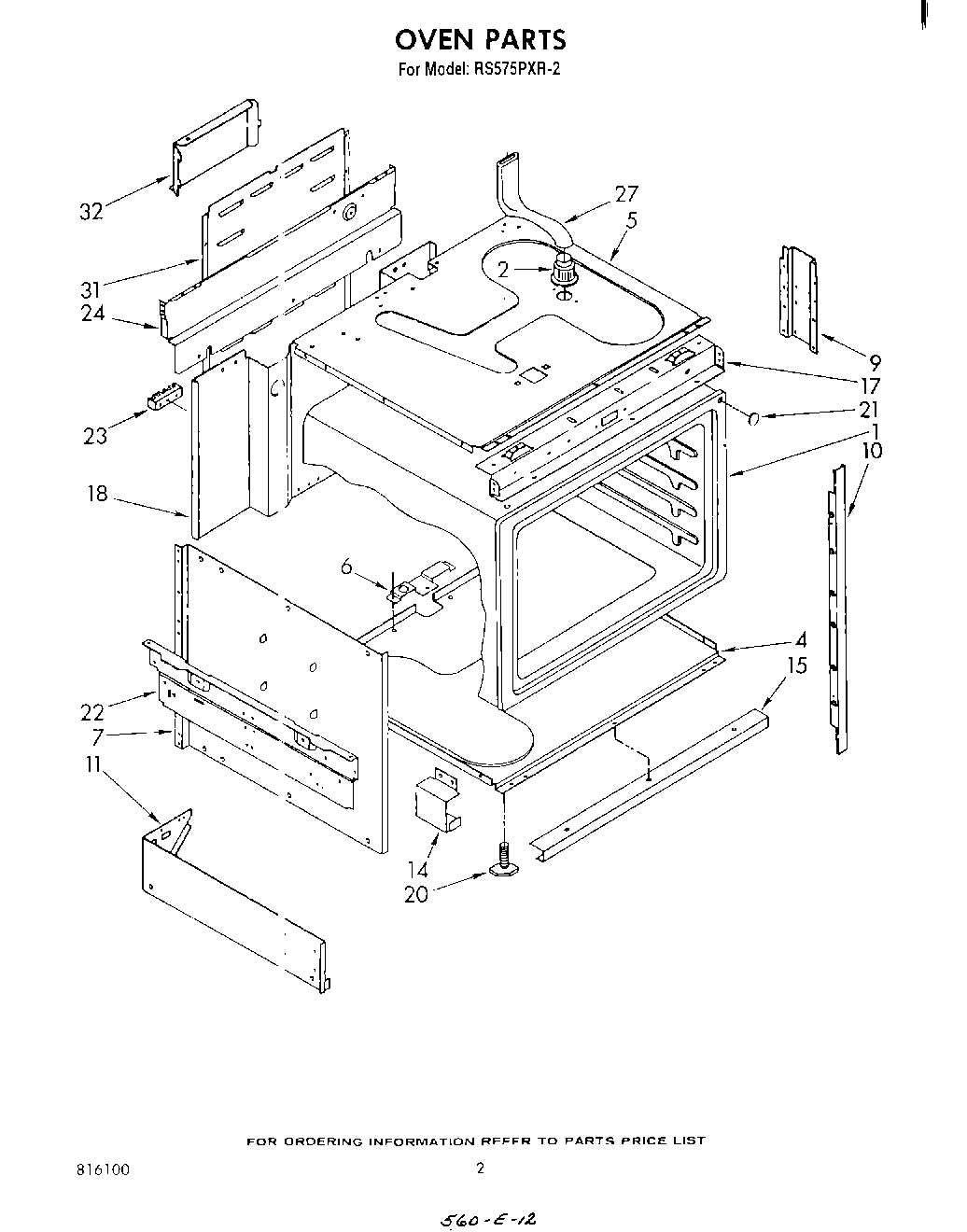

RS575PXR2 02 – OVEN

Products

Position	Product
1	Oven (Conventional)
2	Vent Tube
2	Screw, 10-24 x 3/8 (2)
4	Retainer, Insulation (Bottom)
5	Retainer, Insulation (Top)
6	Bracket, Conduit
7	Retainer, Insulation Side (2)
9	Support, Front (2)
10	Trim, Oven (Front) (2)
11	Side Panel (Lower) (Right Side)
11	Side Panel (Lower) (Left Side)
14	Shield, Toe (2)
15	Channel, Oven Support (Lower)
17	Bracket, Cooktop
18	Screw,10-24 x 1/2
18	Back, Range (Lower)
20	Leg Leveler (4)
21	Button, Plug
22	Panel Side, Upper (2)
23	Hex Nut, 10-32 (6)
23	WPL 834649
23	WP8203546 Whirlpool Terminal Block
24	Back, Range (Upper)
27	Tube, Oven Vent (Upper)
31	Washer (3)
31	Screw, 10-24 x 1/2 (3)
31	WPL 816109
32	Deflector, Air
