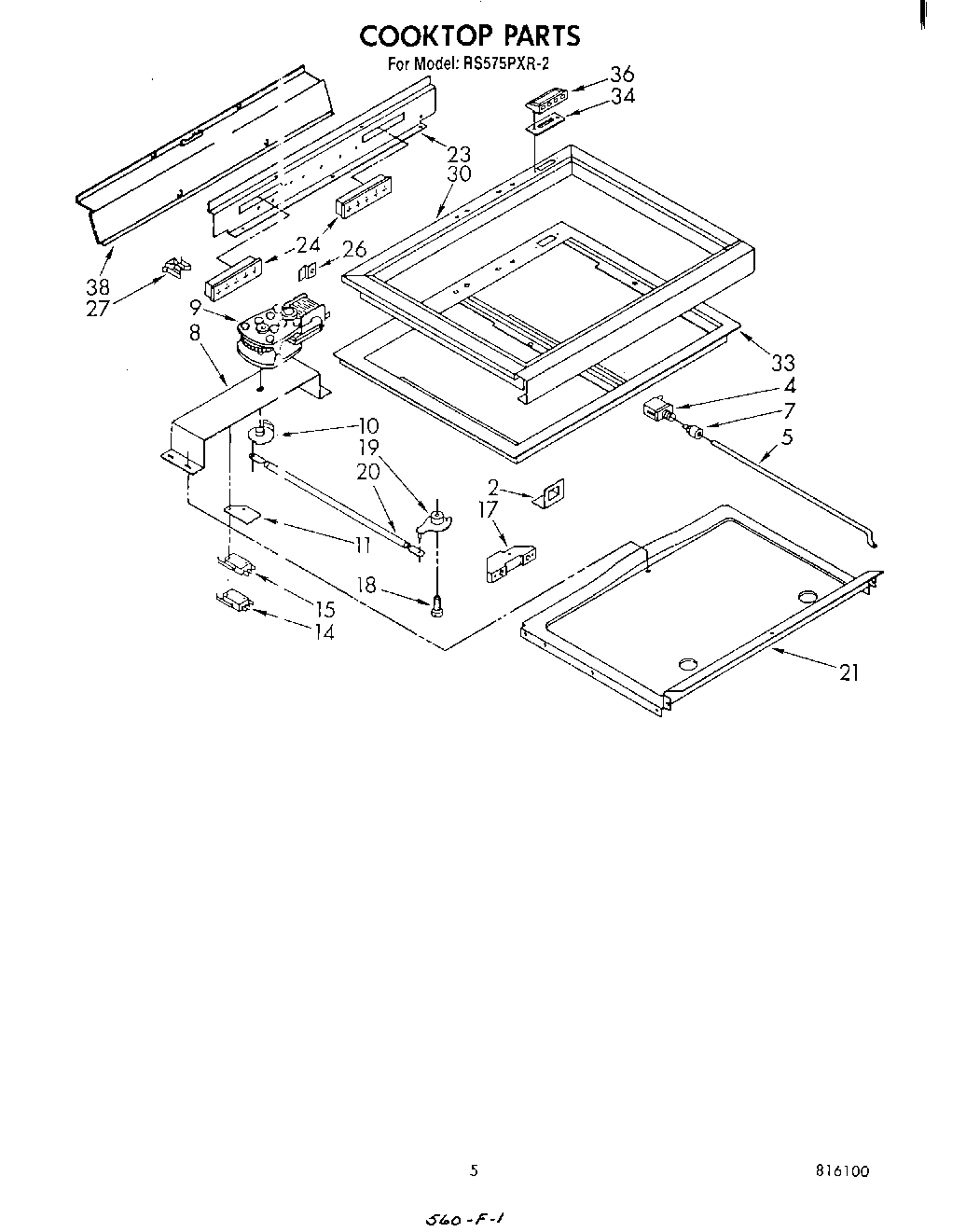

RS575PXR2 04 – COOK TOP

Products

Position	Product
2	Bracket, Door Switch
4	WP8283288 Whirlpool Door Switch
5	Push Rod, Switch
7	Rod End, Switch
8	Support, Latch Motor
9	Motor
10	Cam, Door Latch
10	Pin, Spring
11	Insulator, Limit Switch (3)
14	Switch, Lower Limit (2) (Alternate)
14	Switch, Lower Limit (Alternate)
15	Switch, Upper Limit (Screw, 4-40 x 1-1/4 (2))
15	Switch, Upper Limit (Alternate)
15	Switch, Upper Limit (Alternate)
17	Housing, Latch
17	Washer
18	Pin, Hinge (2)
19	Latch, Door
20	Bar Tie
21	Screw,10-24 x 1/2
21	Panel, Subtop
23	Shield, Wire
23	WP486579 Whirlpool Air Conditioner Screw
24	Receptacle, Female (2)
26	Clip, Receptacle (4)
27	Terminal Female
30	Frame, Cooktop
33	Screw 10-24 x 1/2
33	WPL 868959
33	Cooktop, Modular
34	Gasket, Ve
36	WPL 816082
36	WPL 877733
38	Screw, 10-24 x 1/2 (3)
38	WPL 816080
