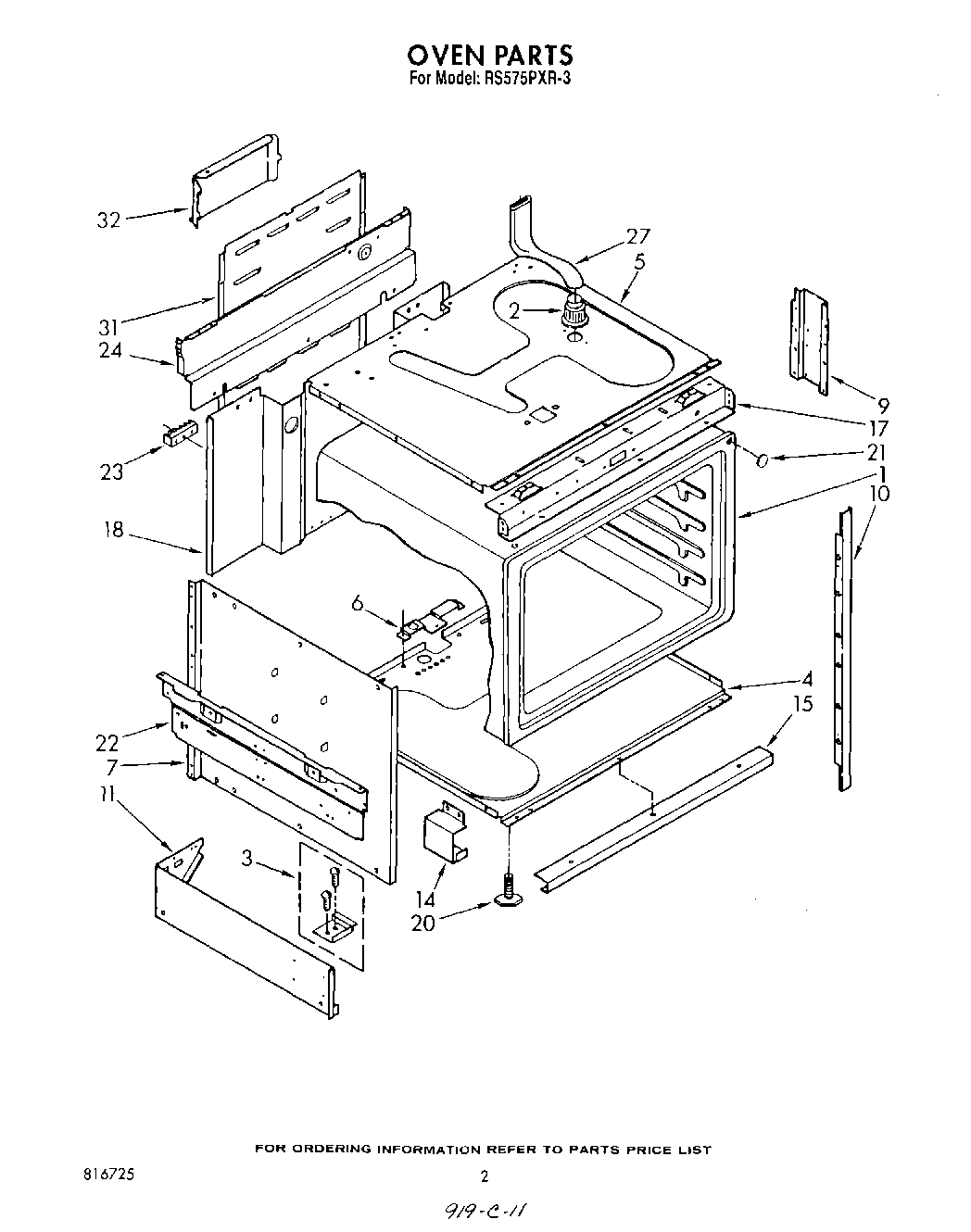

RS575PXR3 02 – OVEN

Products

PositionProduct
1Oven, Self Clean
2Screw, 10-24 x 3/8 (2)
2Vent Tube
3Anti-Tip Kit
4Shield, Bottom Insulation
5Retainer, Insulation (Top)
6Bracket, Conduit
7Retainer, Insulation Side (2)
9Support, Front (2)
10Trim, Oven (Front) (2)
11Side Panel (Lower) (Right Side)
11Side Panel (Lower) (Left Side)
14Shield, Toe (2)
15Channel, Oven Support (Lower)
17Bracket, Cooktop
18Back, Range (Lower)
18Screw,10-24 x 1/2
20Leg Leveler (4)
21Button, Plug
22Panel Side, Upper (2)
23WPL 834649
23Hex Nut, 10-32 (6)
23WP8203546 Whirlpool Terminal Block
24Back, Range (Upper)
27Tube, Oven Vent (Upper)
31Screw, 10-24 x 1/2 (3)
31WPL 816109
31Washer (3)
32Deflector, Air
