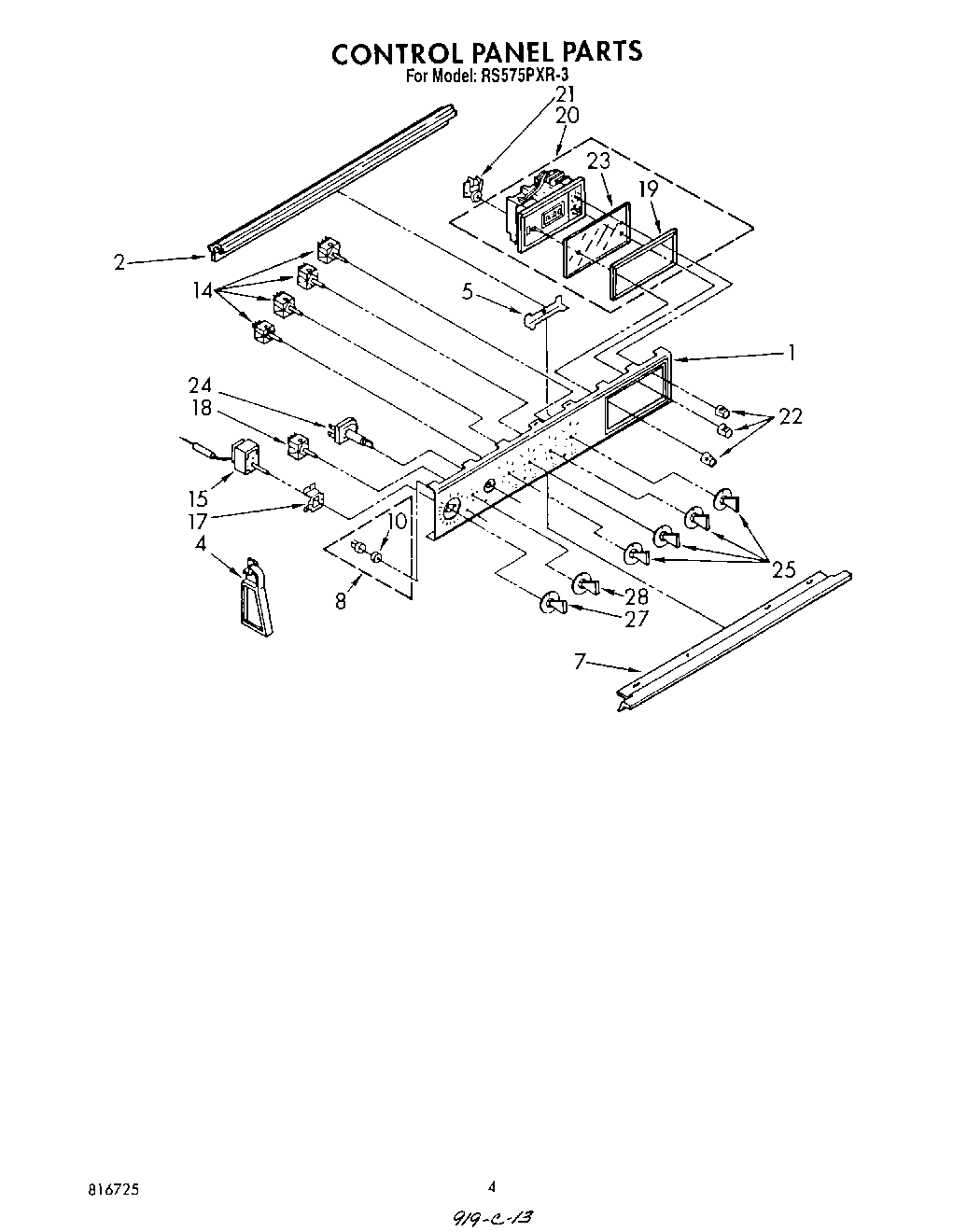

RS575PXR3 03 – CONTROL PANELadmin2025-04-26T12:48:32+00:00RS575PXR3 03 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Panel, Control |
| 2 | Rail, Control Panel (Bottom) |
| 2 | Rail, Control Panel (Top) |
| 2 | Screw, 10-24 x 1/2 (3) |
| 4 | End Cap L.H. |
| 4 | End Cap R.H. |
| 4 | WP965173 Whirlpool Dishwasher Screw |
| 5 | Bracket, Control Panel (Lower) |
| 5 | Screw, 8-32 x 3/8 (2) |
| 5 | Bracket, Control Panel (Upper) |
| 7 | W11693756 Whirlpool Screw Assembly |
| 7 | Washer, Flat (4) |
| 7 | Deflector, Heat |
| 8 | Light, Indicator (125V) (Right Module, Left Module, Oven Clean) |
| 8 | Light, Indicator (Lock, Oven) |
| 10 | Lens, Pilot Light (2) |
| 14 | W10900107 Whirlpool Oven Surface Element Switch |
| 15 | Thermostat |
| 17 | Bracket, Thermostat Mounting |
| 18 | Switch, Selector (Main Oven) |
| 18 | Screw, 8-32 x 3/16 (2) |
| 19 | WPL 834764 |
| 20 | Timer, Range (Includes Illus. 21 & 22) |
| 21 | WPL 866403 |
| 22 | Knob, Timer (3) |
| 23 | Glass, Clock |
| 24 | WPL 98754 |
| 24 | Switch, Oven Light |
| 24 | Nut, Knurled 3/8-27 |
| 25 | Control Knob (4) (Surface Unit) |
| 27 | WPL 868997 |
| 28 | WPL 868998 |
