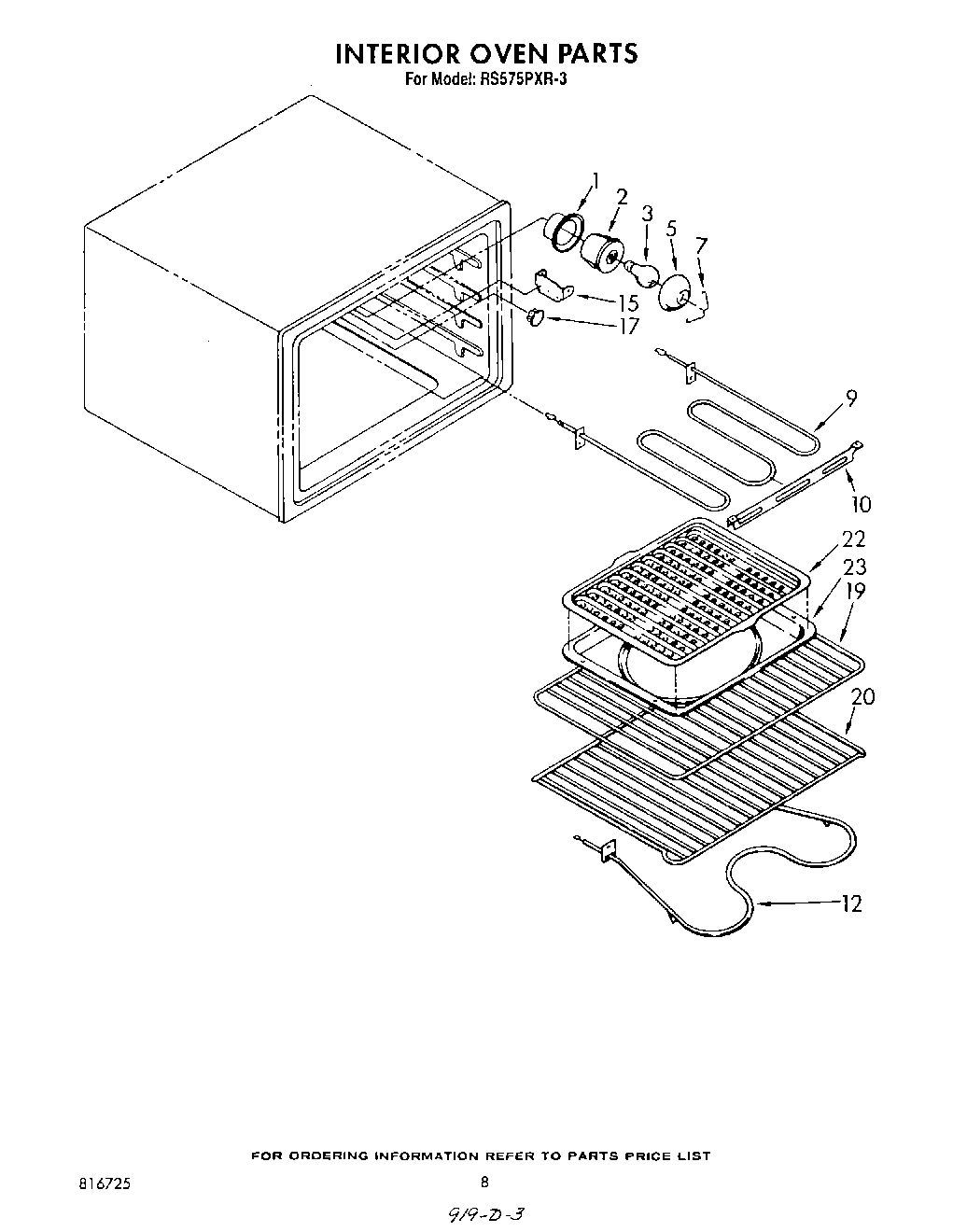

RS575PXR3 06 – INTERIOR OVEN

Products

Position	Product
1	Cup, Light
2	W10856866 Whirlpool Light Socket
3	RANGE ONLY 40W 120V APPL BULB
5	Lens, Light
7	Retainer, Lens
9	Unit, Broil
9	Unit, Broiler (208V)
10	Hanger, Broil Unit
12	WP865940 Whirlpool Bake Element
12	Unit, Bake (Alternate (208V))
15	Unit Bake (Screw, 10-24 x 1/2 (2))
15	Bracket, Thermo Bulb
17	Plug, Button
19	WPL 865983
20	WPL 877951
22	4396923 Whirlpool Broil Pan Set Gray Porcelain
23	Pan, Broiler
