RS575PXR4 02 – OVEN

RS575PXR4 02 – OVEN

Written by

in

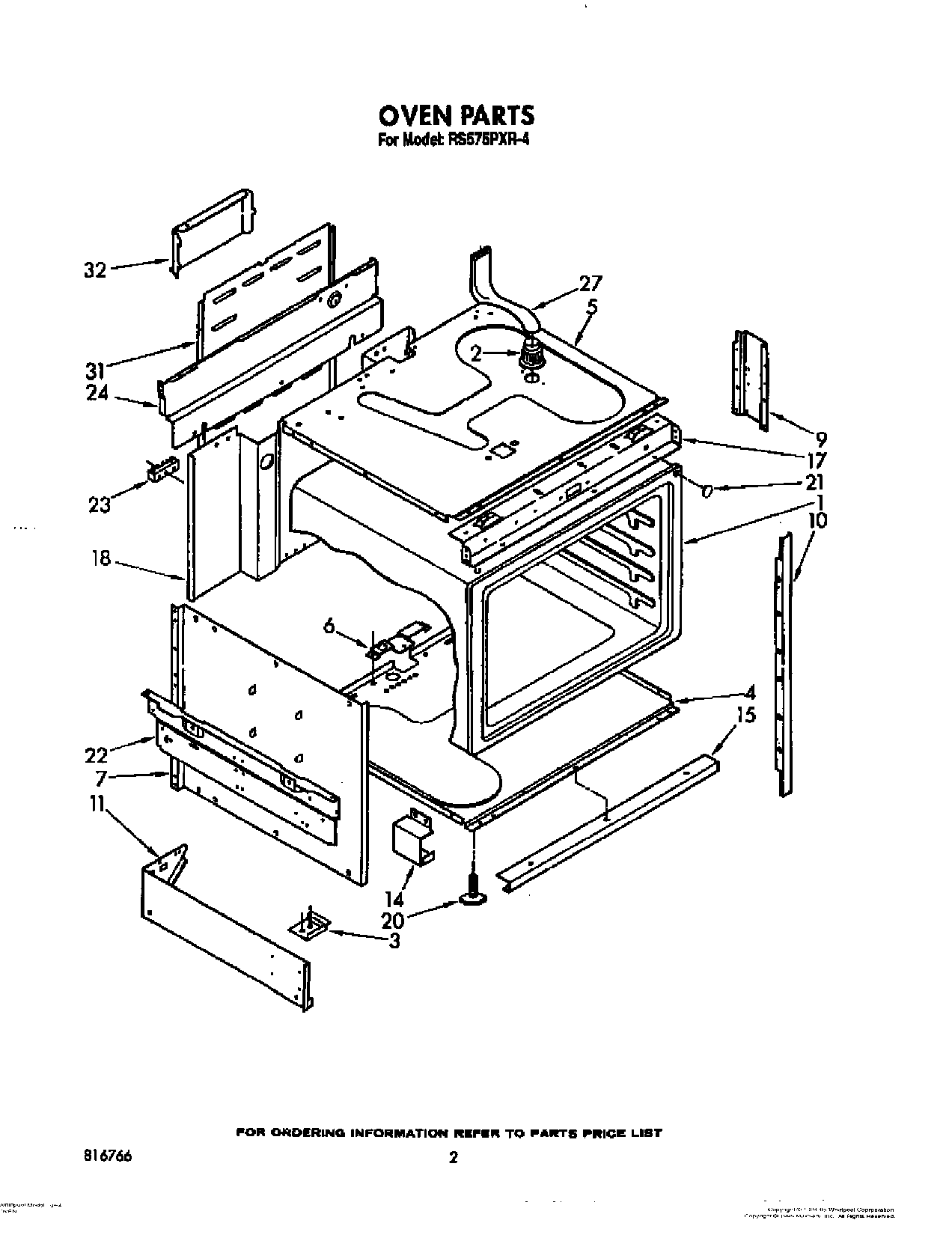

RS575PXR4 02 – OVEN

Products

Position	Product
1	Oven, Self Clean
2	Screw, 10-24 x 3/8 (2)
2	Vent Tube
3	Bracket, Anti-Tip (Right Side)
3	Bracket, Anti-Tip (Left Side)
4	Shield, Bottom Insulation
5	Retainer, Insulation (Top)
6	Bracket, Conduit
7	Retainer, Insulation Side (2)
9	Support, Front (2)
10	Trim, Oven (Front) (2)
11	Side Panel (Lower) (Right Side)
11	Side Panel (Lower) (Left Side)
14	Shield, Toe (2)
15	Channel, Oven Support (Lower)
17	Bracket, Cooktop
18	Screw,10-24 x 1/2
18	Back, Range (Lower)
20	Leg Leveler (4)
21	Button, Plug
22	Panel Side, Upper (2)
23	Hex Nut, 10-32 (6)
23	WPL 834649
23	WP8203546 Whirlpool Terminal Block
24	Back, Range (Upper)
27	Tube, Oven Vent (Upper)
31	Washer (3)
31	Screw, 10-24 x 1/2 (3)
31	WPL 816109
32	Deflector, Air
