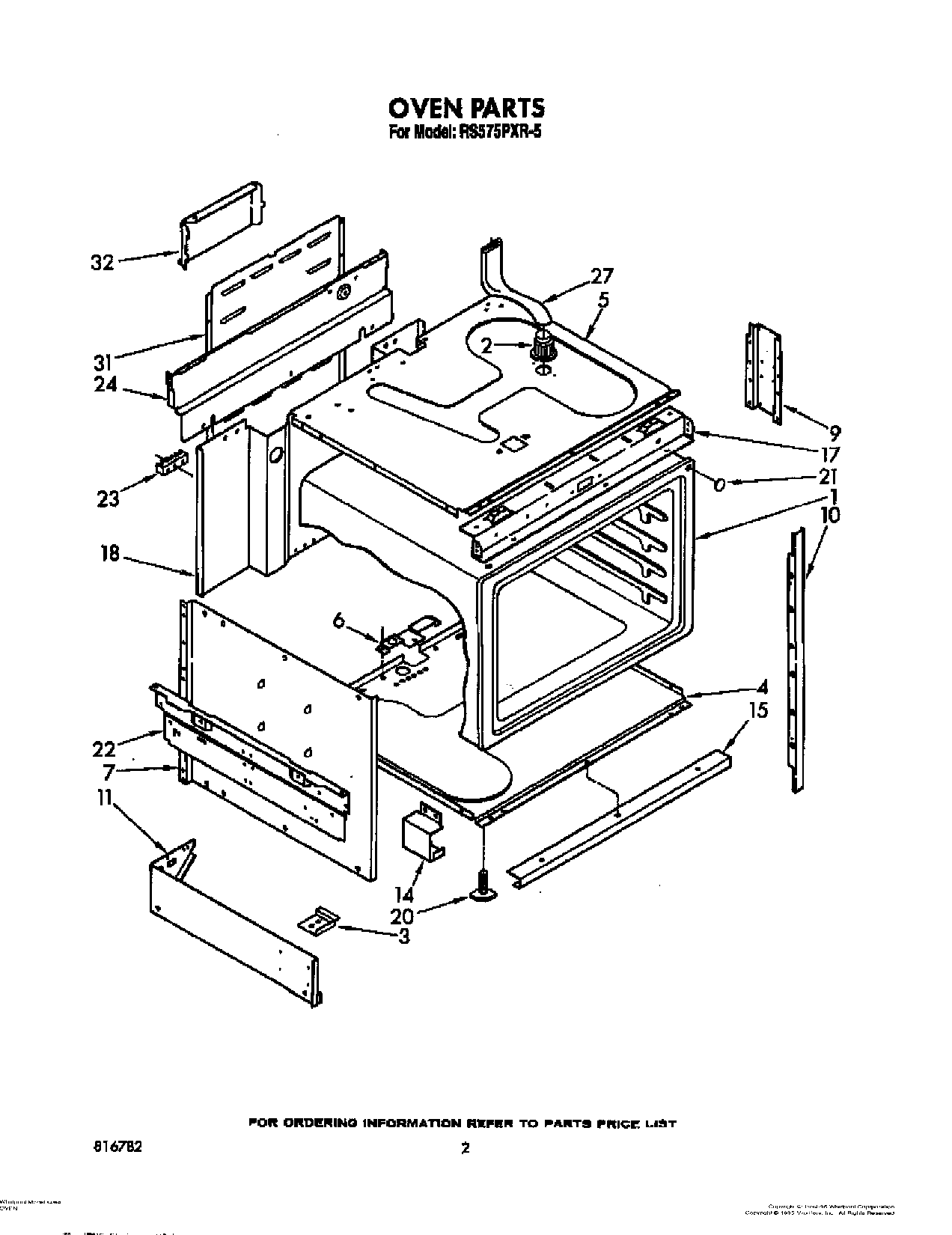

RS575PXR5 02 – OVEN

Products

Position	Product
1	Oven, Self Clean
2	Vent Tube
2	Screw, 10-24 x 3/8 (2)
3	Bracket, Anti-Tip
4	Shield, Bottom Insulation
5	Retainer, Insulation (Top)
6	Bracket, Conduit
7	Retainer, Insulation Side (2)
9	Support, Front (2)
10	Trim, Oven (Front) (2)
11	Side Panel (Lower) (Right Side)
11	Side Panel (Lower) (Left Side)
14	Shield, Toe (2)
15	Channel, Oven Support (Lower)
17	Bracket, Cooktop
18	Screw,10-24 x 1/2
18	Back, Range (Lower)
20	Leg Leveler (4)
21	Button, Plug
22	Panel Side, Upper (2)
23	Hex Nut, 10-32 (6)
23	WP8203546 Whirlpool Terminal Block
23	WPL 834649
24	Back, Range (Upper)
27	Tube, Oven Vent (Upper)
31	Screw, 10-24 x 1/2 (3)
31	WPL 816109
31	Washer (3)
32	Deflector, Air
