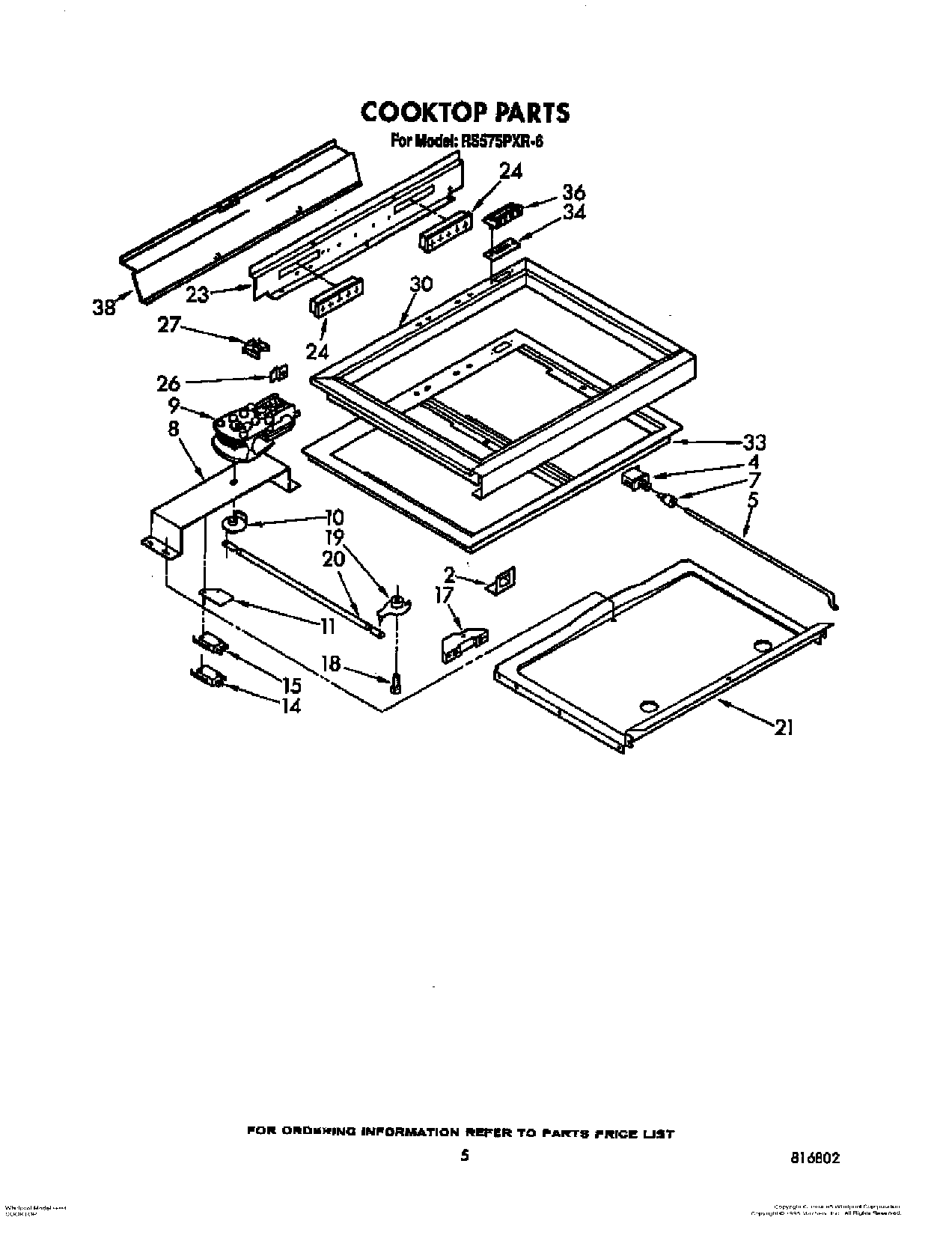

| 2 | Bracket, Cooktop |
| 4 | WP8283288 Whirlpool Door Switch |
| 5 | Push Rod, Switch |
| 7 | Rod End, Switch |
| 8 | Support, Latch Motor |
| 9 | Motor |
| 10 | Cam, Door Latch |
| 10 | Pin, Spring |
| 11 | Insulator, Limit Switch (3) |
| 14 | Switch, Lower Limit (2) (Alternate) |
| 14 | Switch, Lower Limit (Alternate) |
| 15 | Switch, Upper Limit (Screw, 4-40 x 1-1/4 (2)) |
| 15 | Switch, Upper Limit (Alternate) |
| 15 | Switch, Upper Limit (Alternate) |
| 17 | Housing, Latch |
| 17 | Washer |
| 18 | Pin, Hinge (2) |
| 19 | Latch, Door |
| 20 | Bar Tie |
| 21 | Screw,10-24 x 1/2 |
| 21 | Panel, Subtop |
| 23 | Shield, Wire |
| 23 | WP486579 Whirlpool Air Conditioner Screw |
| 24 | Receptacle, Female (2) |
| 26 | Clip, Receptacle (4) |
| 27 | Terminal Female |
| 30 | Frame, Cooktop |
| 33 | Screw 10-24 x 1/2 |
| 33 | WPL 868959 |
| 33 | Cooktop, Modular |
| 34 | Gasket, Ve |
| 36 | WPL 816082 |
| 36 | WPL 877733 |
| 38 | Screw, 10-24 x 1/2 (3) |
| 38 | WPL 816080 |
