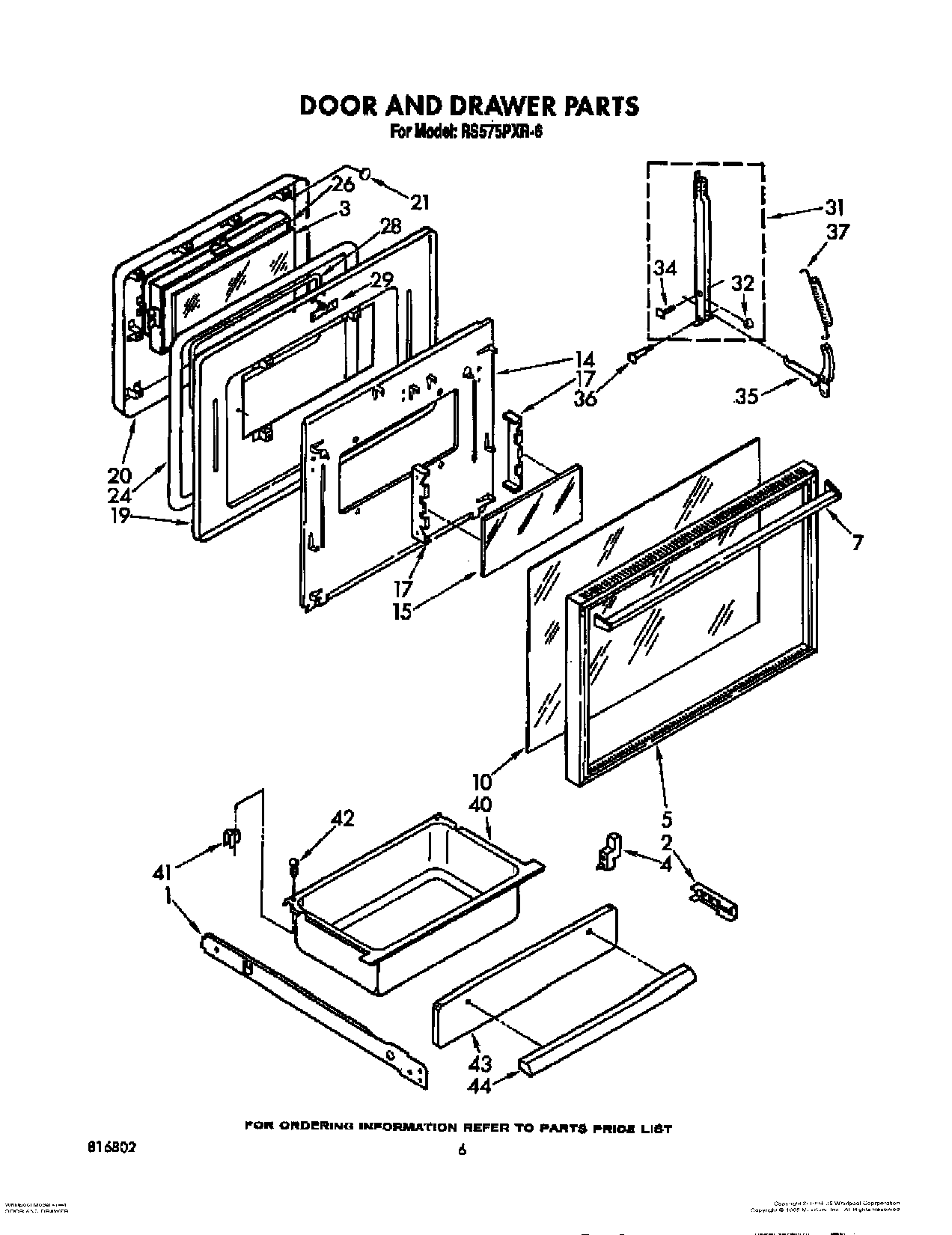

RS575PXR6 05 – DOOR AND DRAWERadmin2025-04-26T12:47:34+00:00RS575PXR6 05 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 1 | Rail, Drawer (Right Side) |
| 1 | Rail, Drawer (Left Side) |
| 2 | Spacer, Drawer Rail (2) |
| 3 | Glass, Heat Barrier (2) |
| 4 | Guide, Drawer (Front) |
| 4 | WPL 834649 |
| 5 | Frame, Oven Door |
| 7 | Handle, Door |
| 7 | Screw, 6-32 x 1/2 (4) |
| 10 | Glass, Outer (Black) |
| 14 | 340184 Whirlpool Screw |
| 14 | Panel, Insulation |
| 15 | Glass, Inner |
| 17 | Retainer, Glass |
| 19 | Retainer, Insulation |
| 20 | Baffle |
| 21 | Plug Button 3/16`` (2) |
| 24 | Seal, Oven Door |
| 26 | Collar, Glass |
| 28 | Seal, Glass |
| 28 | Screw, 10-24 x 1/2 (3) |
| 29 | Strike |
| 31 | Screw 10-24 x 1/2 |
| 31 | Channel Assembly |
| 32 | Washer |
| 32 | Roller, Stop (2) |
| 34 | Rivet (2) |
| 35 | Arm Assembly (2) |
| 36 | Pin, Hinge (2) |
| 37 | Spring, Door (2) |
| 40 | Drawer Assembly |
| 40 | Nut, 10-24 (2) |
| 41 | Guide, Drawer |
| 43 | Panel, Drawer Black |
| 44 | Handle, Drawer |
| 44 | WPL 877903 |
