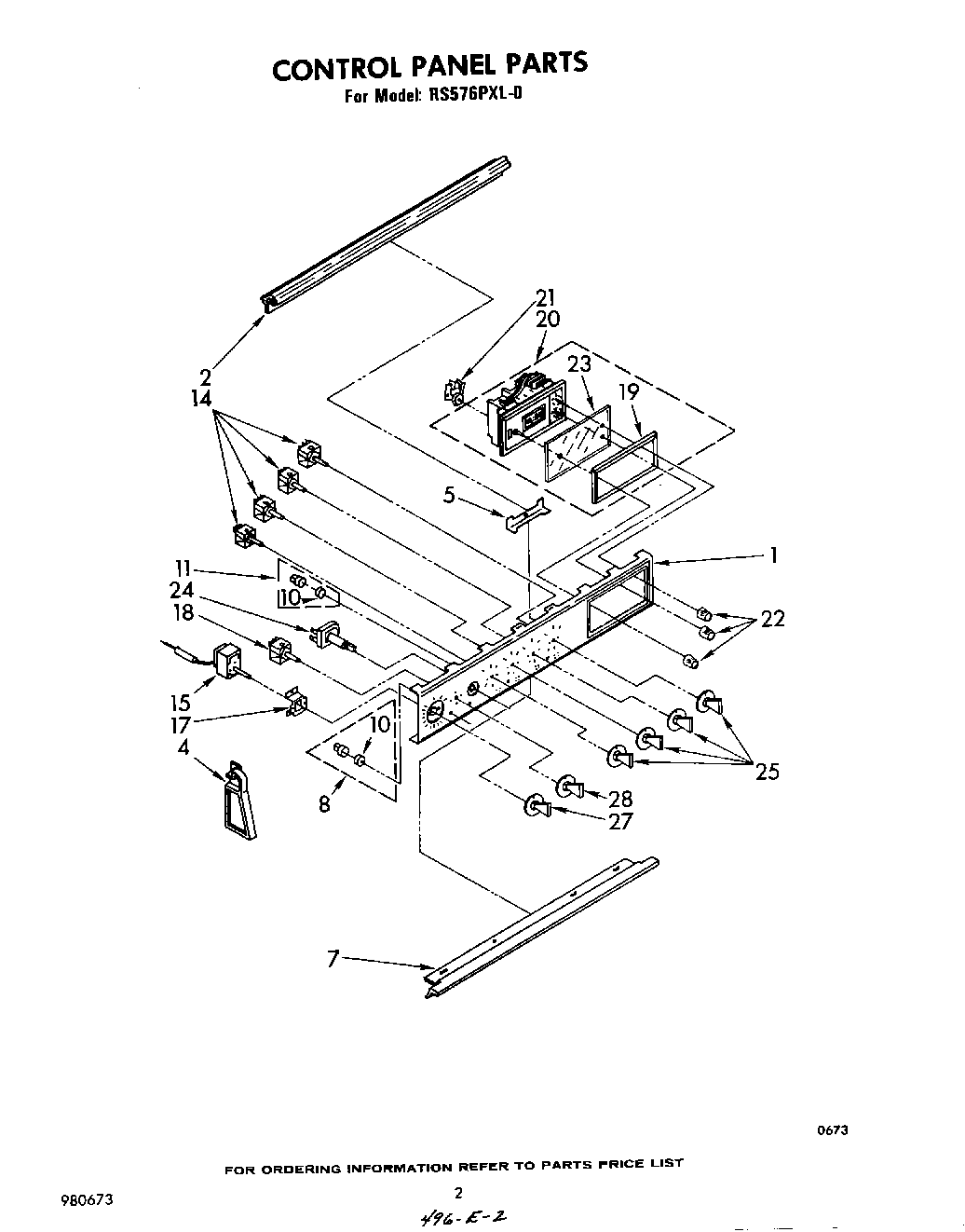

| 1 | Panel, Control |
| 2 | Rail, Control Panel (Bottom) |
| 2 | Rail, Control Panel (Top) |
| 4 | End Cap L.H. |
| 4 | End Cap R.H. |
| 5 | Bracket, Control Panel (Upper) |
| 5 | Bracket, Control Panel (Lower) |
| 5 | Screw, 8-32 x 3/8 (2) |
| 7 | Deflector, Heat |
| 7 | Washer, Flat (4) |
| 7 | W11693756 Whirlpool Screw Assembly |
| 8 | Light, Pilot (125 V) (Surface Unit) |
| 10 | Lens, Pilot Light (2) |
| 11 | Light Indicator (Oven) |
| 14 | W10900107 Whirlpool Oven Surface Element Switch |
| 15 | Thermostat |
| 17 | Bracket, Thermostat Mounting |
| 18 | Switch, Oven Selector |
| 18 | WPL 486525 |
| 19 | WPL 834764 |
| 20 | Timer, Range (Includes Illus. 21 & 22) |
| 21 | WPL 866403 |
| 22 | WPL 241383 |
| 23 | Glass, Clock |
| 24 | Switch, Oven Light |
| 24 | WPL 98754 |
| 24 | Nut, 3/8-27 |
| 25 | Knob, Control (2) (Oven Selector & Thermostat) |
| 27 | WPL 868997 |
| 28 | WPL 868998 |
