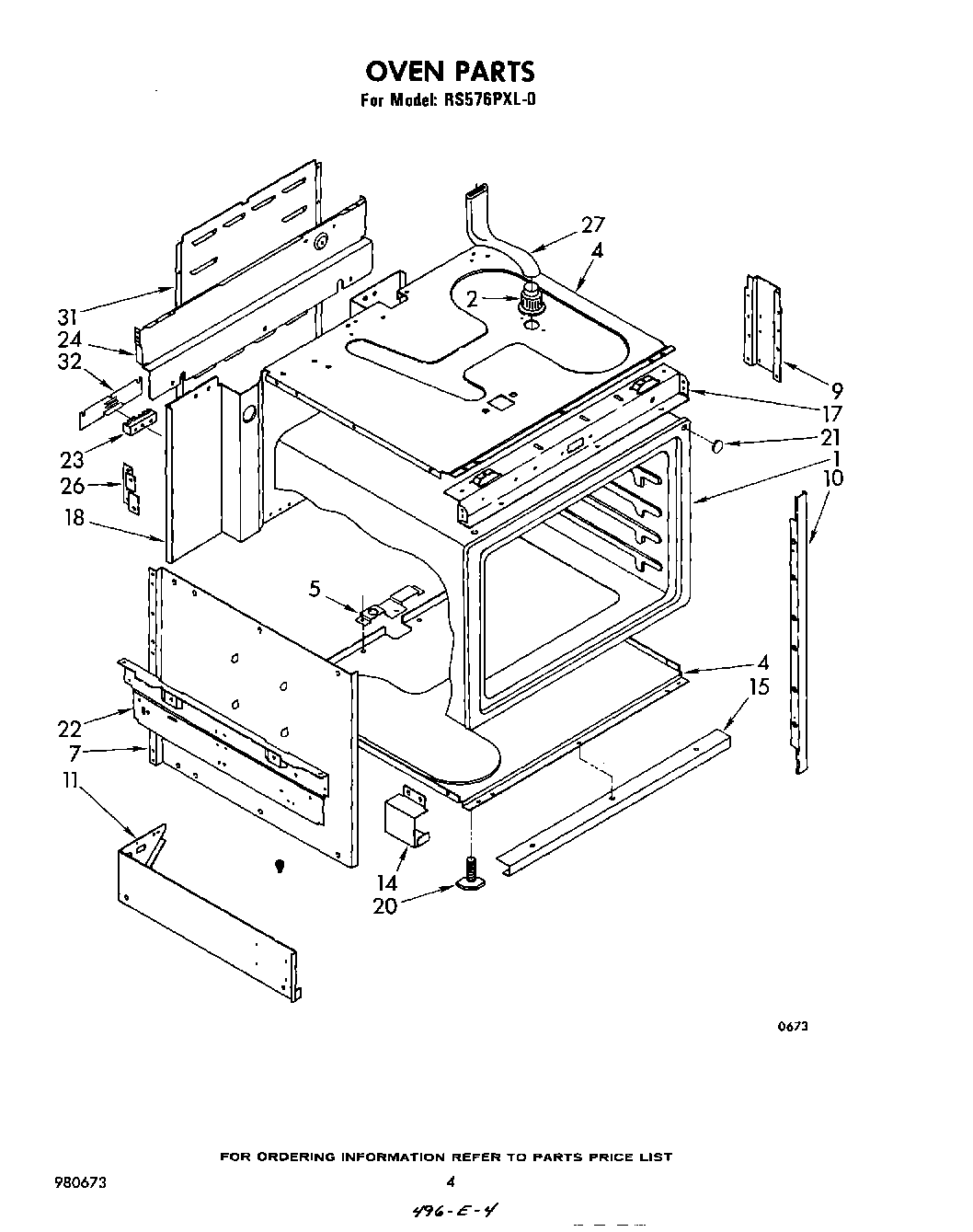

RS576PXL0 03 – OVEN

RS576PXL0 03 – OVEN

Written by

in

RS576PXL0 03 – OVEN

Products

Position	Product
1	Rail, Drawer (R.H.)
2	Screw, 10-24 x 3/8 (2)
2	Vent Tube (Alternate)
2	Vent Tube (Alternate)
4	Retainer, Insulation (Top)
5	Bracket, Conduit
7	Retainer, Insulation Side (2)
9	Support, Front (2)
10	Trim, Oven (Front) (2)
11	Side Panel (Lower) (Left Side)
11	Side Panel (Lower) (Right Side)
14	Shield, Toe (2)
15	Channel, Oven Support (Lower)
17	Bracket, Cooktop
18	Back, Range (Lower)
20	Leg Leveler (4)
21	Button, Plug
22	Panel Side, Upper (2)
23	WP8203546 Whirlpool Terminal Block
23	Washer (Ground) (3)
23	Hex Nut, 10-32 (6)
23	WPL 834649
24	Back, Range (Upper)
26	Bracket, Support (Right Side)
26	Bracket, Support (Left Side)
27	Tube, Oven Vent (Upper)
31	Screw, 10-24 x 1/2 (3)
31	Washer (3)
31	Cover Wiring, Low
32	Cover
