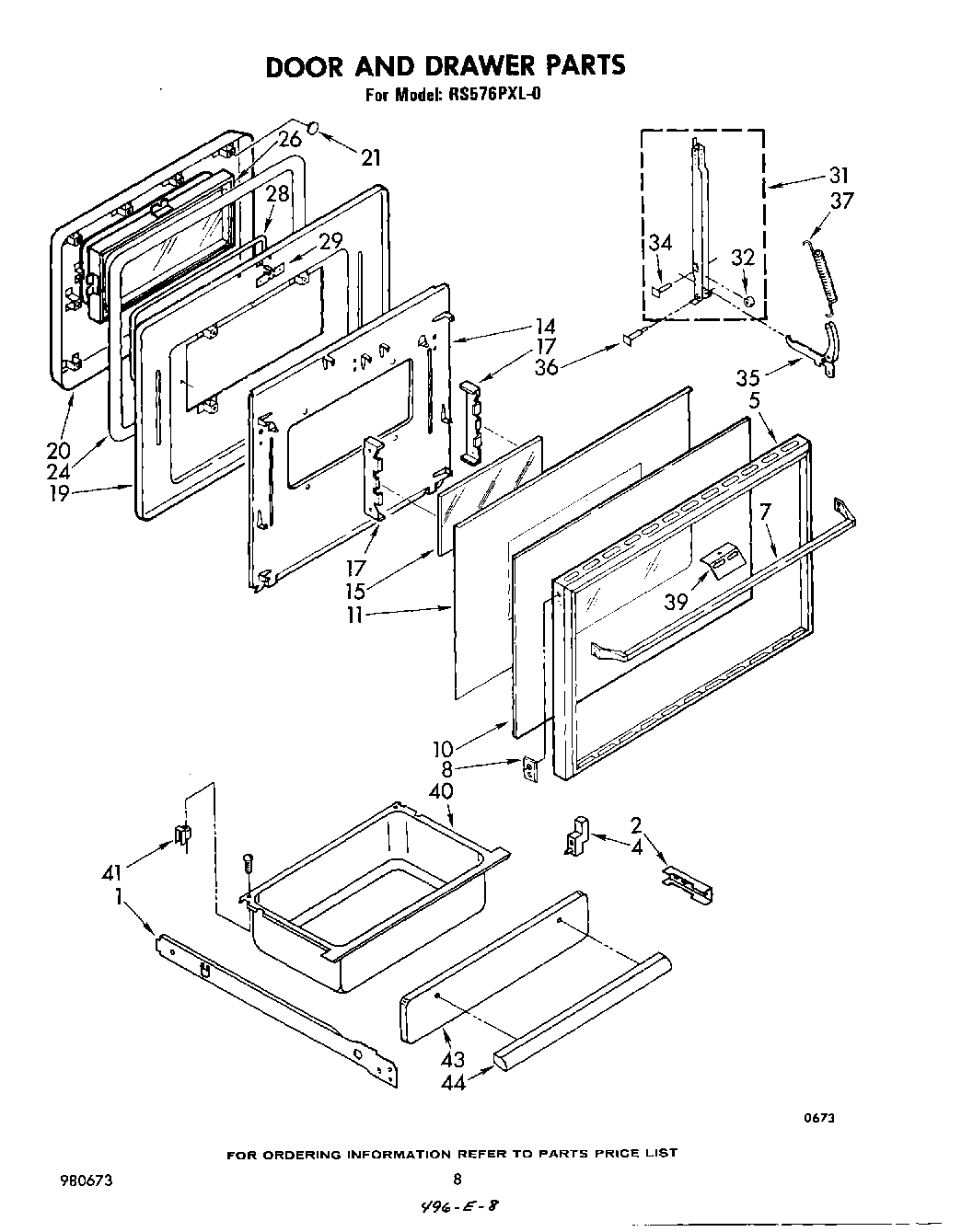

RS576PXL0 05 – DOOR AND DRAWER

Products

PositionProduct
1Rail, Drawer (Right Side)
1Rail, Drawer (Left Side)
2Spacer, Drawer Rail (2)
4Guide, Drawer (Front)
4WPL 834649
5Frame, Oven Door
7Handle, Door
8Trim, Frame (2)
8Screw, 6-32 x 3/8 (4)
8Nut
10Glass, Outer (Black)
11Panel, Heat Reflector
14Panel, Airwash
14340184 Whirlpool Screw
15Glass, Inner
17Retainer, Glass
19Liner, Oven Door
20Baffle
21Plug Button 3/16“ (2)
24Seal, Oven Door
26Window Assembly
28Seal, Window
29Screw 10-24 x 1/2
29Strike
31Channel Assembly
31Screw
32Washer (2)
32Roller, Stop (2)
34Rivet (2)
35Arm Assembly (2)
36Pin, Hinge (2)
37Spring, Door (2)
39WPL 877715
40Drawer Assembly
40Nut, 10-24 (2)
41Guide, Drawer
41Screw, 10-24 x 1/2 (3)
43Panel, Drawer Black
44Handle, Drawer
44Screw, 10-24 x 3/8
