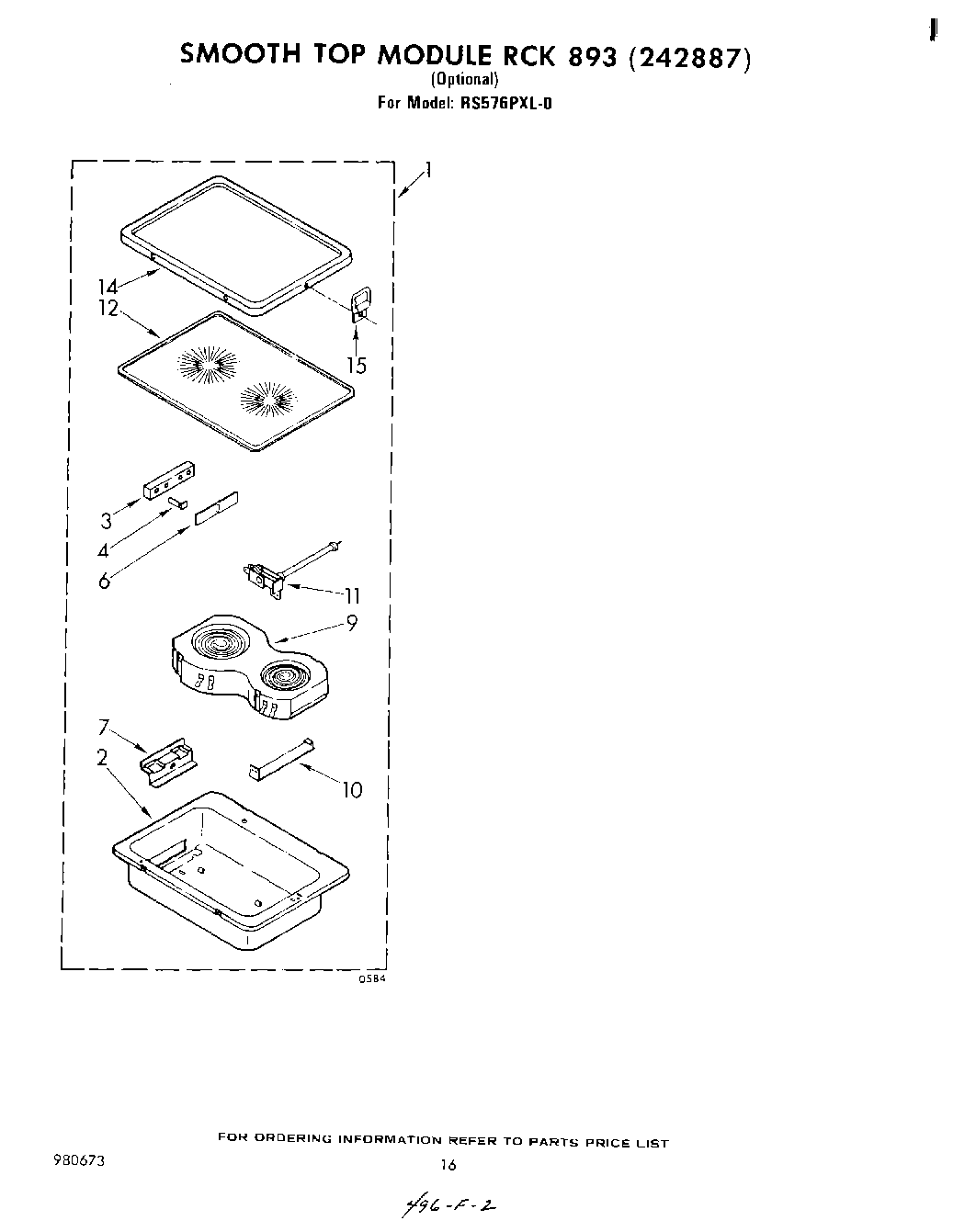

RS576PXL0 12 – SMOOTH TOP RCK 893 (242887)

Products

Position	Product
1	Smooth Top Module, Complete
2	Pan, Surface Unit
3	Receptacle, Male
4	WPL 486525
4	Terminal, Male (4)
6	Insulator, Receptacle
7	Pushnut, 1/8
7	Bracket, Ground
9	Unit, Assembly
10	Bracket (2)
11	Limit, Control (Long)
11	Limit, Control (Short)
12	Cooktop, Glass
14	Frame, Cooktop
14	Hinge, Oven Door (Auxiliary) (Screw, 8-32 x 3/8 (2) (Top))
15	Handle, Cooktop
15	WP486754 Whirlpool Compactor Screw
