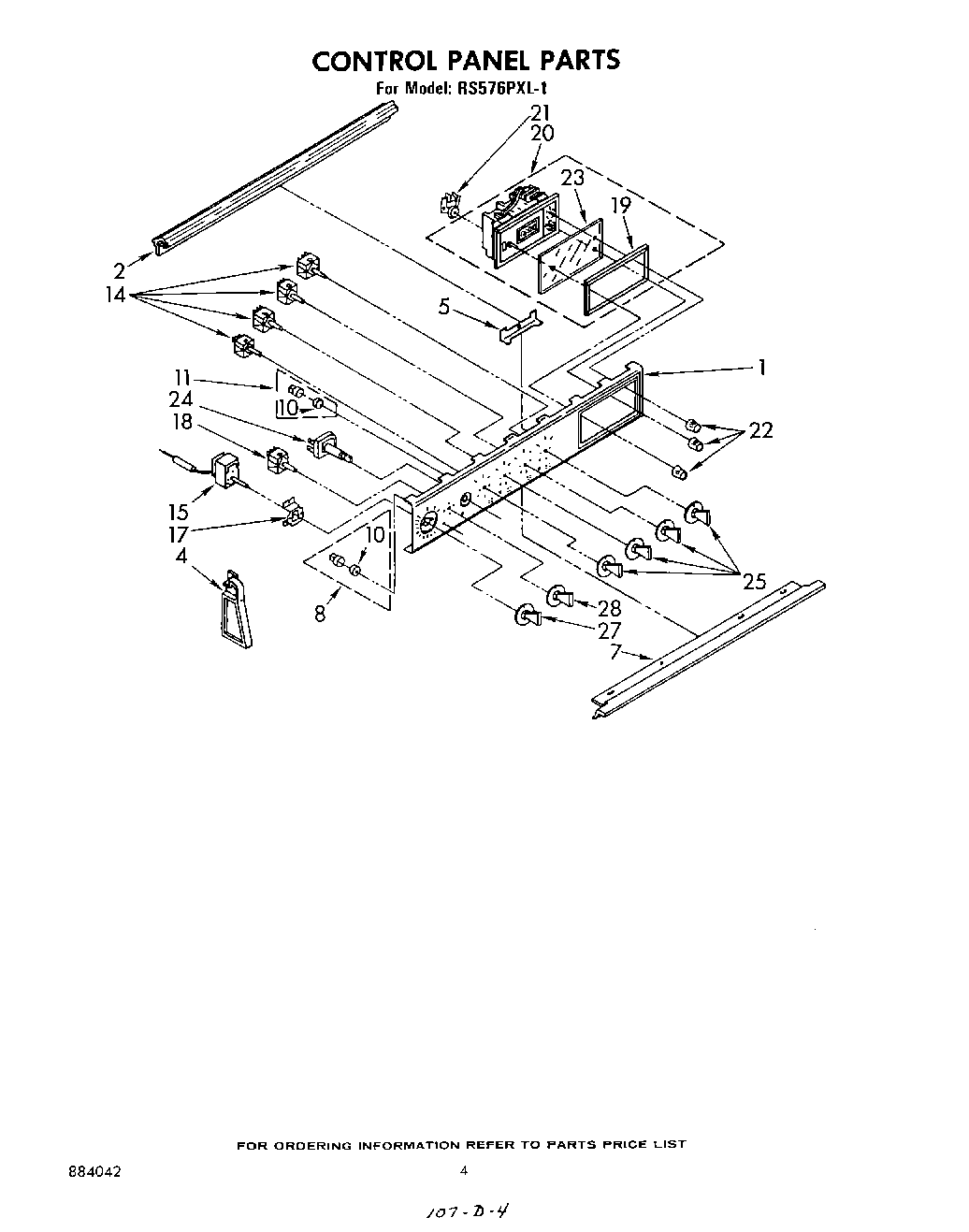

RS576PXL1 03 – CONTROL PANEL

Products

Position	Product
1	Panel, Control
2	Rail, Control Panel (Top)
2	Rail, Control Panel (Bottom)
4	End Cap R.H.
4	End Cap L.H.
5	Screw, 8-32 x 3/8 (2)
5	Bracket, Control Panel (Lower)
5	Bracket, Control Panel (Upper)
7	Washer, Flat (4)
7	W11693756 Whirlpool Screw Assembly
7	Deflector, Heat
8	Light, Pilot (125 V) (Surface Unit)
10	Lens, Pilot Light (2)
11	Light Indicator (Oven)
14	Switch, Infinite (4) (Screw, 8-32 x 3/16 (8))
14	W10900107 Whirlpool Oven Surface Element Switch
15	Thermostat
17	Bracket, Thermostat Mounting
18	Switch, Oven Selector
18	WPL 486525
19	WPL 834764
20	Timer, Range (Includes Illus. 21 & 22)
21	WPL 866403
22	WPL 241383
23	Glass, Clock
24	WPL 98754
24	Nut, 3/8-27
24	Switch, Oven Light
25	WPL 868299
27	WPL 868997
28	WPL 868998
