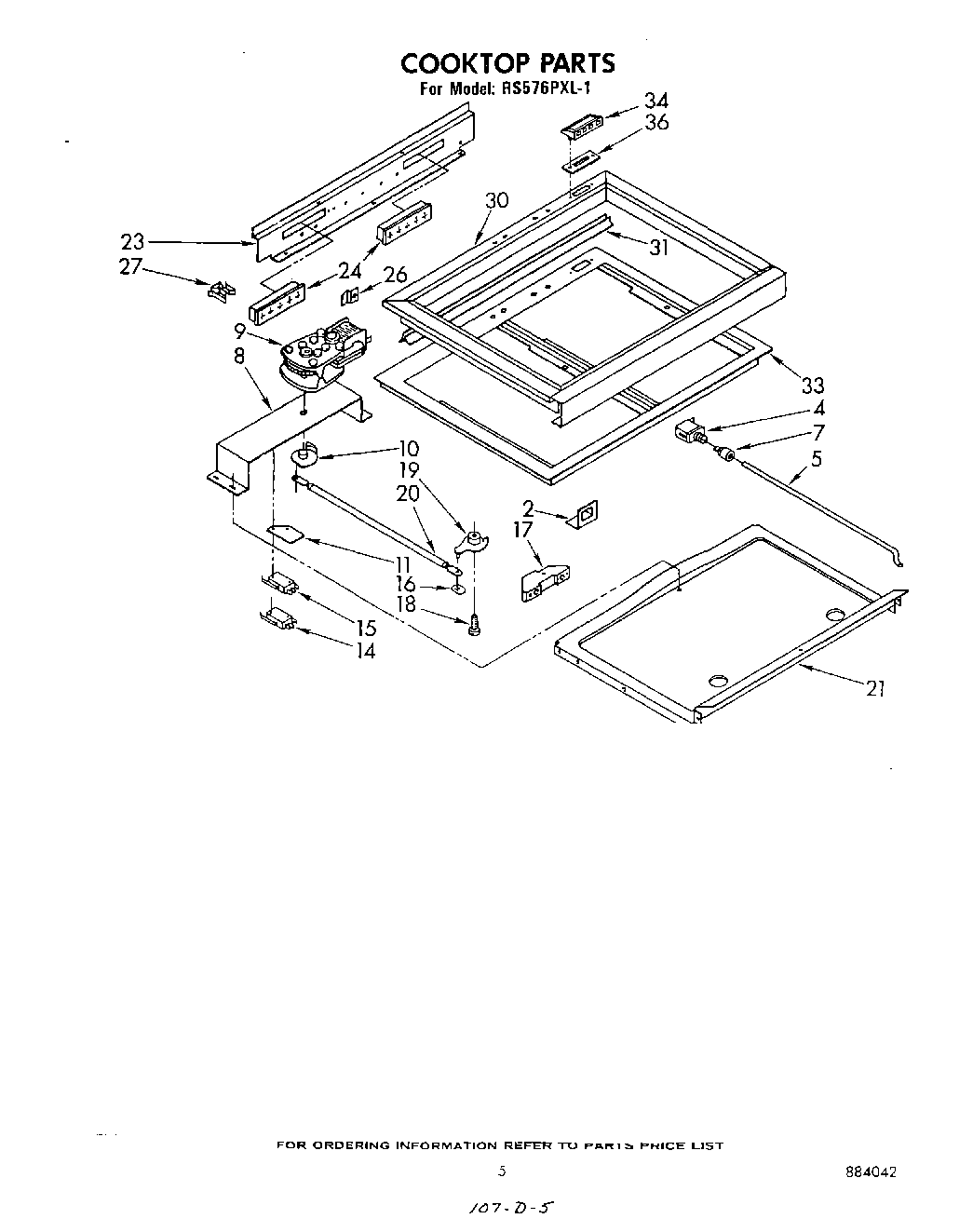

RS576PXL1 04 – COOK TOP

Products

Position	Product
2	Bracket, Door Switch
4	WP8283288 Whirlpool Door Switch
5	Push Rod, Switch
7	Rod End, Switch
8	Support, Latch Motor
9	motor, door latch (alternate)
9	WPL 273225
9	Motor (Alternate)
9	Motor (Alternate)
10	Cam, Door Latch (Alternate)
10	cam, door latch (alternate)
10	Cam, Door Latch (Pin, Spring)
11	Insulator, Limit Switch (3)
14	Switch, Lower Limit (Alternate)
14	Switch, Lower Limit (2) (Alternate)
14	Switch, Lower Limit (2) (Alternate)
14	Switch, Lower Limit (2) (Alternate)
15	Switch, Upper Limit (Screw, 4-40 x 1-1/4 (2))
15	Switch, Upper Limit (Alternate)
15	Switch, Upper Limit (Alternate)
15	Switch, Upper Limit (Alternate)
15	Switch, Upper Limit (Alternate)
17	Housing, Latch
17	Washer (2)
18	Axle, Latch
19	alternate
19	Latch, Door
19	Pushnut, 1/4
20	Tie Bar
20	Cam, Door Latch (Pushnut, 3/16“)
21	Panel, Subtop
23	WP486579 Whirlpool Air Conditioner Screw
23	Shield, Wire
23	Screw, 10-24 x 1/2 (3)
24	Receptacle, Female (2)
26	Bracket, Thermo Bulb
26	Clip, Receptacle (4)
27	Terminal, Female (10)
30	Frame, Cooktop
31	WPL 866454
33	Screw 10-24 x 1/2
33	Cooktop, Modular
33	WPL 868959
34	WPL 877765
36	WPL 877733
36	WPL 877732
