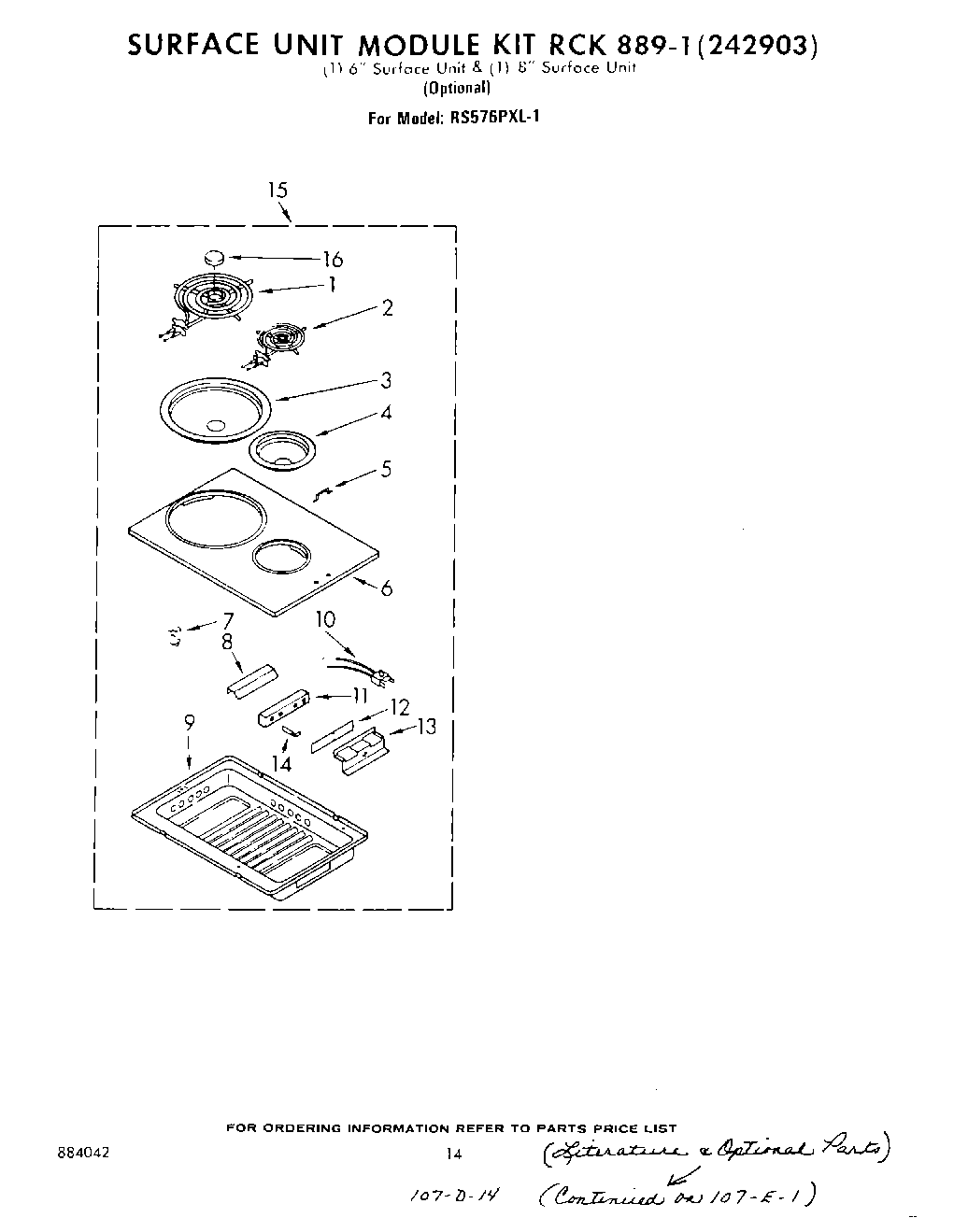

RS576PXL1 12 – SURFACE UNIT 889-1 (242903) , LITERATURE

Products

Position	Product
1	WP660533 Whirlpool Oven 8" Surface Element
2	WP660532 Whirlpool Oven Surface Element
3	DRIP BOWL 8" W/HOLE CHROME
4	WPW10196406 Whirlpool 6" Chrome Drip Bowl
5	Handle, Cooktop
6	Cooktop (6“/8“)
6	Hinge, Oven Door (Auxiliary) (Screw, 8-32 x 3/8 (2) (Top))
7	Clamp, Wire
8	Shield, Wire
9	Pan, Surface Unit Modular
10	BURNER RECEPTACLE KIT
11	Receptacle, Male
11	WPL 486525
12	Insulator, Receptacle
13	WP486754 Whirlpool Compactor Screw
13	Bracket, Ground
13	Pushnut, 1/8
14	Terminal, Male (4)
15	WPL 242903
16	paint, spray 13 oz. (coffee)
16	Grease
16	WPL 308500
16	WPL 834470
16	Leveler (Thinner) (2oz.)
16	Enamel, New Avocado (1 Qt. Uncut)
16	Enamel, Coffee (1 Qt. Uncut)
16	WPL 884042
16	Touch-Up C
16	WPL 868522
16	WPL 877751
16	WPL 877750
16	WPL 877707
16	350930 Whirlpool White Spray Paint
16	WPL 834469
16	1
16	Wire (14 Ga. 200 c Brown)
16	FOIL, ALUMINUM OVEN (18“ X 25 )
16	WPW10208653 Whirlpool Insulation
16	WPL 799832
16	511873 Whirlpool Refrigerator Paint
16	350942 Whirlpool Spray Paint
16	Golden Harvest (Uncut)
16	Golden Harvest
16	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
16	Almond (Uncut)
16	WP72107 Whirlpool Touchup
16	799344 Whirlpool Refrigerator Paint
16	72017 Whirlpool Appliance Touch-Up Paint White
16	Wire, 25` Roll (Black 14 Ga.)
16	Wire, 25` Roll (Red 14 Ga.)
16	Wire, 25“ Roll (White 14 GA.)
16	18 Ga. 80~c Rating (Red)
16	Wire (12 Ga. 150 c Black)
16	Wire (14 Ga. 150 c Yellow)
16	Wire (14 Ga. 150 c Orange)
16	Wire (14 Ga. 150 c Green)
16	Wire (14 Ga. 150 c Brown)
16	Wire (14 Ga. 150 c Blue)
16	242831 Whirlpool Oven Wire
16	Paint, Spray 13 Oz. (Avocado)
16	Paint, Touch-Up 1/2 Oz. (Coffee)
16	72109 Whirlpool Dacor Avocado Touch-Up Paint
16	285006 Whirlpool Spray
16	350956 Whirlpool Spray Assembly
