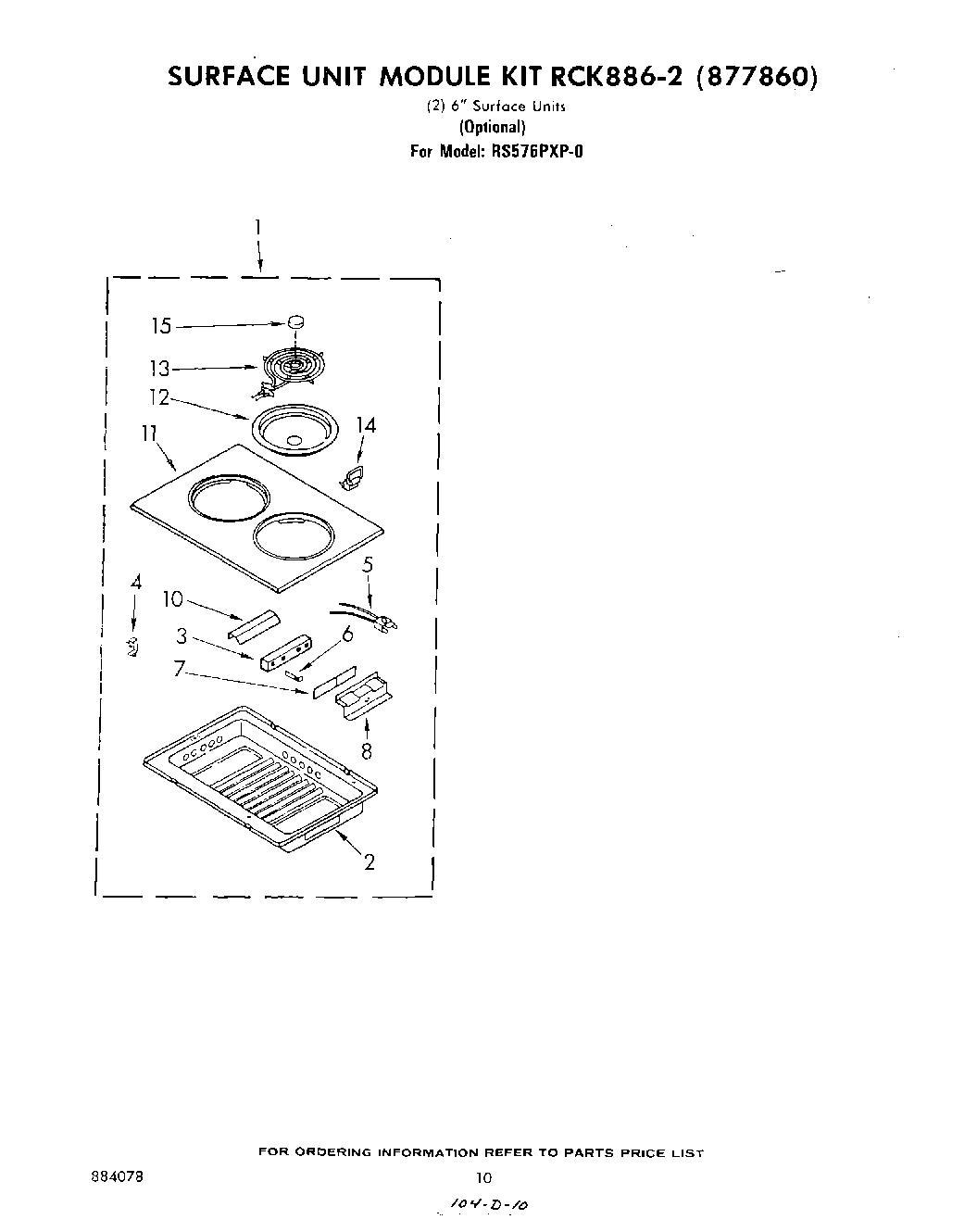

RS576PXP0 08 – SURFACE UNIT MODULE KITadmin2025-04-26T12:48:30+00:00RS576PXP0 08 – SURFACE UNIT MODULE KIT
Products
| Position | Product |
|---|
| 1 | Displ |
| 2 | Pan, Surface Unit Modular |
| 3 | Receptacle, Male |
| 4 | Clamp, Wire |
| 5 | BURNER RECEPTACLE KIT |
| 6 | WPL 486525 |
| 6 | Terminal, Male (4) |
| 7 | Insulator, Receptacle |
| 8 | Bracket, Ground |
| 8 | Pushnut, 1/8 |
| 10 | Shield, Wire |
| 11 | Hinge, Oven Door (Auxiliary) (Screw, 8-32 x 3/8 (2) (Top)) |
| 11 | COOKTOP, SURFACE UNIT Unit (1) |
| 11 | WP486754 Whirlpool Compactor Screw |
| 12 | WPW10196406 Whirlpool 6" Chrome Drip Bowl |
| 13 | WP660532 Whirlpool Oven Surface Element |
| 14 | Handle, Cooktop |
| 15 | WPL 868522 |
