RS576PXP1 03 – CONTROL PANEL

RS576PXP1 03 – CONTROL PANEL

Written by

in

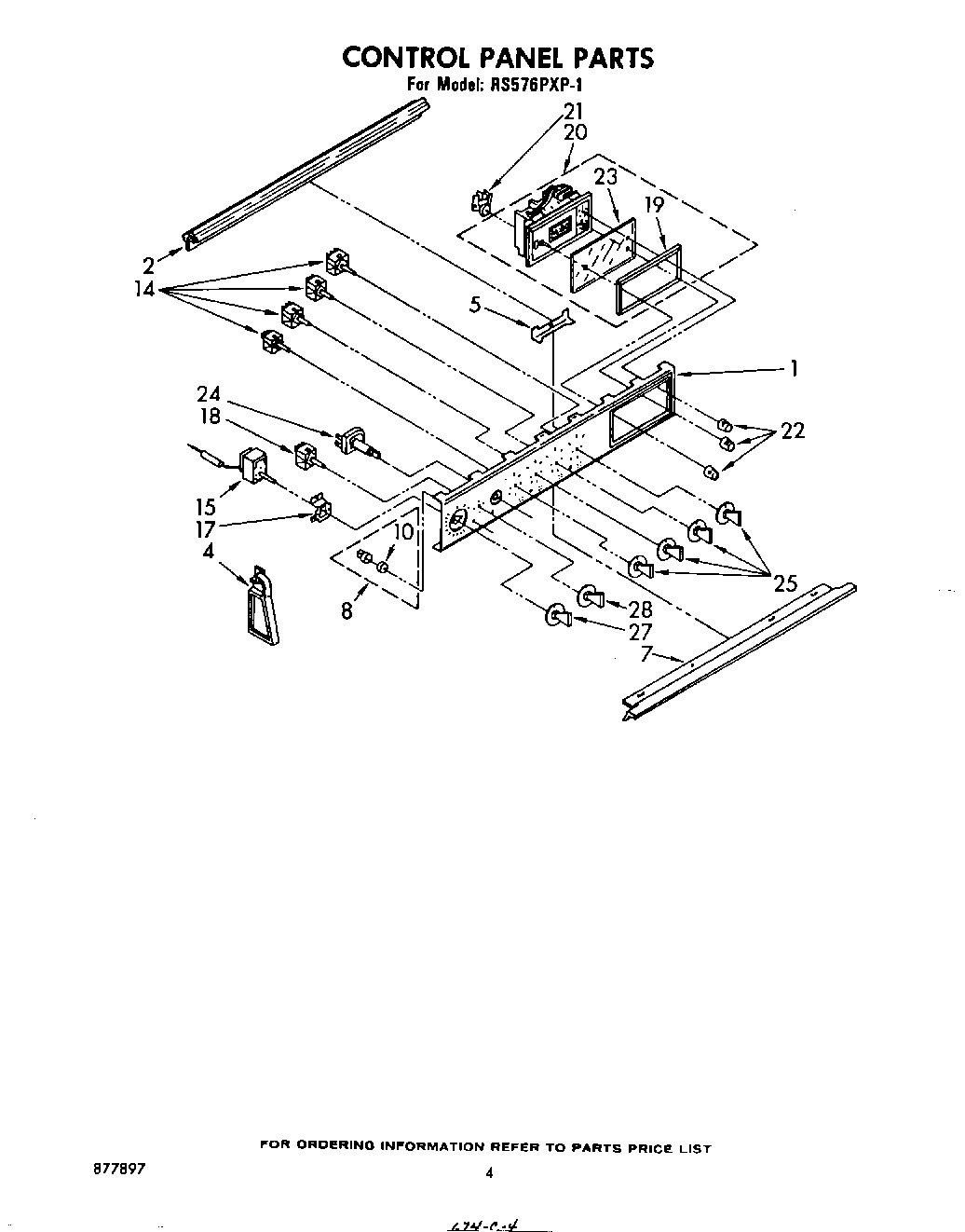

RS576PXP1 03 – CONTROL PANEL

Products

PositionProduct
1Panel, Control
2Rail, Control Panel (Top)
2Rail, Control Panel (Bottom)
4End Cap L.H.
4End Cap R.H.
5Screw, 8-32 x 3/8 (2)
5Bracket, Control Panel (Upper)
5Bracket, Control Panel (Lower)
7Washer, Flat (4)
7W11693756 Whirlpool Screw Assembly
7Deflector, Heat
8Light, Indicator (125V) (Right Module, Left Module, Oven Clean)
8Light, Indicator (Lock, Oven)
10Lens, Pilot Light (2)
14W10900107 Whirlpool Oven Surface Element Switch
15Thermostat
17Bracket, Thermostat Mounting
18WPL 486525
18Switch, Selector (Main Oven)
19WPL 834764
20Timer, Range (Includes Illus. 21 & 22)
21WPL 866403
22WPL 241383
23Glass, Clock
24Switch, Oven Light
24WPL 98754
24Nut, 3/8-27
25Control Knob (4) (Surface Unit)
27WPL 868997
28WPL 868998
