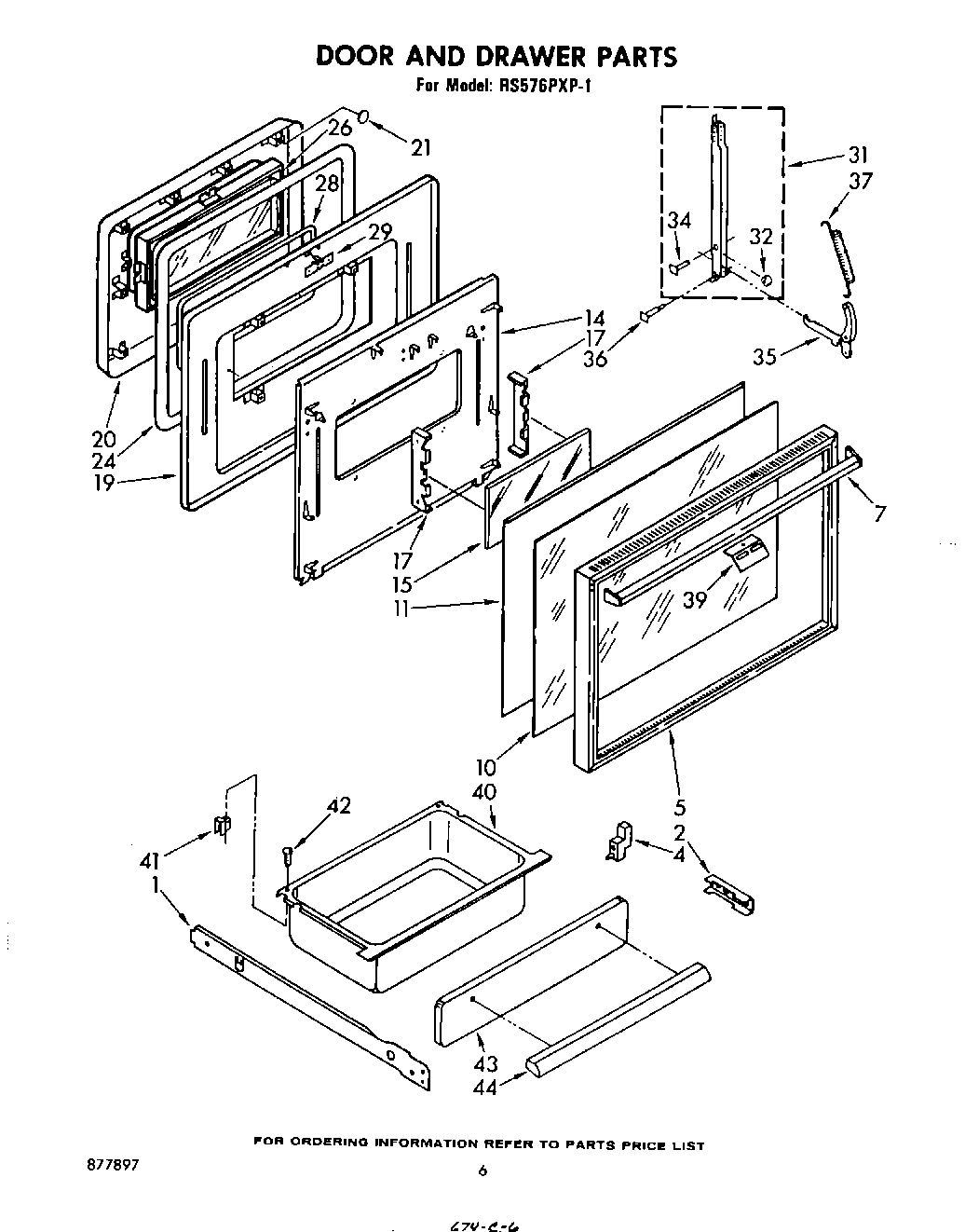

RS576PXP1 05 – DOOR AND DRAWER

RS576PXP1 05 – DOOR AND DRAWER

Written by

in

RS576PXP1 05 – DOOR AND DRAWER

Products

Position	Product
1	Rail, Drawer (Left Side)
1	Rail, Drawer (Right Side)
2	Spacer, Drawer Rail (2)
4	Guide, Drawer (Front)
4	WPL 834649
5	Frame, Oven Door
7	Screw, 6-32 x 1/2 (4)
7	Handle, Door
10	Glass, Outer (Black)
11	Panel, Heat Reflector
14	340184 Whirlpool Screw
14	Panel, Airwash
15	Glass, Inner
17	Retainer, Glass
19	Liner, Oven Door
20	Baffle
21	Plug Button 3/16“ (2)
24	Seal, Oven Door
26	Window Assembly
28	Seal, Window
29	Screw 10-24 x 1/2
29	Strike
31	Screw
31	Channel Assembly
32	Washer (2)
32	Roller, Stop (2)
34	Rivet (2)
35	Arm Assembly (2)
36	Pin, Hinge (2)
37	Spring, Door (2)
39	W11693756 Whirlpool Screw Assembly
39	WPL 877715
40	Drawer Assembly
40	Nut, 10-24 (2)
41	Guide, Drawer
42	Screw, 10-24 x 1/2 (3)
43	Panel, Drawer Black
44	Handle, Drawer
44	WPL 877903
